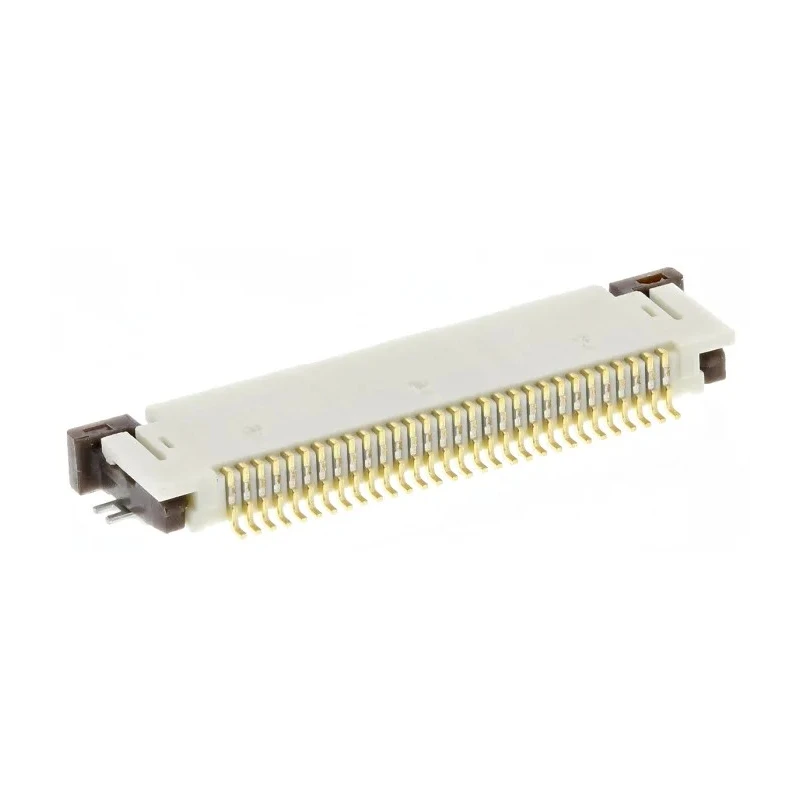

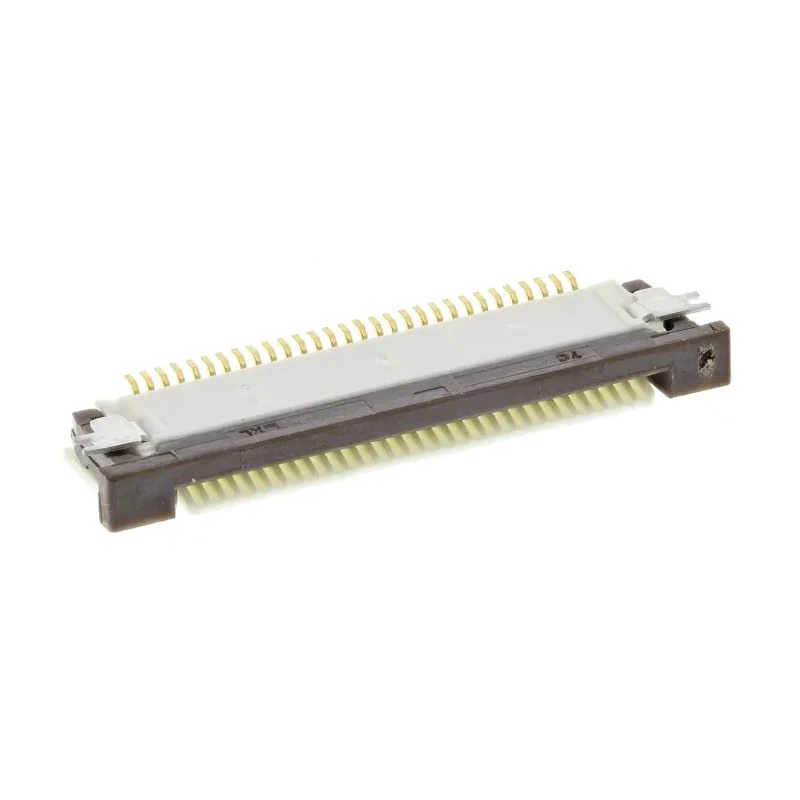

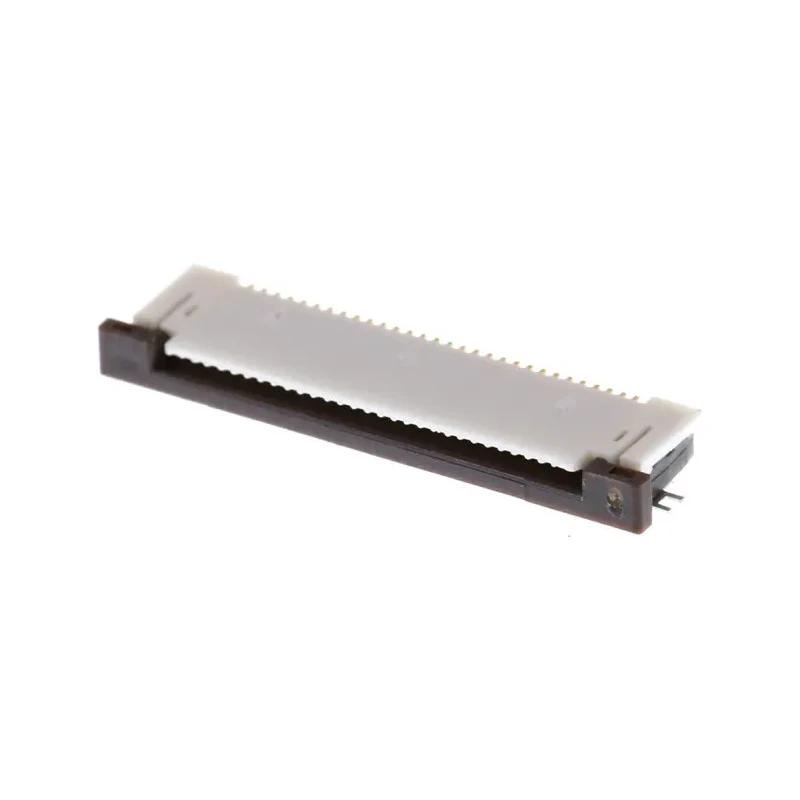

Molex 0.5 mm Pitch 30 Way Right Angle Female FPC Connector, Solder 54104-3031

The Molex 54104-3031 is a 30 Way Right Angle Female FPC (Flexible Printed Circuit) Connector with a 0.5 mm pitch, designed for surface mounting with solder termination. This connector is part of the Molex Easy-On series, featuring a corrosion-resistant nylon housing that offers safety in moist environments and flame-retardant properties to reduce fire risks.

The gold over nickel contact plating ensures excellent electrical conductivity and longevity. The connector includes a slide type actuator that allows Zero Insertion Force (ZIF) and secure contact retention, designed to move with the cable when pulled, maintaining reliable electrical connection.

Its right angle orientation with top contact position optimizes use of PCB space and the solder tabs provide robust mechanical retention and strain relief. Suitable for use in industrial, automotive, medical, consumer electronics, and telecommunications applications including tablets, notebooks, GPS devices, and smartphones.

The connector operates reliably within a temperature range of -20°C to 85°C and supports currents up to 500 mA at voltages up to 50 V, making it suitable for moderate power electronic applications. The polarized design ensures correct mating with the mating PCB sockets to avoid connection errors.

Corrosion-resistant nylon housing for moist environments. Gold-plated contacts for optimal electrical conductivity. ZIF slide actuator for easy insertion and secure connection. Right angle design with top contact position.

Solder tabs provide PCB retention and strain relief. Rated for 500 mA current and 50 V voltage. Temperature range: -20°C to 85°C. Polarized to ensure correct mating.

Ideal for demanding applications in automotive navigation, medical technology, consumer electronics, and telecommunications equipment where reliable, compact, and high-density interconnections are essential.
