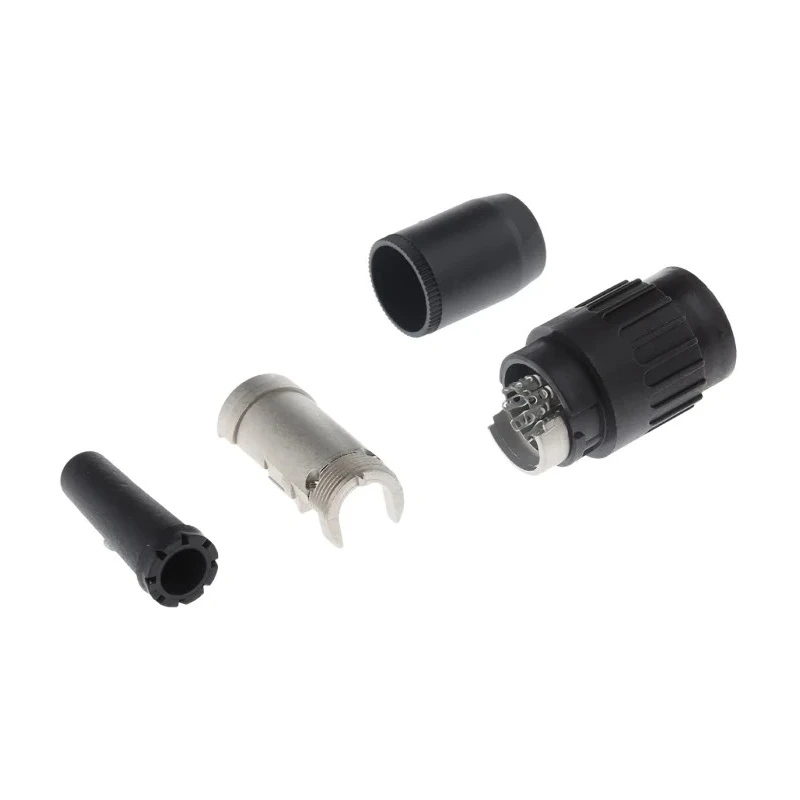

Amphenol Industrial 8 Pole Straight M16 DIN Socket Cable Female Screw Mating 5A 100V AC IP40 T3528501

Amphenol Industrial T3528501 is an 8 Pole Straight M16 DIN Socket connector designed specifically for cable mounting. This female connector features a screw mating type and straight orientation, rated to operate at 5A current and 100V ac voltage with an IP40 ingress protection rating. The housing is made of durable brass material while the contacts are silver plated ensuring excellent conductivity and corrosion resistance.

This connector complies with the DIN 45326 standard and forms part of the C 091 B series, recognized for reliable industrial circular connectors. The termination is a solder bucket style, providing solid and permanent electrical connections. It supports operating temperatures ranging from -40°C minimum to 100°C maximum, making it suitable for various industrial environments.

The physical dimensions of the connector include a length of 68mm and diameter of 20mm. Cable strain relief is provided via an internal screw cable clamp combined with a rubber boot, accommodating cable diameters up to 6mm. It is designed to mate only with compatible cable plugs for establishing in-line connections.

Industrial use cases for this DIN Socket include electronics manufacturing, electrical installations, machinery wiring, and signal transmission where robust and secure cable connections are required. Its IP40 rating ensures protection against solid ingress while maintaining ease of installation.

Amphenol Industrial as a brand stands for high-quality industrial electronic connectors, widely used across manufacturing, HVAC, construction, and laboratory applications. This model T3528501 offers dependable performance for demanding electrical connector needs.

Features an 8-pole configuration suitable for cable mounting applications. Constructed with a brass housing and silver-plated contacts for durability and corrosion resistance. Provides IP40 ingress protection ensuring partial protection against solid objects.

Termination type is solder bucket for reliable electrical connections. Supports operating temperatures from -40°C to 100°C. Connector gender is female with screw mating type and straight orientation. Complies with DIN 45326 standard for industrial circular connectors.

Length measures 68mm with a diameter of 20mm. Designed for industrial, electronics, and electrical applications requiring robust cable connections. Manufactured in China with a model series of C 091 B. Browse more connectors and industrial components at EnvMart for comprehensive electrical and electronics solutions.
