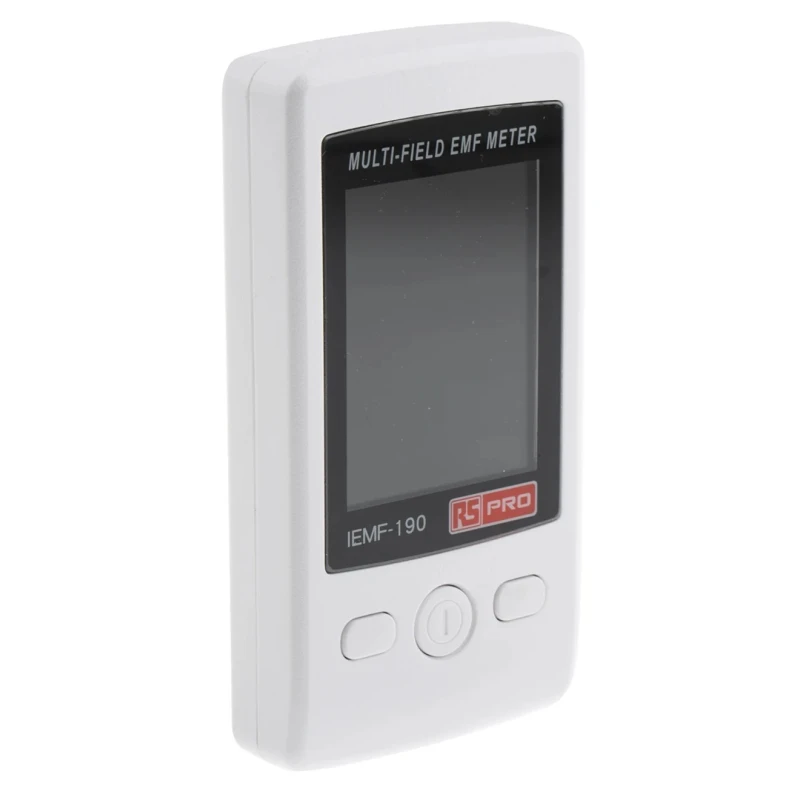

RS PRO Handheld Gaussmeter Battery and Mains Powered 50 Hz 60 Hz 124-0939

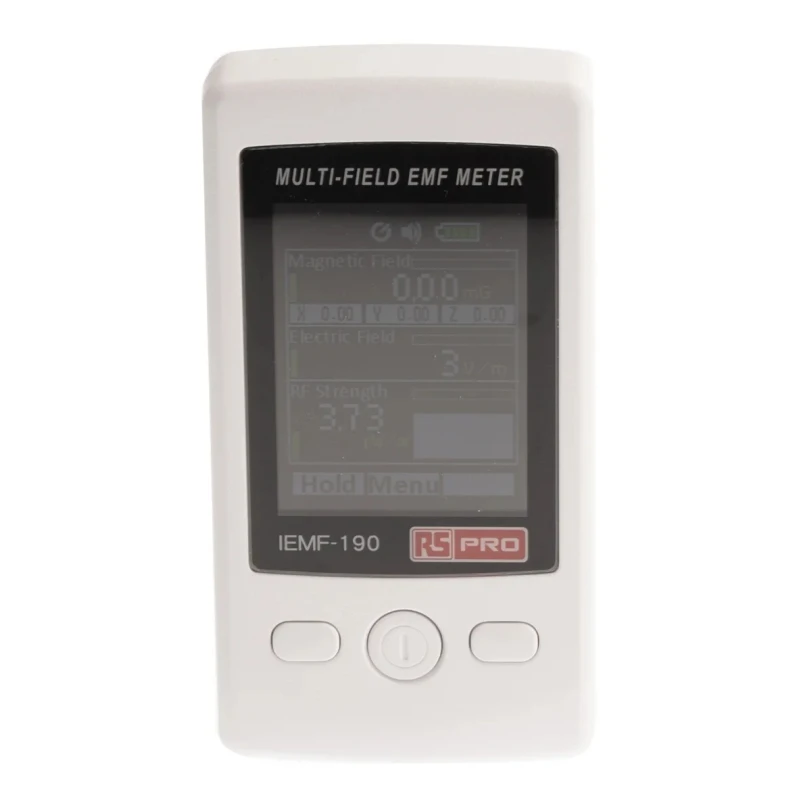

RS PRO 124-0939 is a high-precision handheld Gaussmeter designed for industrial and laboratory applications requiring accurate measurement of magnetic fields in the frequency range of 50 Hz to 60 Hz. This compact instrument can be powered using either batteries or an external mains supply. Its versatile measurement capabilities include electromagnetic fields (3-axis), electric fields, and RF strength fields, all displayed simultaneously on a 2.4-inch color TFT LCD screen providing clear, real-time readings.

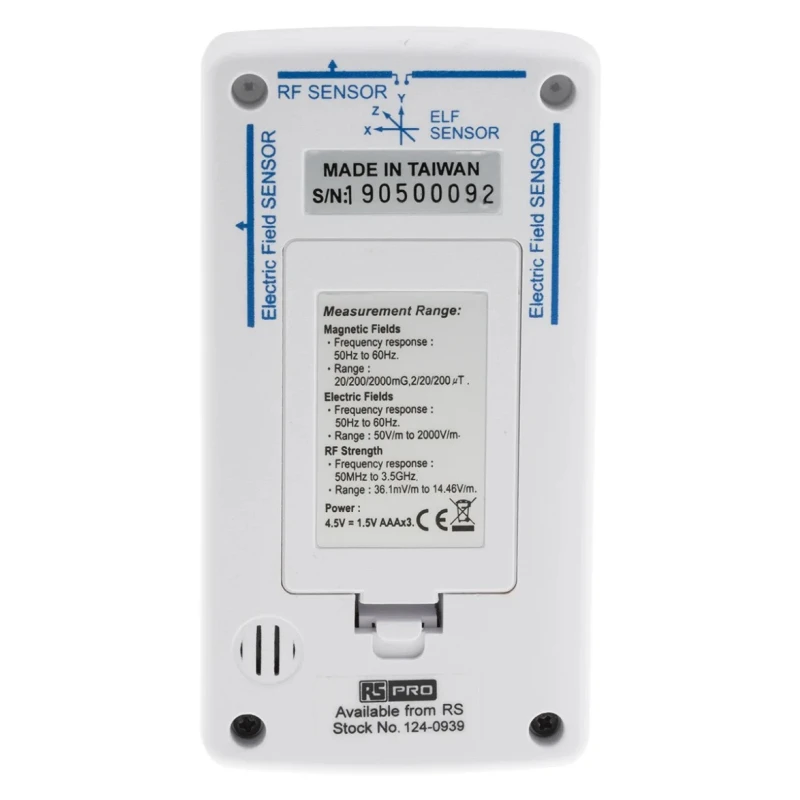

This meter is built with three individual aerial sensors, enabling overload indication and measurement across X, Y, and Z axes. Its ergonomic design weighs only 120 grams, facilitating ease of transport and on-site usage. Operating temperature specifications range from 5°C to 40°C, suitable for diverse environmental conditions.

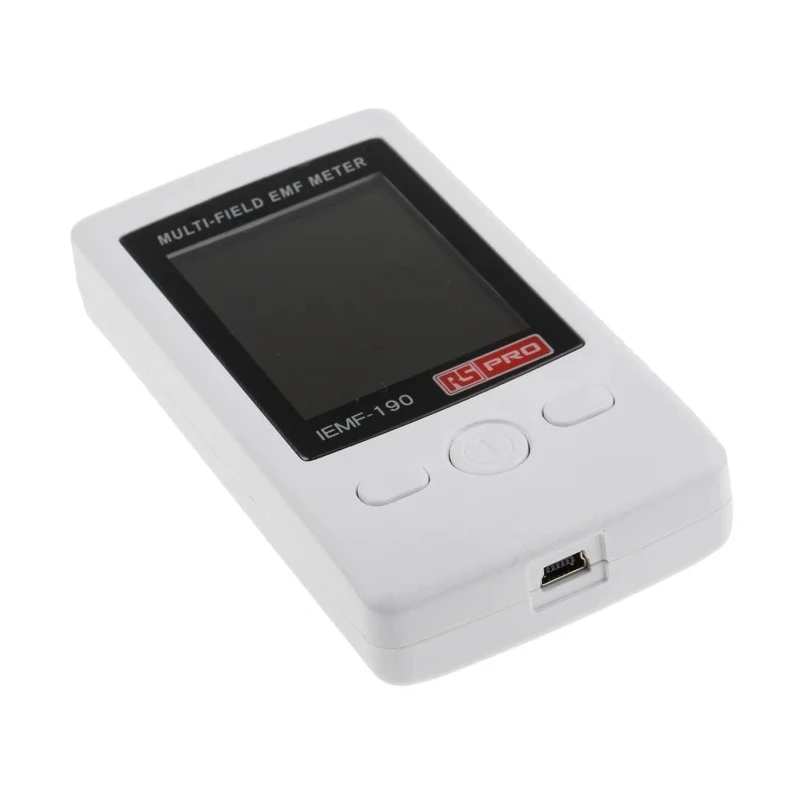

The gaussmeter offers precise resolution down to 0.01 μT or 0.01 mG, with an accuracy rating of ±15% plus 100 digits, supporting measurements from a minimum magnetic value of 0.02 μT up to a maximum of 2000 mg. Connectivity is enabled through a USB Mini-B interface, allowing for data export and analysis.

The device supports language options including English, Traditional Chinese, Simplified Chinese, Japanese, and Spanish, accommodating a wide user base. Typical applications include measuring fields around electric transmission equipment, power lines, household appliances such as air conditioners and refrigerators, as well as computer monitors and audio/video devices.

Measures electromagnetic, electric, and RF strength fields simultaneously. Battery or mains powered with USB Mini-B connectivity. Compact, lightweight at 120g with easy portability. Multi-language interface for diverse usability.

Suitable for industrial, laboratory, HVAC, and commercial electromagnetic testing.

The package includes three AAA 1.5V batteries and a user manual in English. Originating from Taiwan, Province Of China, the RS PRO 124-0939 Gaussmeter represents a reliable instrument for precision magnetic field measurement and compliance testing.
