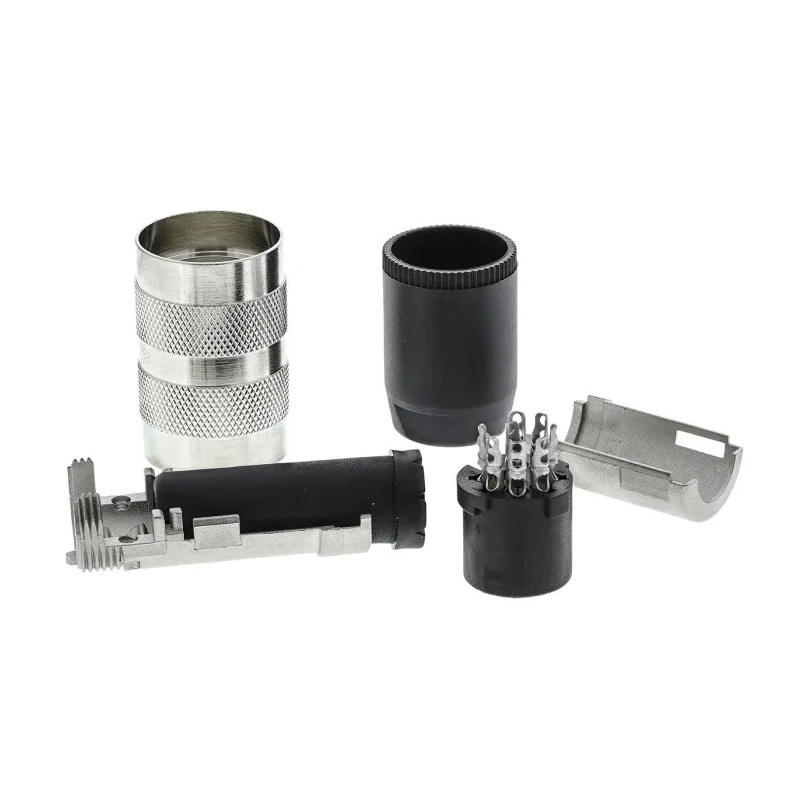

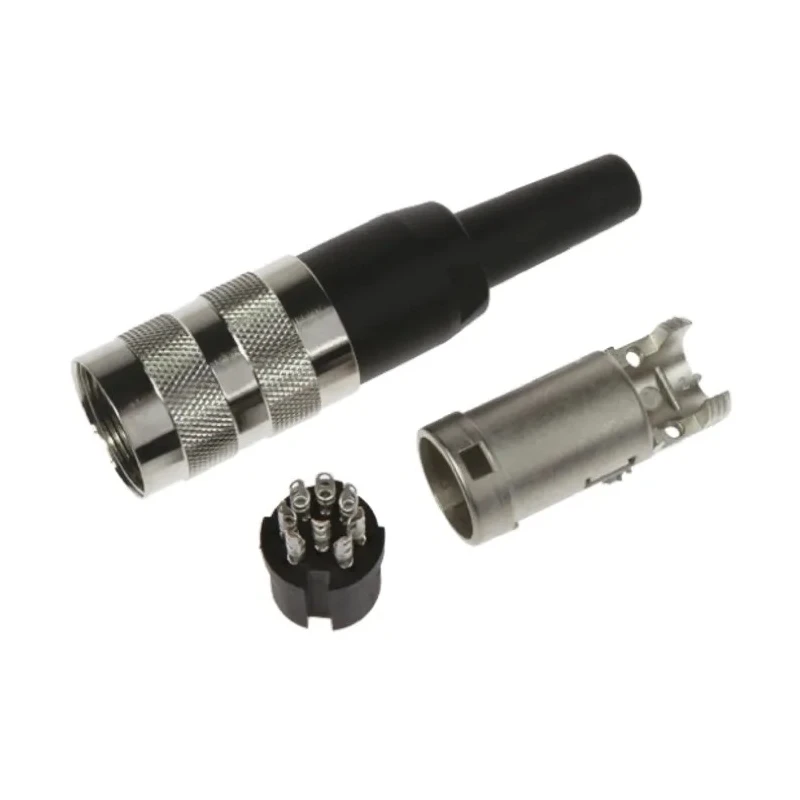

Amphenol Industrial C 091 A 8 Pole Straight M16 DIN Socket 5A 100V ac IP40 T3505001

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Industrial C 091 A 8 Pole Straight M16 DIN Socket 5A 100V ac IP40 T3505001

Name: Amphenol Industrial C 091 A 8 Pole Straight M16 DIN Socket 5A 100V ac IP40 T3505001
Brand: Amphenol Industrial
SKU: 162621
Price: 18.61 USD
Availability: InStock



Category DIN Socket Brand Amphenol Industrial Condition New

Specifications

Country of Origin	China
Voltage	100V ac
Brand	Amphenol Industrial
Orientation	Straight
Current	5A
Model	T3505001
IP Rating	IP40
Mount Type	Cable
Housing Material	Die Cast Nickel
Series	C 091 A
Termination Type	Solder
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Pole Format	8
Contact Plating	Silver
Number of Contacts	8
Contact Gender	Female
Connector Gender	Female
Mating Type	Screw
Connector Size	M16
DIN Number	DIN 45326

Key Features

The connector features an 8-pole format for versatile circuit applications.
Its straight orientation with female screw type ensures secure cable mounting.
Housing is made from durable die cast nickel with silver-plated contacts for excellent conductivity.
Operates safely between -40°C and 100°C allowing use in diverse environments.
Complies with DIN 45326 standard, ensuring compatibility and quality.
Termination is solder type for strong and stable electrical connections.
IP40 rating provides protection against solid objects larger than 1 mm.
Compact M16 connector size supports cable acceptance up to 6.0 mm diameter.

Product Description

Amphenol Industrial T3505001 is an 8 pole straight M16 DIN socket connector designed for cable mounting applications. It provides a secure and reliable connection with a current rating of 5A and voltage rating of 100V AC. The connector meets DIN 45326 standards and features an IP40 protection rating making it suitable for indoor industrial and electronic environments.

The housing is constructed from die cast nickel, providing excellent mechanical strength and corrosion resistance, while the contacts are silver plated to ensure low resistance and durability over long service periods. The connector uses a screw mating type and female contact gender. The termination is solder type, ensuring secure cable attachment.

Its operating temperature range from -40°C up to 100°C allows use in varied climates and industrial conditions. The straight orientation and compact M16 size allow for easy installation in tight spaces. Cable acceptance is up to 6.0 mm diameter, suitable for most industrial cable sizes.

This DIN socket connector is widely used in industrial controls, power supplies, automation equipment, and other electronic applications requiring stable and secure cable connections.

8 pole format provides flexible circuit connectivity. Die cast nickel housing ensures robustness and longevity. Silver plated contacts deliver reliable electrical performance. Screw mating with female contacts prevents accidental disconnection.

Solder termination type for secure cable fitting. IP40 rating protects against solid particle ingress, ideal for indoor usage. Operating temperature range supports industrial and commercial environments. Compact M16 size enables easy integration into existing setups.

Compliant with DIN 45326 standards to ensure interoperability.

It is an essential component in industrial, manufacturing, automation, and electronic systems where dependable electrical connections are crucial. Browse other Amphenol Industrial connectors and DIN Sockets on EnvMart for complete solutions.
