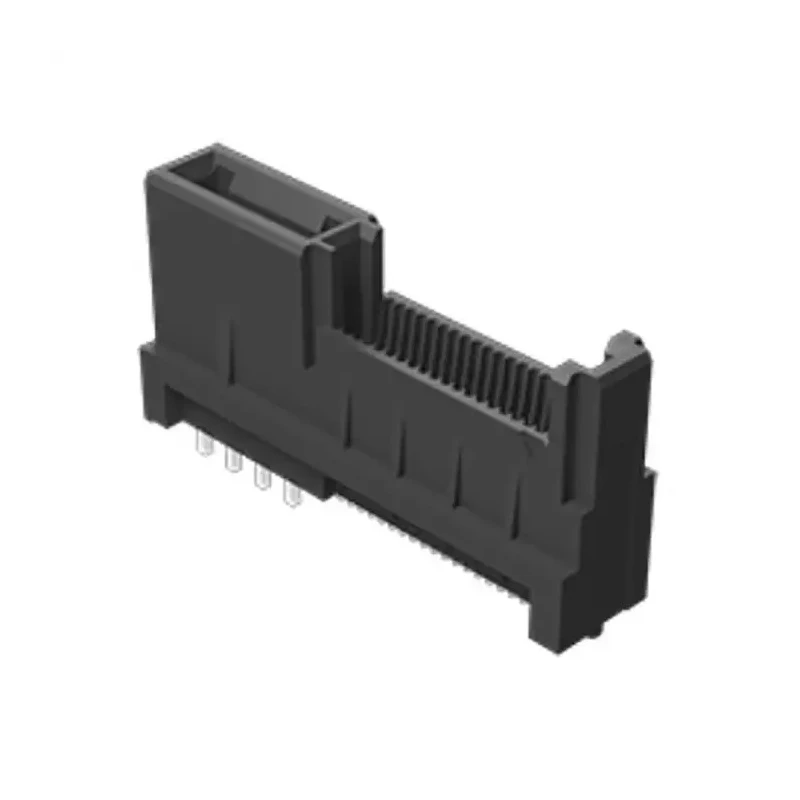

Samtec Right Angle Edge Connector Female, Surface Mount, 120 Contacts, 0.8 mm Pitch, 2 Row, Solder HSEC8-160-01-S-RA-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 2.6A |
| Model | HSEC8-160-01-S-RA-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-160-01-S-RA-TR |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Card Slot | .062" (1.60 mm) |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
| Card Thickness | 1.6mm |
Key Features
- The connector is designed for high-density applications with 120 gold-plated contacts.
- Features a right-angle orientation for PCB edge interfacing.
- Constructed with beryllium copper alloy contacts, ensuring durability and performance.
- Housing manufactured from liquid crystal polymer for enhanced thermal stability.
- Supports a maximum operating temperature of 125°C and a minimum of -55°C.
- Capable of handling currents up to 2.6 A and voltages up to 240 V.
- Termination type is solder, suited for surface mount technology installations.
- Meets industrial PCIe card slot standards with a card thickness of 1.6 mm.
Product Description
Samtec HSEC8-160-01-S-RA-TR is a right-angle Edge Connector female designed for high-density surface mount applications. It features 120 contacts arranged in 2 rows with a fine 0.8 mm pitch, optimized for PCIe card slot interfaces with a card thickness of 1.6 mm. The connector's contacts are made from high-quality beryllium copper alloy with gold plating to ensure excellent conductivity and durability.
The housing is constructed from liquid crystal polymer, delivering exceptional mechanical strength and thermal resistance, supporting operation in temperatures ranging from -55°C to 125°C. It supports currents up to 2.6 amps and voltage ratings of 240 volts, making it suitable for a wide range of industrial and electronic applications.
This series includes rugged edge rate® contacts enabling reliable signal transmission at high data rates. Designed with optional weld tabs for enhanced mechanical strength, this connector also supports pass-through options and optional board locks and cable latching features for secure assembly.
Ideal for industrial, electronic manufacturing, and computing applications requiring robust, high-density connectors that comply with PCI Express standards. Its surface mount termination via solder ensures compatibility with modern PCB manufacturing processes.
The connector features 120 gold-plated contacts arranged in 2 rows for high-density connectivity. Right-angle orientation designed for edge card slots and PCB interfaces. Beryllium copper alloy contact material provides durability and excellent electrical properties.
Liquid crystal polymer housing delivers mechanical strength and thermal stability. Supports a broad operating temperature range from -55°C to 125°C. Solder termination type compatible with surface mount technology. Current rating up to 2.6 A and voltage rating of 240 V.
Includes rugged edge rate® contact technology for signal integrity. Optional mechanical features such as weld tabs and pass-through options enhance reliability. Compliant with PCIe card slot standards with a card thickness of 1.6 mm.
Explore more connectors and electronic components in the Electronics & Electricals category on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 2.6 A.
It has a voltage rating of up to 240 V.
The connector operates within a temperature range of -55°C to 125°C.
It features 120 contacts arranged in 2 rows.
This model uses solder termination, making it suitable for surface mount technology installations.
The contact pitch size is 0.8 mm.
The housing is constructed from liquid crystal polymer, providing enhanced thermal stability.
It is designed to support PCIe card slots with a card thickness of 1.6 mm.
The connector has a right-angle orientation, suitable for PCB edge interfacing.
The contacts are made from beryllium copper alloy and are gold-plated for improved conductivity.
Yes, it includes optional weld tabs for enhanced mechanical strength and supports pass-through options and cable latching features.
The country of origin for this connector is India.
