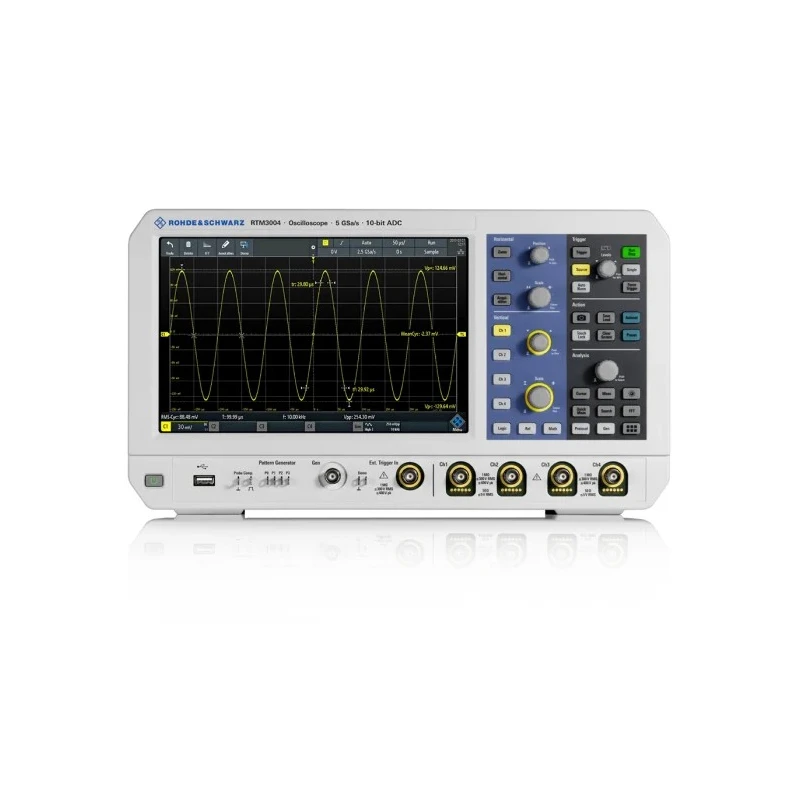

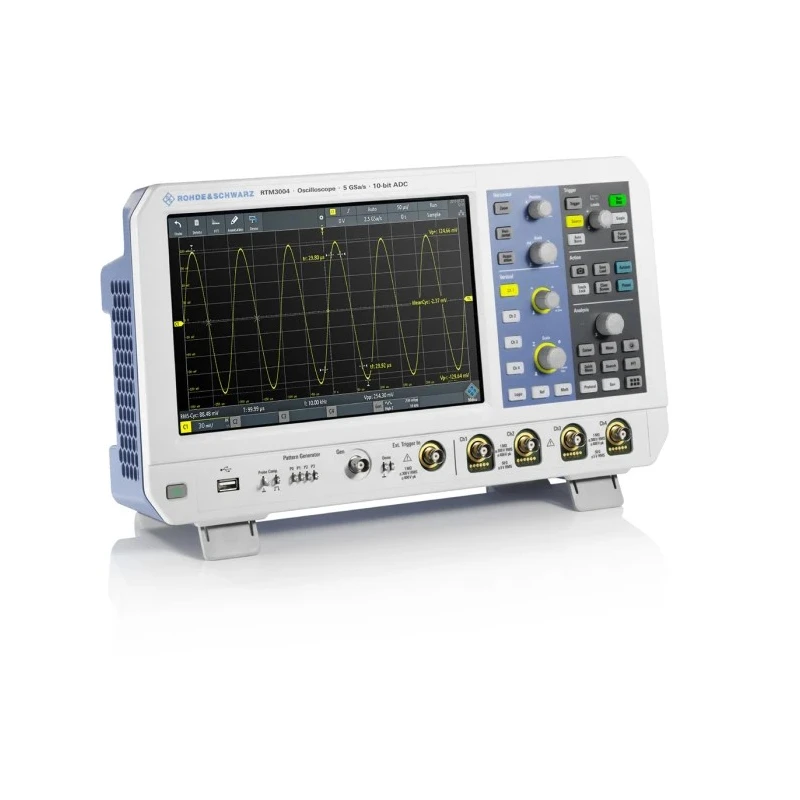

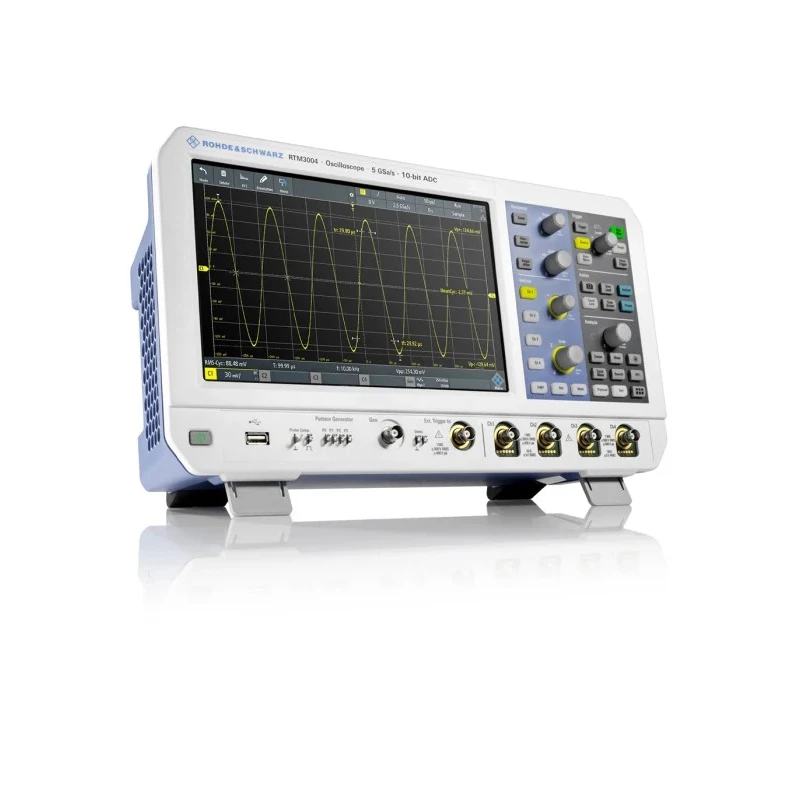

Rohde & Schwarz 1 GHz Bench Oscilloscope 4-Channel USB Interface RTM3000

Rohde & Schwarz RTM3K-COM4 is a 1 GHz bench-type digital oscilloscope with a 4-channel capability and USB interface, offering high vertical sensitivity and multifunctional analysis options. It features a large 10.1 inch capacitive touchscreen with 1280 x 800 pixels resolution for clear and precise waveform visualization.

This oscilloscope delivers bandwidth up to 1 GHz, memory depth of 80 MS, and sampling rates up to 5 GS/s, enabling detailed signal capture and analysis. The built-in 10-bit ADC and active input probe management facilitate automatic recognition and optimal measurements.

Advanced analysis options include frequency domain measurements with a simple RF setup, logical and protocol analyzers, and waveform and pattern generators for rapid testing. The device supports mixed signal analysis with RTM-B1 option enabling 16 digital channels at up to 400 MHz bandwidth.

It comes with extensive serial triggering and decoding capabilities covering I2C, SPI, UART/RS232, CAN/LIN, MIL-1553, and ARINC 429 protocols. The arbitrary waveform generator provides 14-bit resolution with 1 analog and 4 digital channels operating at 50 kHz bandwidth.

The instrument is an ideal choice for educational institutions, service technicians, research & development troubleshooting, and production testing environments. Its low-noise frontend ensures accurate measurements while compatibility with Rohde & Schwarz probes simplifies setup.

Bandwidth up to 1 GHz for high-frequency signal resolution. Four analogue channels for comprehensive signal analysis. Capacitive touchscreen supporting gesture controls. Multiple protocol decoding and serial triggering options integrated.

High sampling rate and memory depth for detailed waveform capture. Mixed signal functionality with digital channels option. Arbitrary waveform and pattern generator with 14-bit resolution included. Automatic probe management with low-noise front end.

Applications cover education, R&D, service, and production testing.

This product is made in the Czech Republic. For browsing more Oscilloscopes and accessories from Rohde & Schwarz and other brands, explore the Measuring & Testing Instruments category at EnvMart.
