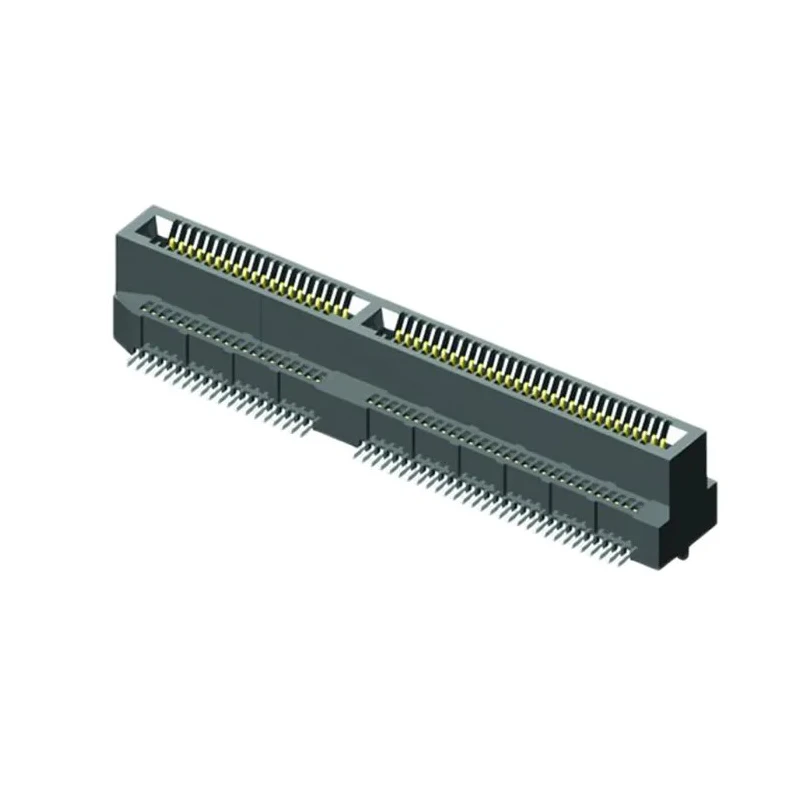

Samtec MEC8-DV Series Vertical Edge Connector Female Surface Mount 140 Contacts 0.8mm Pitch 2 Row Solder MEC8-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 185V ac |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 1.8A |
| Model | MEC8-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | MEC8-DV |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Tin over Nickel, Gold over Nickel |
| Number of Contacts | 140 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- Female connector with two rows for PCB micro edge card sockets.
- Supports card thickness up to 1.6 mm with precise solder termination.
- Constructed with phosphor bronze contacts plated with tin and gold over nickel.
- Designed for operation between -55°C to 125°C with a voltage rating of 185 V AC.
- Housing made of liquid crystal polymer ensuring durability.
- Offers a current rating of 1.8 A suitable for reliable signal transmission.
- Stack height is 8.65 mm optimized for PCB vertical mounting.
Product Description
Samtec MEC8-DV Series Vertical Edge Connector MEC8-DV is a high-performance female surface mount edge connector designed for electronic components requiring compact, reliable PCB connections. It features 140 gold-plated contacts in a double row configuration with 0.8 mm pitch spacing and supports 1.6 mm thick cards, making it ideal for micro edge card socket applications.
The connector is constructed with phosphor bronze contacts plated with tin over nickel and gold over nickel to ensure excellent conductivity and resistance to corrosion. The robust liquid crystal polymer housing provides thermal stability for operating temperatures ranging from -55°C to 125°C.
This connector supports up to 185 V AC and 1.8 A current rating, making it suitable in industrial, laboratory, manufacturing, electronic assembly, and telecommunications equipment where compact and reliable edge connectivity is crucial. The 8.65 mm stack height is optimized for vertical PCB mounting applications with solder termination.
Female, vertical orientation for PCB micro edge card sockets. Double row with 140 contacts spaced on 0.8 mm pitch. Contact plating with tin and gold over nickel for durability. Supports card thickness of 1.6 mm with solder termination.
Operating voltage up to 185 V AC and current at 1.8 A. Material housing is liquid crystal polymer, providing durability and thermal resistance. Temperature range from -55°C to 125°C for diverse environments.
Samtec connectors are widely used in advanced electronics design and integration, providing quality and reliability demanded by electronics manufacturing, testing, and telecommunications industries. For more Edge Connector and advanced PCB socket solutions, explore related products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 185 V AC.
It has a current rating of 1.8 A, suitable for reliable signal transmission.
The contact pitch size is 0.8 mm, which is designed for compact connections.
This connector supports a card thickness of up to 1.6 mm.
The contacts are made of phosphor bronze, plated with tin and gold over nickel, while the housing is constructed from liquid crystal polymer.
The operating temperature range is from -55°C to 125°C, making it suitable for diverse environments.
This model features 140 contacts arranged in a double row configuration.
It uses solder termination for secure connections.
The stack height is optimized at 8.65 mm for vertical PCB mounting applications.
This connector is designed with a vertical orientation for PCB micro edge card sockets.
The connector is manufactured in India.
It is suitable for use in industrial, laboratory, manufacturing, electronic assembly, and telecommunications equipment.
