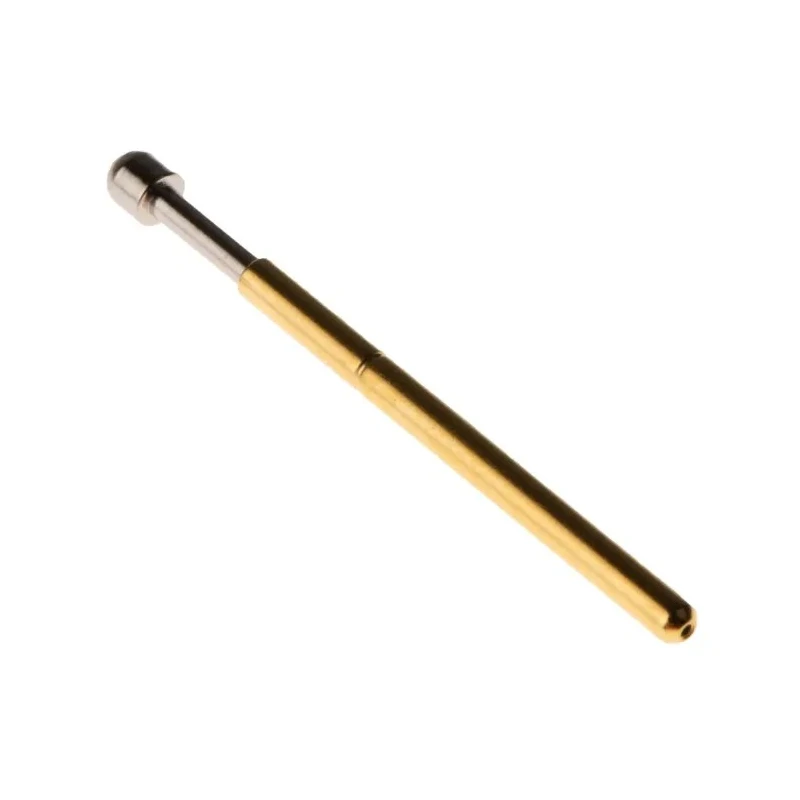

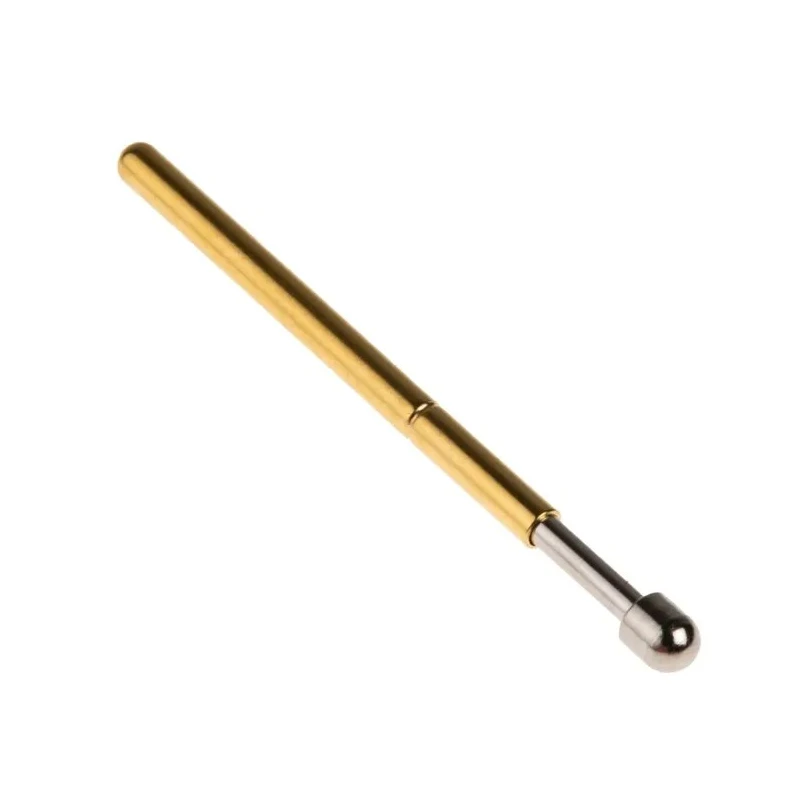

RS PRO Test Pin 3A Male Phosphor Bronze Spring Loaded Contact 2.54mm Pitch 261-5092

RS PRO 261-5092 Test Pin 3A Male is engineered for precise testing of printed circuit boards. Featuring a 2.54 mm pitch and a spring-loaded rounded tip, it ensures reliable electrical contact without causing damage or marks on the PCB surface.

The test pin is made from phosphor bronze, providing excellent conductivity and mechanical strength. Its spring-loaded termination offers consistent contact pressure of 1.47 N (grams), ensuring stable connection during testing procedures.

With a current rating of 3 amps and a contact resistance of just 30 milliohms, this test pin is suitable for rigorous electrical test applications. It measures 24.7 mm in length, making it ideal for integration into test jigs and automatic test equipment setups.

These test pins come in a pack of five, facilitating quick replacement and reducing downtime during PCB and sub-assembly testing. The use of separate probes and receptacles allows damage replacement without interference to other wiring.

Designed for industrial and laboratory use, this test pin is widely applicable in electronics manufacturing, quality control, and other fields requiring multipoint testing of printed circuit boards and sub-assemblies.

Test pin rated for a current of 3 amps. Phosphor bronze contact material provides durability. Spring-loaded rounded tip ensures positive contact without damaging PCBs. 2.54 mm pitch for standard PCB compatibility. Contact resistance of 30 milliohms supports accurate measurements.

Length of 24.7 mm with spring pressure of 1.47 N guarantee stable connection. Pack of five pins for convenient replacement during testing. Suitable for automatic test equipment and test jigs. Manufactured in China with no additional approvals.
