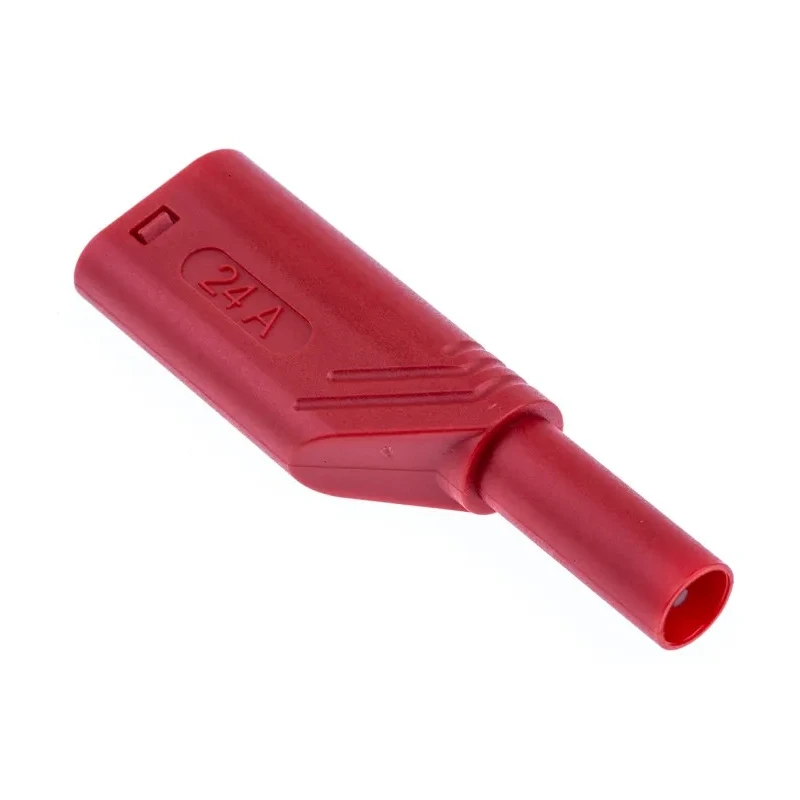

Hirschmann Test & Measurement Red Male 4 mm Banana Plug Screw Termination 1 kV 24 A Nickel Plating 934099101-
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | Hirschmann Test & Measurement |
| Colour | Red |
| Operating Temperature | -15°C to 70°C |
| Current | 24A |
| Length | 58.3mm |
| Model | 934099101- |
| Connector Type | Banana Jack |
| Gender | Male |
| Contact Material | Brass |
| Insulation Material | Polyamide |
| Rated Voltage | 1000 V |
| Contact Resistance | 10 mΩ |
| Standards/Approvals | CE |
| Contact Plating | Nickel |
| Connector Size | 4 mm |
| Termination Method | Screw |
| Contact spring material | Beryllium Copper |
Key Features
- This banana plug features a 4 mm connector with screw termination for secure fitting.
- Rated for 1 kV voltage and 24 A current, suitable for rigorous test environments.
- The contacts are nickel-plated brass material ensuring durability and corrosion resistance.
- It includes a spring contact made from beryllium copper for reliable conductivity.
- Insulation is made of polyamide, rated UL 94 V-2, supporting safe operation.
- The plug length is 58.3 mm, designed for tower construction applications.
- Operating temperature range runs from -15°C to 70°C, meeting diverse environmental conditions.
Product Description
Hirschmann Test & Measurement 934099101- Red Male 4 mm Banana Plug with screw termination is engineered for safe and reliable electrical testing and measuring applications. This plug is designed to meet IEC 61010 CAT II measurement category and is suitable for rigorous industrial and laboratory use.
The banana plug features a nickel-plated brass contact material and incorporates a beryllium copper spring contact, ensuring excellent electrical conductivity and mechanical stability. Its polyamide housing complies with UL 94 V-2 flame retardant standard, making it suitable for high safety demands.
Rated for a voltage of 1000 V and a current of 24 A, this connector safely supports demanding electrical testing and measurement tasks. Its 4 mm connector size and length of 58.3 mm allow for compatibility with a wide range of test equipment and accessories.
The operating temperature flexibility from -15°C to 70°C ensures dependable operation across varying environments including industrial plants, laboratories, manufacturing setups, and electrical service sites.
Additional features include low contact resistance (10 mΩ) for minimal signal loss and CE compliance, demonstrating conformity to European standards. This banana plug features a 4 mm connector with screw termination for secure fitting.
Rated for 1 kV voltage and 24 A current, suitable for rigorous test environments. The contacts are nickel-plated brass material ensuring durability and corrosion resistance. It includes a spring contact made from beryllium copper for reliable conductivity.
Insulation is made of polyamide, rated UL 94 V-2, supporting safe operation. The plug length is 58.3 mm, designed for tower construction applications. Operating temperature range runs from -15°C to 70°C, meeting diverse environmental conditions.
This Hirschmann banana plug is ideal for use in industrial machines, electrical testing instruments, HVAC systems, manufacturing lines, and any environment requiring precise electrical measurement connectivity. Its robust design ensures long service life under frequent use.
Browse the extensive range of Hirschmann Test & Measurement products and Test Connectors at EnvMart for all your industrial and laboratory electrical connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The banana plug is rated for a maximum voltage of 1 kV (1000 V).
It has a current rating of 24 A, making it suitable for rigorous electrical testing applications.
The contacts are made from nickel-plated brass, and the spring contact is made from beryllium copper for reliable conductivity.
The operating temperature range for this banana plug is from -15°C to 70°C.
It features a screw termination method for secure fitting.
The length of this model is 58.3 mm.
The contact resistance is 10 mΩ, which helps minimize signal loss.
Yes, it is CE compliant, demonstrating conformity to European standards.
The insulation is made of polyamide, rated UL 94 V-2 for flame retardancy.
This model is red in color, which is typical for male banana plugs.
The country of origin for this banana plug is Germany.
It is suitable for use in industrial machines, electrical testing instruments, HVAC systems, and manufacturing lines.
