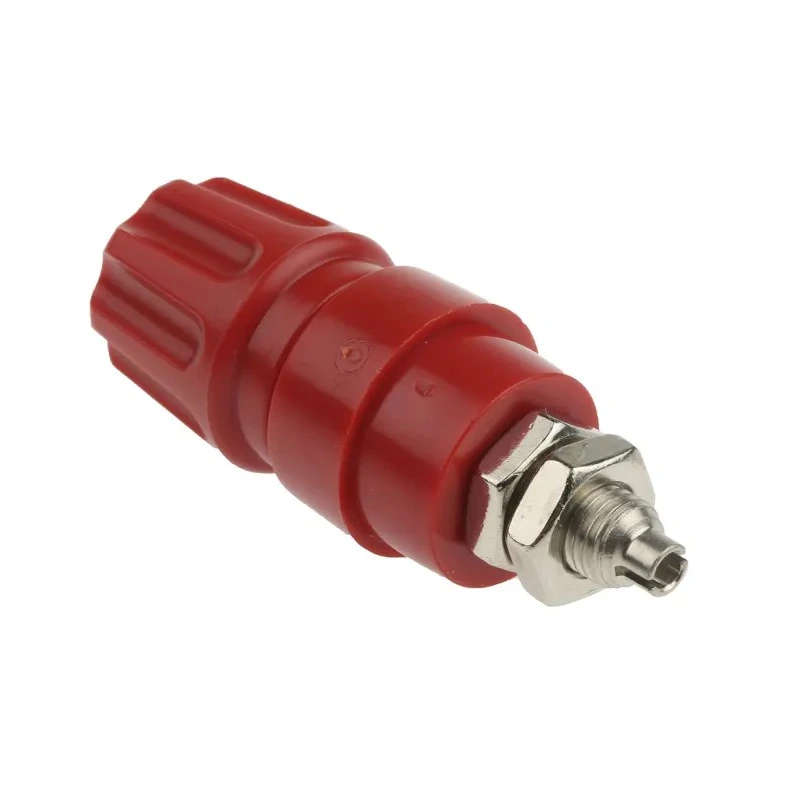

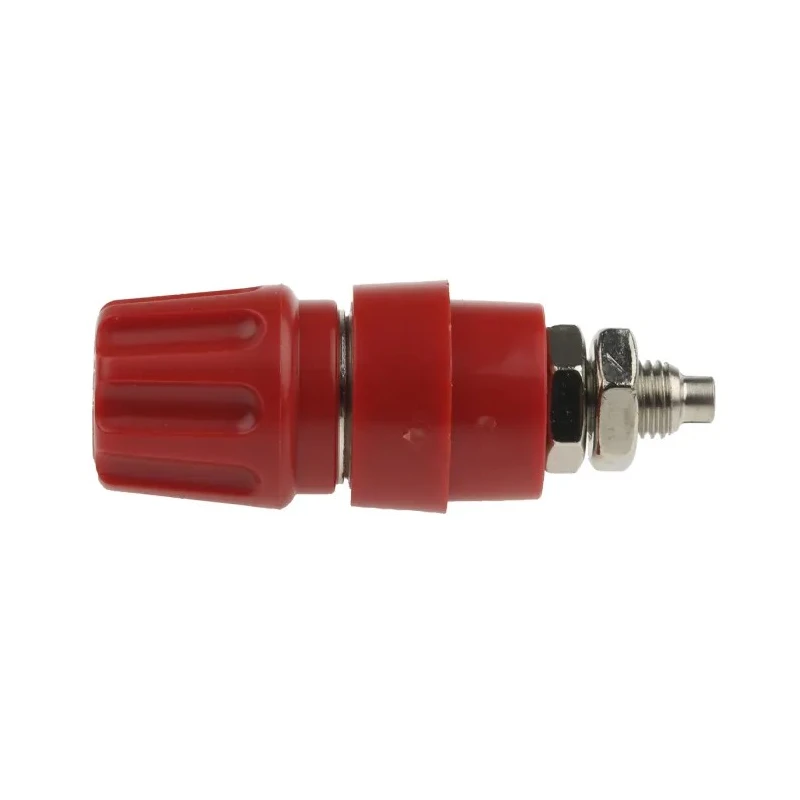

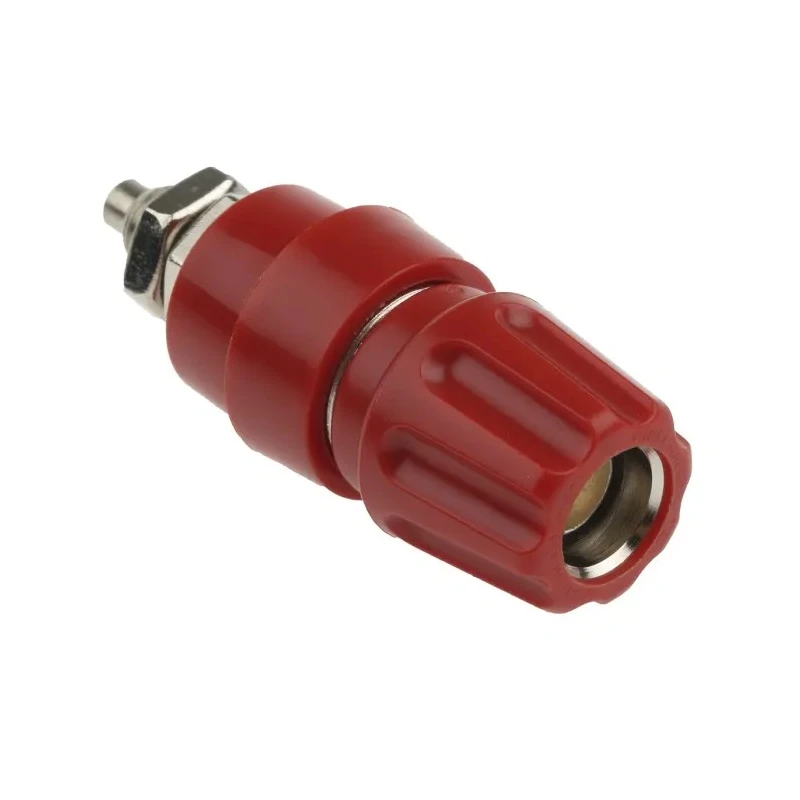

Hirschmann Test & Measurement 4 mm Red Terminal Post, 63A, 60V DC, M6 x 0.75 Thread Phenolic Resin 930136101

The Hirschmann Test & Measurement model 930136101 is a high-capacity red terminal post designed for laboratory and industrial test equipment requiring robust electrical connectivity. Featuring a 4 mm diameter, it is engineered for use with test sockets, panels, and instrumentation setups.

This terminal post is constructed with a phenolic resin body that provides advanced insulation, ensuring safety and reliability in demanding environments. It incorporates a gold-plated pole clamp-claw edge, a captive-insulated head, and an insulating ring for additional protection and ease of use.

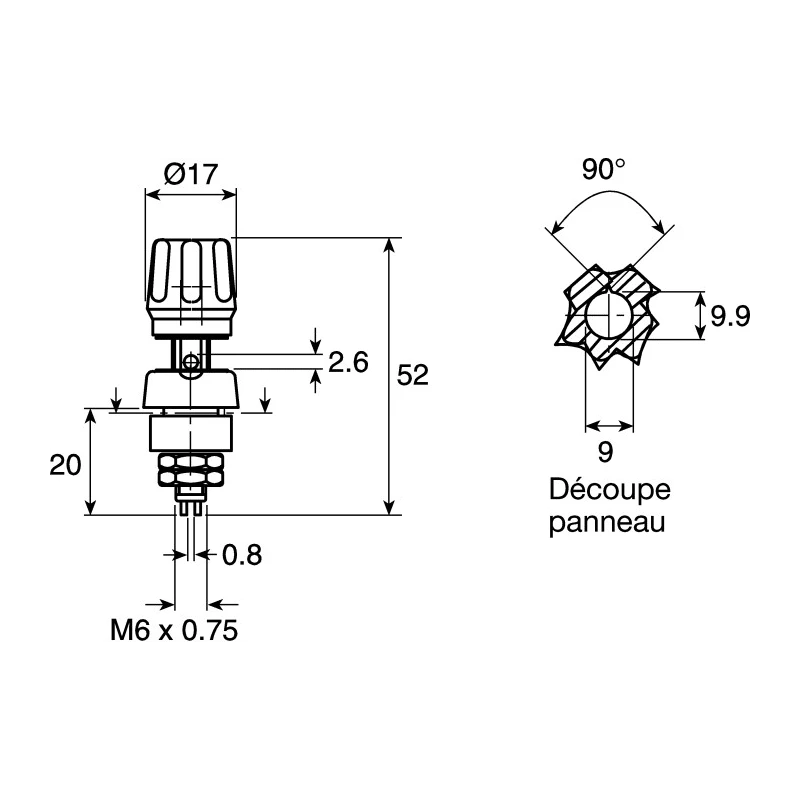

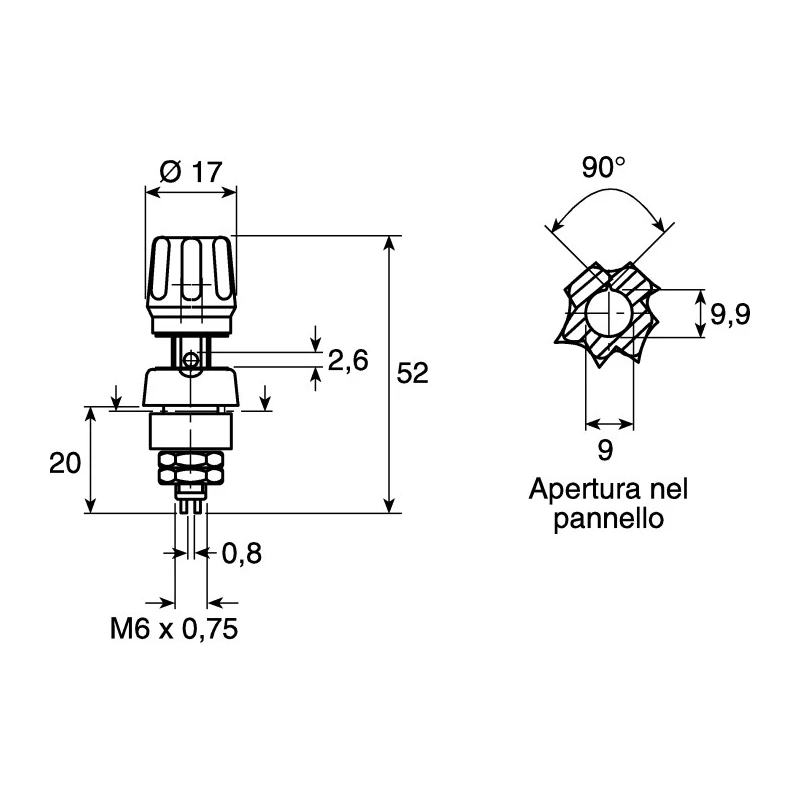

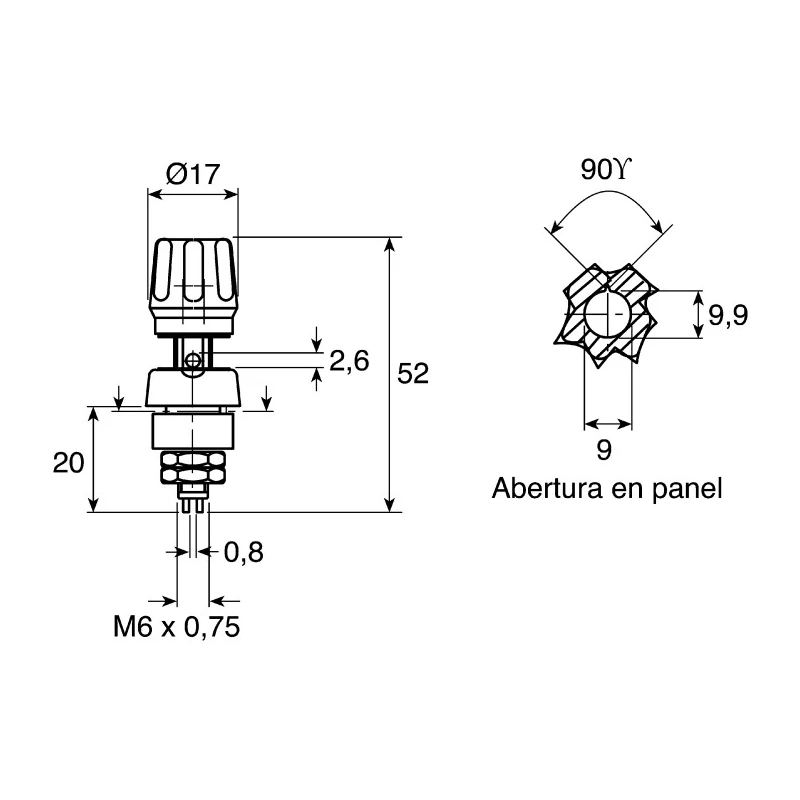

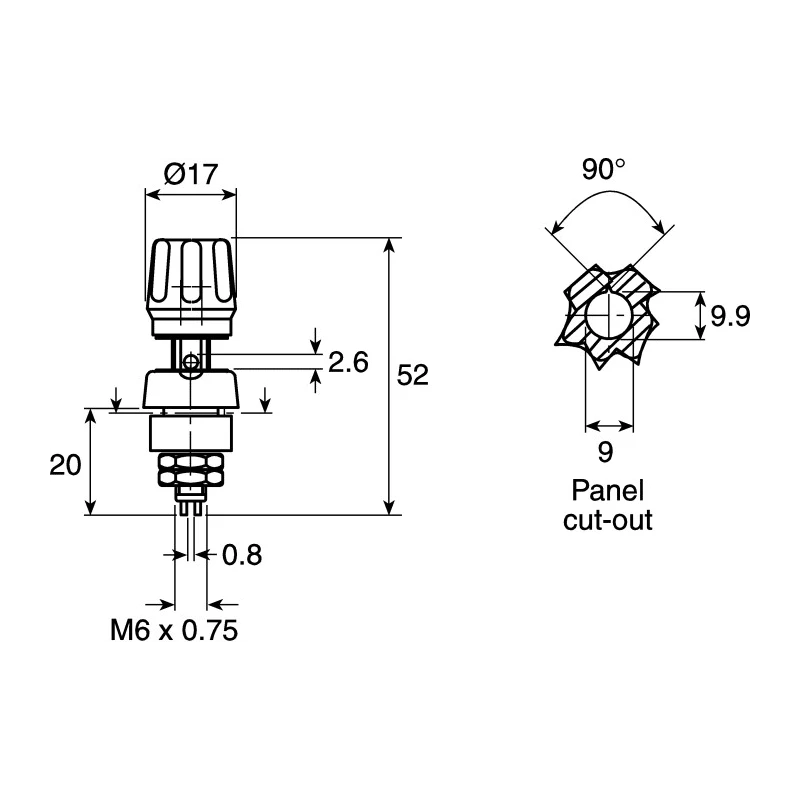

The threaded brass bolt, with an M6 x 0.75 pitch, is nickel-plated for corrosion resistance and durability. The terminal includes a transverse hole with a diameter of 2.6 mm, facilitating straightforward wire connection suitable for high-current applications up to 63A. Its voltage rating covers both 30V AC and 60V DC, making it versatile for a variety of test setups.

Screw mounting allows for secure installation on panels up to a maximum thickness of 3.5 mm, ensuring compatibility with a range of chassis and enclosure types. The product supports safe, insulated operation and precise measurements in electronic, electrical, laboratory, and industrial testing environments. Contact resistance is specified as 2 milliohms for reliable signal performance.

Certified to CAT I ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, the terminal post adheres to strict industry requirements for static discharge and safety. It is a preferred component for technicians, engineers, and laboratory professionals installing new instrumentation or upgrading test connectivity hardware.

Typical applications include electrical laboratory test benches, equipment panels, quality control instruments, and general purpose test connectors in electronics manufacturing and repair. The red color coding assists in circuit identification and organization.

4 mm red terminal post for secure electrical connections. Supports up to 63A current for high-capacity setups. M6 x 0.75 threaded brass bolt ensures robust mounting. Phenolic resin body provides excellent insulation. Rated for 60V DC and 30V AC, suitable for lab and industrial environments.

Captive-insulated head and insulating ring enhance user safety. Transverse wire hole with 2.6 mm diameter for easy wire insertion. Maximum panel thickness of 3.5 mm allows versatile installation. Explore more Test Connectors and industrial measurement components in the Electronics & Electricals category on EnvMart.
