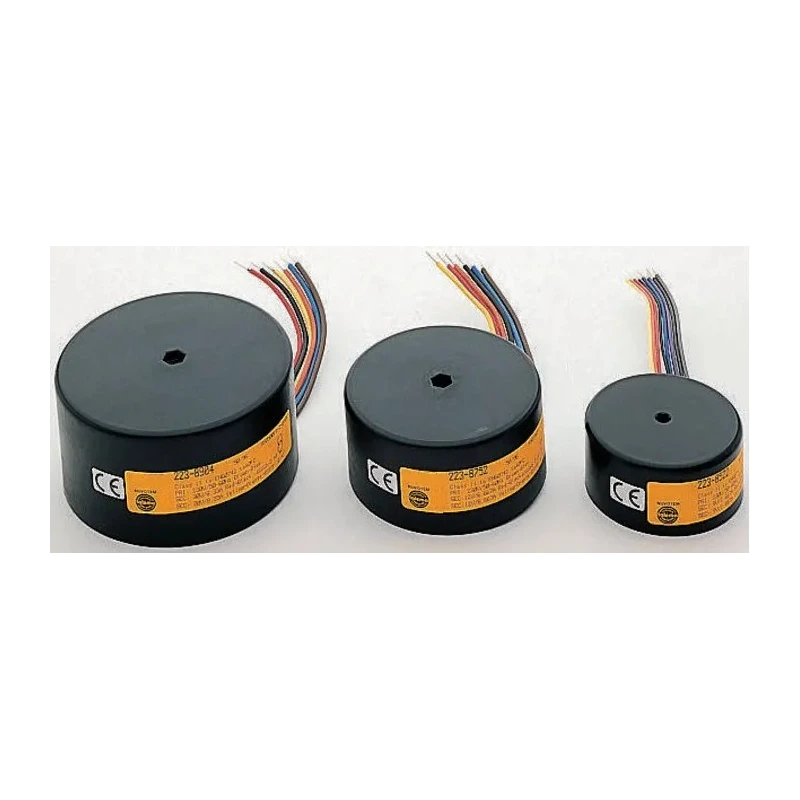

Nuvotem Talema Toroidal Transformer 230 V ac Primary, 2 x 15 V ac Secondary, 2 Outputs, 225 VA, Encapsulated 0225P1-2-015K

Nuvotem Talema 0225P1-2-015K toroidal transformer features a single 230 V ac 50/60 Hz primary winding with twin secondary windings delivering 2 x 15 V ac outputs. This high-quality encapsulated transformer provides 225 VA power and is designed for industrial, electronic, and power supply applications requiring reliable current and voltage transformation with minimal losses.

The transformer is fully encapsulated in a UL94-V0 flame retardant nylon 6.6 case ensuring enhanced electrical insulation and mechanical protection. Its compact design with a 112 mm diameter and 52.4 mm height facilitates easy mounting using a centre hole fixing (fixing bolt not included). The unit operates within a frequency range of 50 to 60 Hz and withstands maximum operating temperatures up to 180°C.

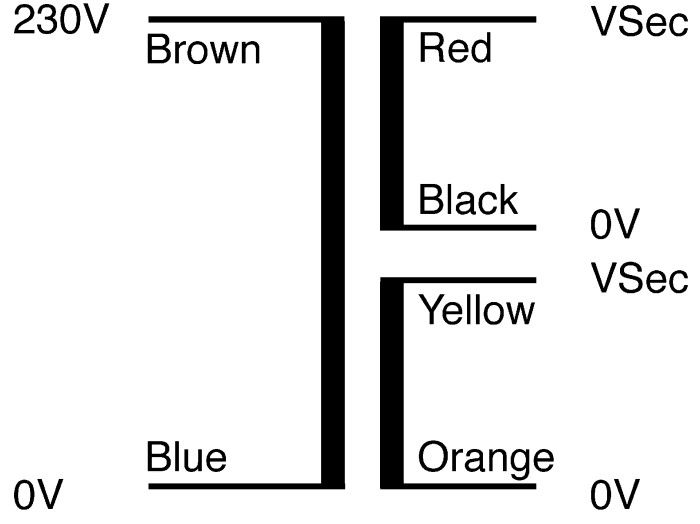

Secondary windings can be configured in series, parallel, or used independently depending on application needs. The transformer exhibits very low radiated magnetic field and minimal noise (hum) levels, offering quiet operation in sensitive electronic environments. The double insulated primary leads provide enhanced safety and electrical performance.

This product complies with multiple safety and quality approvals, including VDE0550, UL5, EN60065, BS415, EN61558, and UL506, and meets UL94-V0 flame retardant standard for case material. Electrical and flash testing ensure reliable performance and long service life.

Typical applications include power supplies for industrial machines, electronic equipment, HVAC systems, laboratory instruments, and commercial electronic devices that demand stable AC voltage conversion with compact form factor and safety.

Encapsulated design ensures durability and electrical safety. Equipped with two outputs that allow series, parallel, or independent connection of secondary windings. Conforms to international standards VDE0550, UL5, EN60065, BS415, EN61558, and UL506 for quality assurance.

High operating temperature tolerance up to 180°C for demanding environments. Low noise and low iron losses enhance performance efficiency. Compact form factor with diameter 112 mm and height 52.4 mm aids easy mounting. Double insulated primary leads improve insulation reliability.

Low surface temperature during operation increases safety. Fully tested electrically and flash tested for quality compliance. Case material meets UL94-V0 Nylon 6.6 flame retardant standards. Explore more Toroidal Transformers and power supply components at EnvMart for diverse industrial and laboratory applications.
