Nuvotem Talema 230 V ac 2 x 15 V ac Toroidal Transformer 2 Output 30 VA 50-60 Hz Model 0030P1-2-015K

Free Delivery in India | Lowest Global Shipping Charges

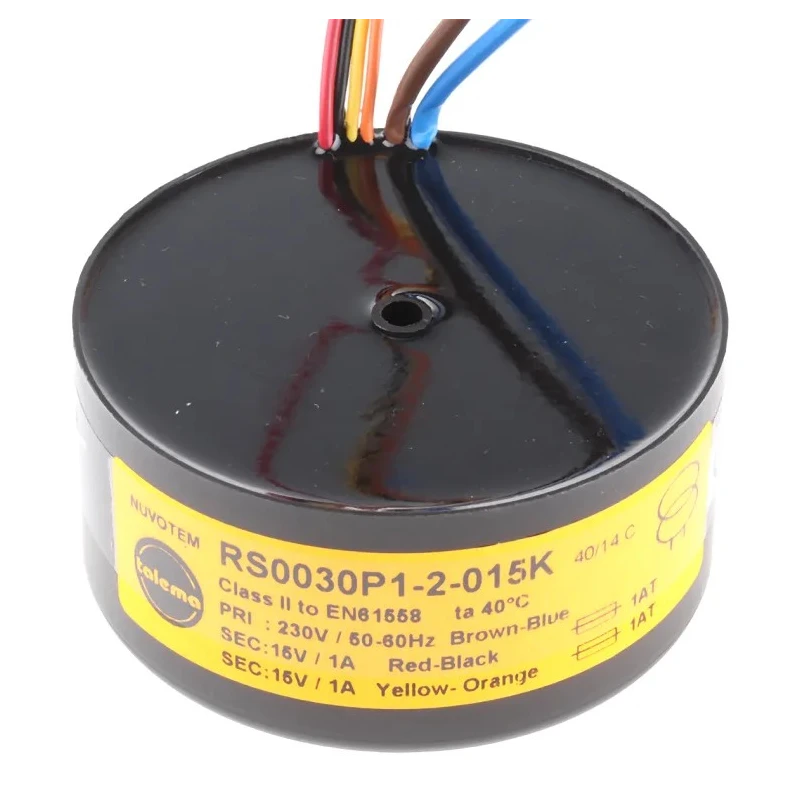

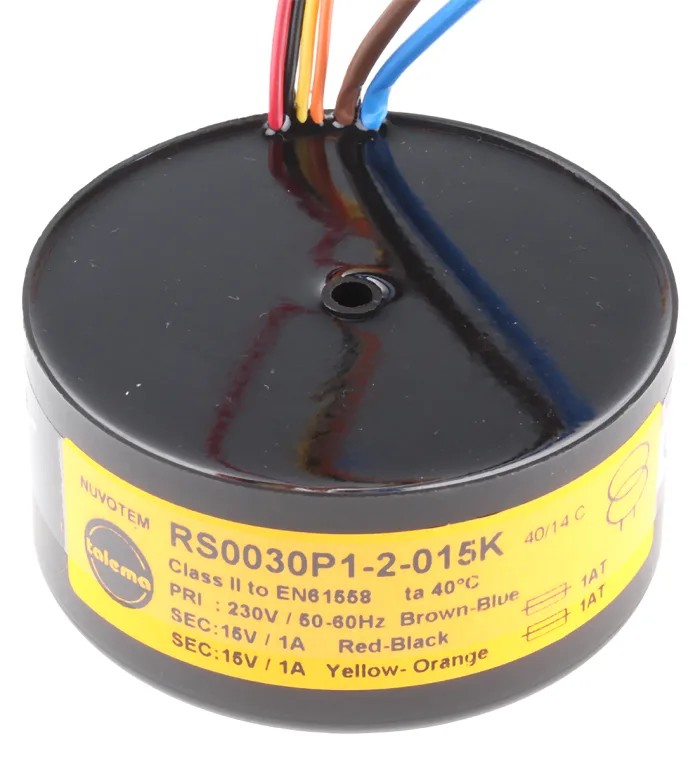

Nuvotem Talema 230 V ac 2 x 15 V ac Toroidal Transformer 2 Output 30 VA 50-60 Hz Model 0030P1-2-015K

Name: Nuvotem Talema 230 V ac 2 x 15 V ac Toroidal Transformer 2 Output 30 VA 50-60 Hz Model 0030P1-2-015K
Brand: Nuvotem Talema
SKU: 111425
Price: 78.89 USD
Availability: InStock



Category Toroidal Transformers Brand Nuvotem Talema Condition New

Specifications

Country of Origin	India
Diameter	81.3mm
Brand	Nuvotem Talema
Height	39.1mm
Model	0030P1-2-015K
Gross Weight	580g
Termination Type	Lead
Maximum Operating Temperature	180°C
Secondary current	2.5A
Number of outputs	2
Standards/Approvals	EN61558, EN60065, UL506, UL5, VDE0550, BS415
Primary Voltage	230 V ac
Secondary Voltage	2 x 15 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

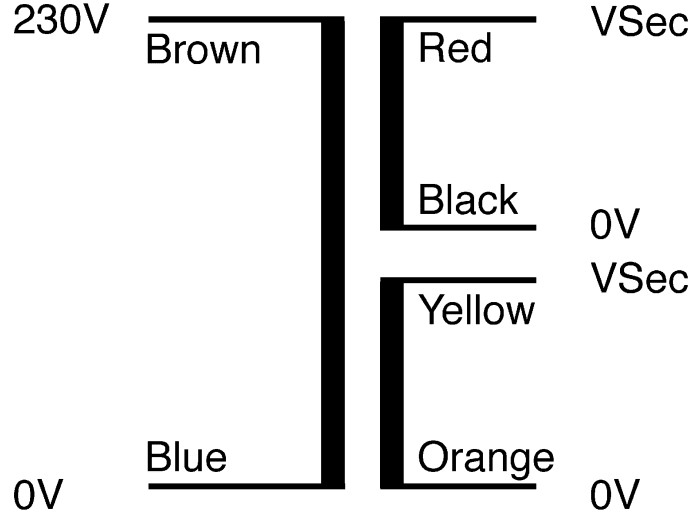

Features twin secondary windings usable in series, parallel or independently.
Encapsulated construction with lead termination and UL94-V0 nylon 6.6 case material.
Compact diameter of 81.3 mm and height of 39.1 mm for easy mounting.
Operates at 50 to 60 Hz frequency with a maximum temperature rating of 180°C.
Low radiated magnetic field and reduced induced noise for high efficiency.
Meets international standards EN61558, EN60065, UL506, UL5, VDE0550, and BS415.
Double insulated primary leads ensure safety and durability.
Ideal for industrial, electronic, and power supply applications requiring stable AC voltage transformation.

Product Description

Nuvotem Talema 0030P1-2-015K Toroidal Transformer is designed for high-quality encapsulated 230 V ac primary input and delivers dual 15 V ac secondary outputs rated at 30 VA power. The transformer operates within a frequency range of 50 Hz to 60 Hz, supporting stable and efficient power supply conversion.

This model features twin secondary windings that can be configured in series or parallel or used independently to meet diverse electrical needs. The encapsulated design, combined with lead terminations, provides reliable electrical insulation and excellent protection matching UL94-V0 standards with Nylon 6.6 construction for chemical resistance and longevity.

The transformer’s compact form factor measures 81.3 mm in diameter and 39.1 mm in height, enabling easy installation with center hole fixing (fixing bolt not included). It maintains a low surface temperature and exhibits a very low level of radiated magnetic field and minimal induced noise (hum), ensuring quiet operation.

Engineered to meet multiple rigorous international standards including EN61558, EN60065, UL506, UL5, VDE0550, and BS415, this product is a dependable choice for industrial, manufacturing, laboratory, and power supply systems.

Dual secondary outputs allow flexible voltage configurations. Encapsulated design for safety and durability. Compact and lightweight with 580 grams gross weight. Wide operating temperature range up to 180°C. Low iron loss and noise for efficient performance.

Meets key electrical safety and performance standards. Double insulated leads provide enhanced safety. Suitable for a variety of electrical and industrial applications. Easy to mount with center hole fixing.

This toroidal transformer from Nuvotem Talema is an excellent solution for electronic component assemblies, power supplies, and industrial equipment requiring stable AC voltage transformation. Its design reduces interference and enhances safety and performance in demanding environments. Explore the extensive range of transformers at EnvMart for reliable electrical solutions.
