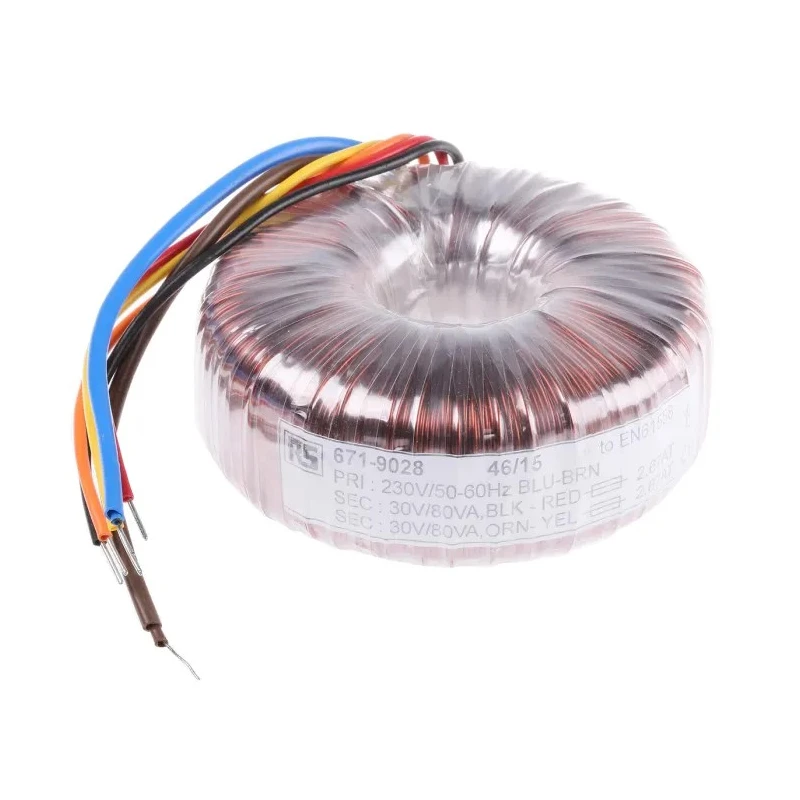

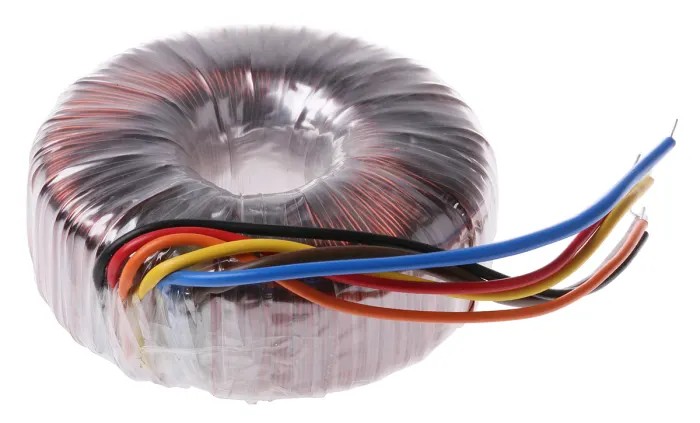

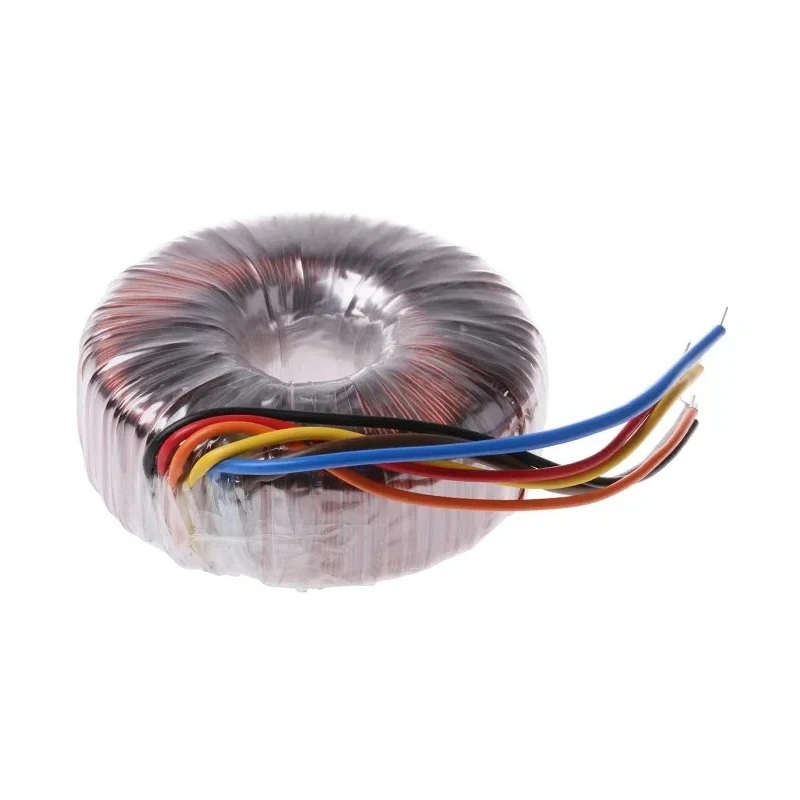

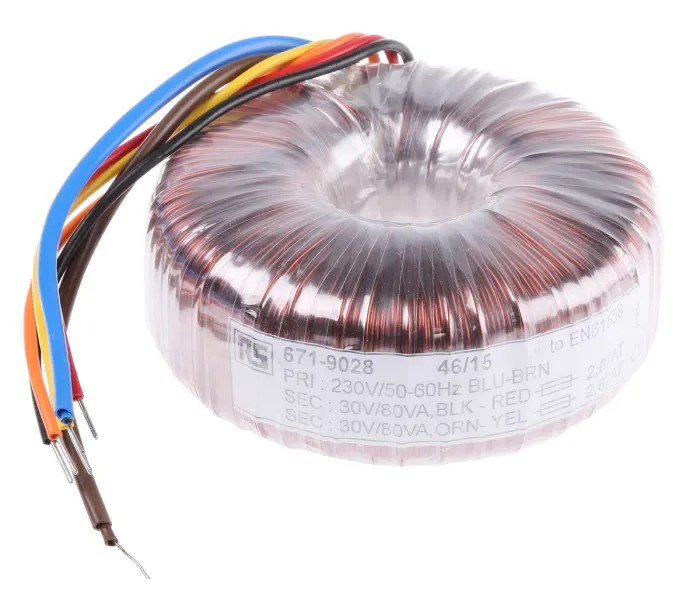

RS PRO Toroidal Transformer 230 V ac Primary, 2 x 30 V ac Secondary, 2 Outputs, 160 VA, Copper Conductor 671-9028

RS PRO 671-9028 Toroidal Transformer is engineered for high efficiency and reliable performance in electronic and industrial applications. Featuring a 230 V ac primary voltage and dual 30 V ac secondary outputs delivering 160 VA, this transformer supports sensitive power applications requiring low noise and minimal electromagnetic interference.

The copper conductor termination type ensures sturdy and secure electrical connections. The toroidal core design optimizes magnetic flux distribution, reducing losses and enabling compact installation. Double insulated primary leads provide excellent electrical isolation for safety.

Compliant with rigorous industrial standards including EN 61558 Class II, UL 506, VDE0570 Class II, and IEC 61558 Class II, this product guarantees quality and safety in demanding environments.

Key features include low audible noise and space-efficient form factor with a diameter of 109 mm and height of 46 mm, weighing only 1.74 kg. Suitable for a wide range of industrial, telecommunications, audio equipment, and medical device applications, it operates at a frequency range of 50 Hz to 60 Hz with secondary current outputs rated at 2.667 A.

This transformer is ideal for industrial controls, power supplies, and systems requiring robust and low noise power conversion. Note that mounting hardware is not supplied and should be ordered separately.

Compact toroidal design reduces electromagnetic interference and audible noise. Copper conductor termination ensures secure connections. Double insulated primary leads for high electrical isolation. Complies with EN 61558, UL 506, VDE0570, and IEC 61558 standards.

Two independent 30 V ac outputs with 2.667 A current capacity. Lightweight and compact with 109 mm diameter and 46 mm height. Ideal for audio, telecommunications, medical, and industrial control applications. Explore our complete range of Toroidal Transformers and power supply components on EnvMart for industrial and electronic system needs.
