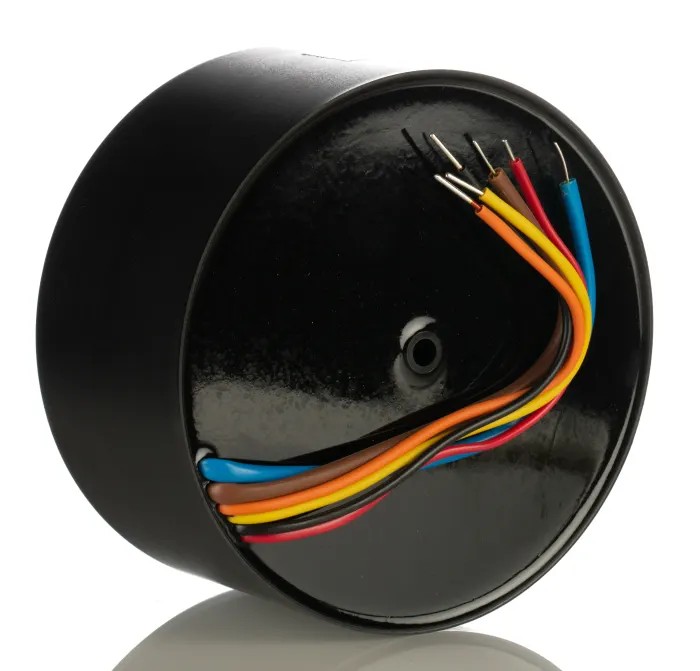

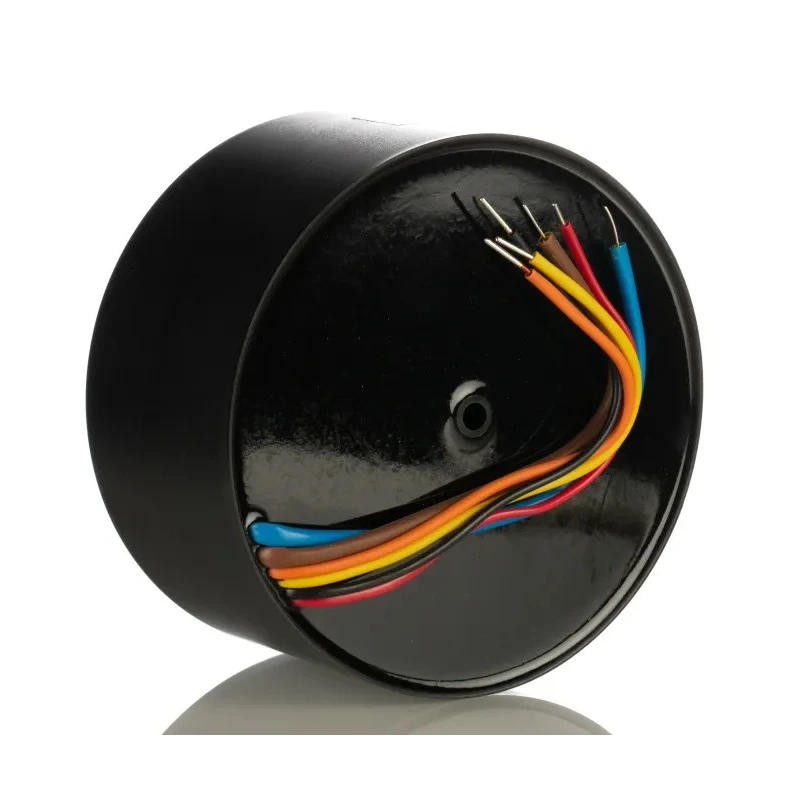

Nuvotem Talema Toroidal Transformer 230 V ac Primary, 2 x 55 V ac Secondary, 500 VA, 4.55 A Secondary Current 0500P1-2-055K

Nuvotem Talema 0500P1-2-055K is a high-quality encapsulated toroidal transformer designed for use in various industrial and electronic applications. It features a 230 V ac primary winding and twin secondary windings providing 2 x 55 V ac outputs at a rated power of 500 VA and a secondary current rating of 4.55 A. The transformer is encapsulated with leads allowing easy connection and mounting with a centre hole fixing, although the fixing bolt is not included.

Its compact form factor includes a diameter of 136 mm and a height of 60 mm, contributing to a low weight of 4 kg compared to traditional stacked lamination transformers. Engineered to operate efficiently over a frequency range of 50 to 60 Hz, this unit is suited for demanding electrical environments requiring stable voltage transformation.

The transformer is constructed with a UL94-V0 rated Nylon 6.6 case, providing excellent fire resistance and mechanical protection. It meets multiple international safety standards, including UL 506, EN 60065, and UL 5085, assuring compliance with industry requirements. The design minimizes radiated magnetic fields and induced noise (hum), improving operational reliability and lowering interference risks.

Additional features include double insulated primary leads for enhanced electrical safety, a low surface operating temperature, and 100% electrical and flash testing before shipment. This model serves well in industrial, laboratory, and commercial applications where reliable isolation and voltage transformation are essential.

Typical uses include power supplies, signal isolation, and equipment requiring multiple secondary outputs configurable in series or parallel. Its encapsulated design protects internal components from environmental contaminants, ensuring long service life.

Encapsulated toroidal transformer for industrial and electronic applications. 230 V ac primary with dual 55 V ac secondary outputs rated at 500 VA. Double insulated primary leads and low temperature operation. Complies with UL 506, EN 60065, UL 5085 for safety and performance.

Compact size with 136 mm diameter and 60 mm height. Low noise and magnetic interference with superior electrical testing. Suitable for power supplies, signal isolation, and multi-output needs. Quality manufacturing aligned with EN61558, EN60950, EN60065, and VDE standards.
