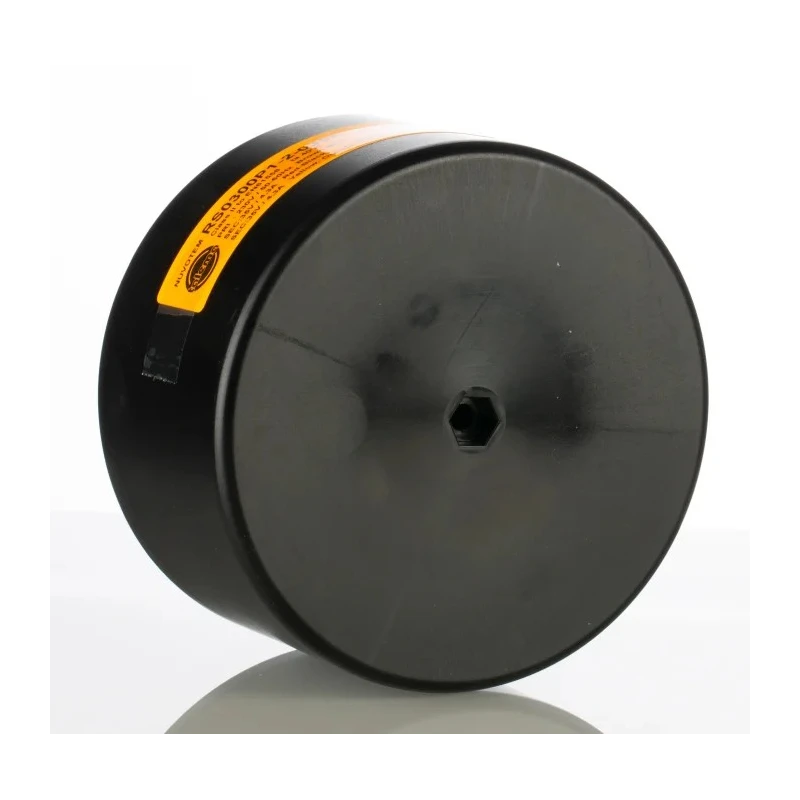

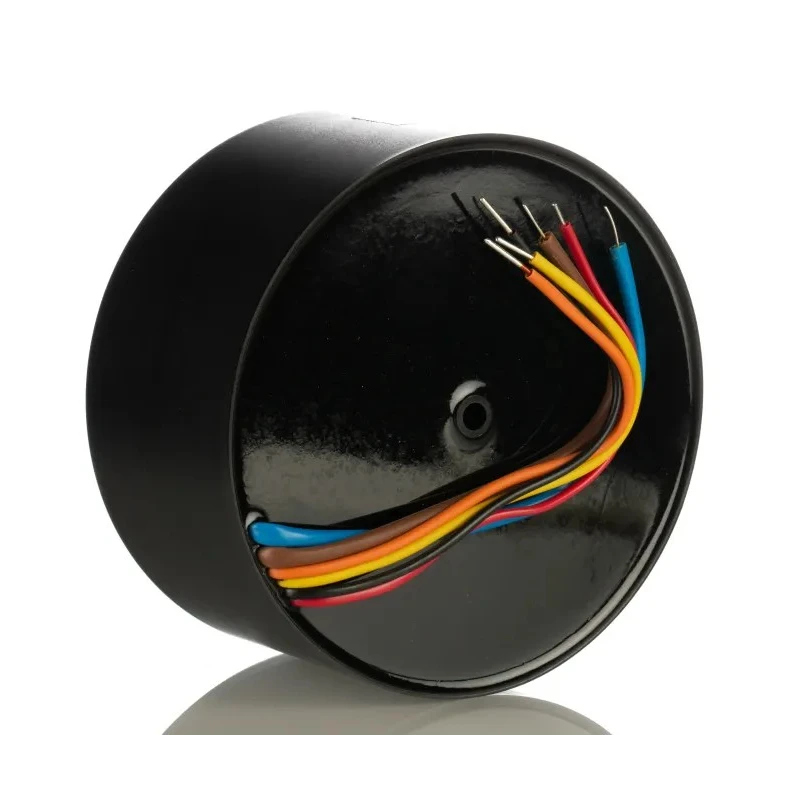

Nuvotem Talema 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 120 VA 50-60 Hz 1.33kg 0120P1-2-012K

Nuvotem Talema 0120P1-2-012K is a high-quality Toroidal Transformer designed with a 230 V ac primary winding and dual 12 V ac secondary windings. It delivers 120 VA power with secondary current rating of 5 A and operates efficiently across 50 to 60 Hz frequencies.

This encapsulated transformer features very low radiated magnetic fields and low induced noise, making it suitable for sensitive electronic applications. It is double insulated with primary leads and constructed with UL94-V0 rated nylon 6.6 case material ensuring high flame retardance and safety.

With a diameter of 105 mm and height of 52.1 mm, the transformer is compact and lightweight at 1.33 kg, facilitating easy mounting via its center hole fixing design (fixing bolt not included). Its maximum operating temperature rating of 180°C ensures robust performance under demanding electrical loads.

The twin secondary windings offer flexible usage options: they may be connected in series, parallel, or used independently, catering to various circuit requirements. Comprehensive safety and quality approvals are met, including EN61558, BS415, UL5 (File E15495), EN60065, UL506, and VDE0550 standards.

Encapsulated design reduces electromagnetic interference and noise. High temperature tolerance up to 180°C. Flame retardant UL94-V0 nylon case material. Dual 12 V ac secondary outputs with 5 A current each. Designed for easy center hole mounting.

Low iron loss due to toroidal construction. Compliant with multiple international safety standards. Lightweight and compact form factor.

This transformer is ideal for use in industrial electronics, power supply units, audio equipment, and various laboratory and HVAC applications requiring stable voltage conversion and low noise operation.
