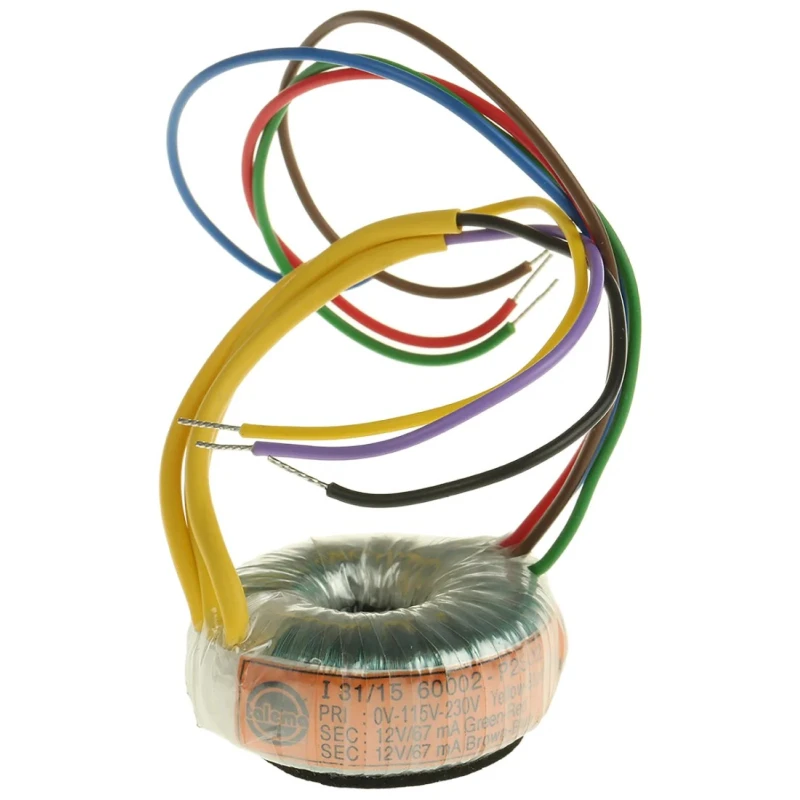

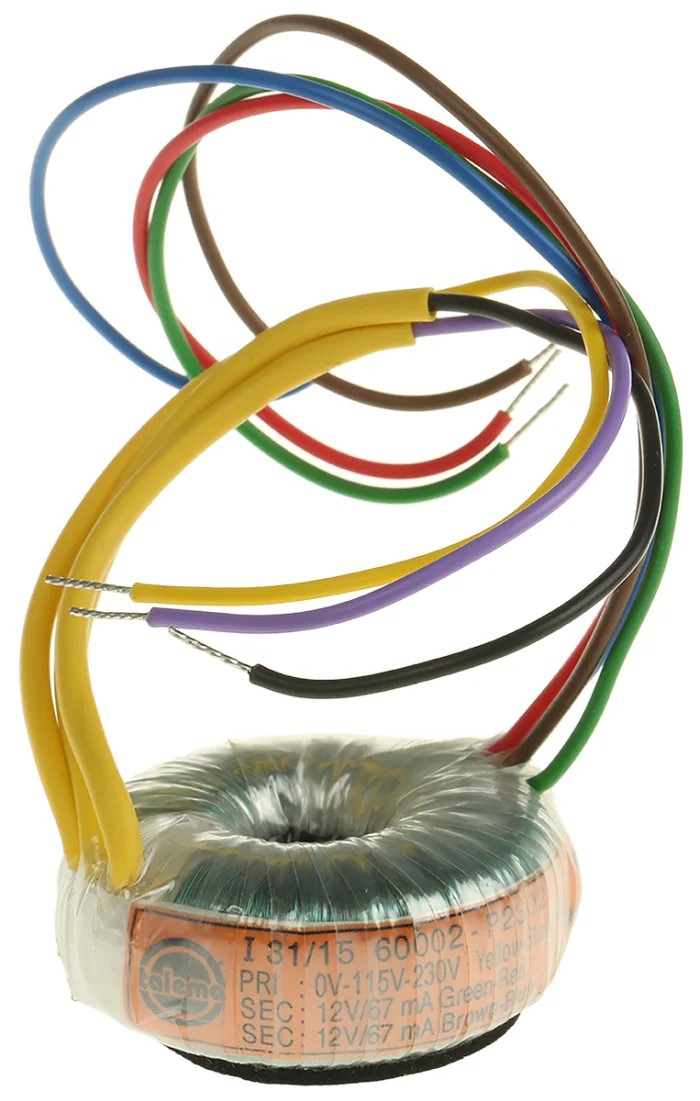

Nuvotem Talema 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 1.6 VA VDE0551 Class II EN60065 Class II 60002

Nuvotem Talema 60002 Toroidal Transformer is designed for industrial and electronic applications requiring reliable transformer performance with minimal footprint. Featuring a primary voltage of 230 V ac and dual secondary outputs of 2 x 12 V ac, it provides a power rating of 1.6 VA. This transformer operates efficiently within 50 to 60 Hz frequency ranges and is suitable for use in devices demanding low noise and low electromagnetic interference.

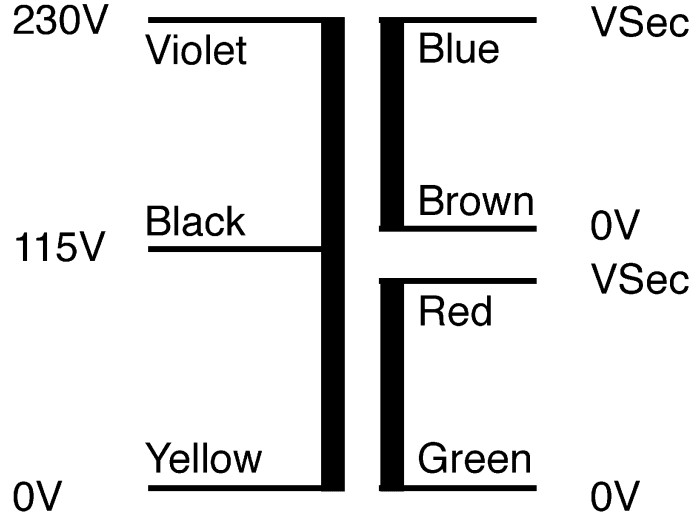

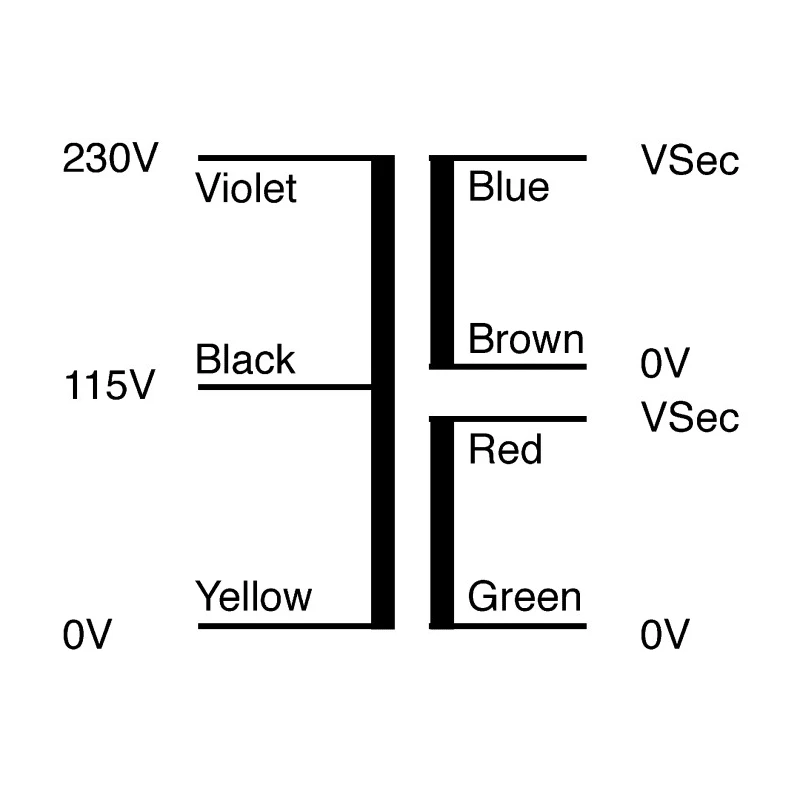

The transformer employs a mini open style toroidal design, which ensures low profile and lightweight characteristics. It is potted with a centre fixing hole (M4) for secure installation. The dual standard tapped primary winding supports 115/230 V ac, allowing flexibility in input voltage configurations.

Key safety and quality certifications include VDE0551 Class II, EN60065 Class II (IEC65), EN60742 Class II, UL to UL506, and BS415 Class II, ensuring compliance with international standards. The product undergoes 100% electrical and flash testing to guarantee high manufacturing quality and operational reliability.

Its features such as double insulated primary leads, minimal radiated magnetic field, and very low induced noise make it well suited for sensitive industrial, laboratory, and electronic equipment applications. The device withstands maximum operating temperatures up to 180°C, making it robust in demanding environments.

Compact dimensions of 38 mm diameter and 17.5 mm height further facilitate installation in confined spaces. The lightweight design weighs approximately 86 grams for ease of handling.

Mini open style toroidal transformer with low profile and small size. Dual standard tapped primary winding supports 115/230 V ac operation. Two secondary outputs each providing 12 V ac at 67 mA current. High temperature tolerance with maximum operating temperature at 180°C.

Double insulated primary leads ensure electrical safety. Very low radiated magnetic field with low induced noise (hum). Easy mounting using the potted centre with M4 fixing hole. Manufactured and tested according to EN61558, EN60950, EN60065, and VDE standards.

Compact size with diameter 38 mm and height 17.5 mm.

This Toroidal Transformer is ideal for applications in industrial electronic devices, power supplies, communication equipment, and laboratory instruments. It offers excellent performance for use in HVAC systems, manufacturing machinery, and water treatment control panels.
