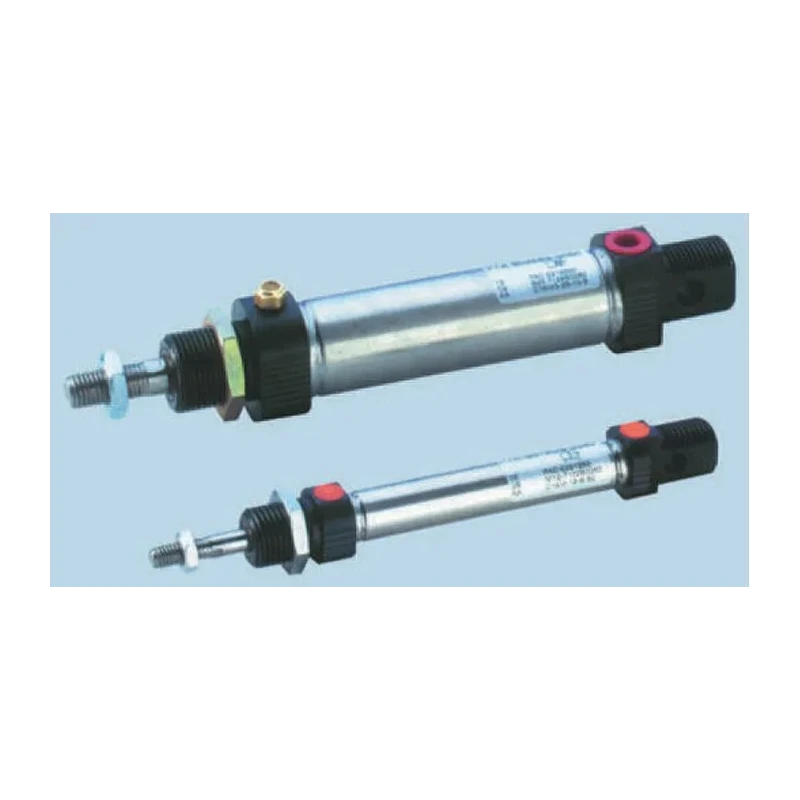

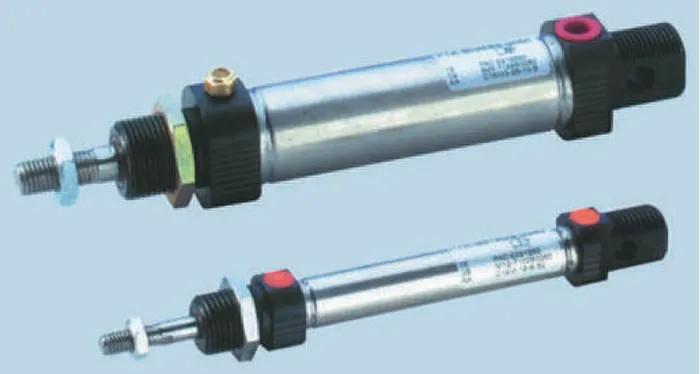

Parker 40 mm Pneumatic Piston Rod Cylinder Double Acting Surface Neck Mount with Buffer Cushioning P1A-S020DS-0040
Specifications
| Country of Origin | India |
|---|---|
| Brand | Parker |
| Body Material | Din x 5 Crni 18 10 (Cylinder Barrel), Stainless Steel, Anodised Aluminium (End Covers) |
| Operating Temperature | -20°C to +80°C |
| Length | 165mm |
| Model | P1A-S020DS-0040 |
| Operating Pressure | 10 bar max |
| Mount Type | Surface, Neck |
| Series | P1A |
| Medium | Compressed air, filtered, lubricated or non-lubricated |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 40mm |
| Action Type | Double Acting |
| Piston Rod | Stainless steel |
| Seals | Fluorocarbon/Nitrile rubber |
| Standards/Approvals | CETOP RP52P, ISO 6432 |
| Cushioning Type | Buffer |
| End covers | Anodised aluminium |
| Barrel | Stainless steel |
| SMC 40 mm Pneumatic Piston Rod Cylinder - CD85 Series, Double Acting ActingBrand | SMC |
| Double acting pneumatic cylinder,20x40mmBrand | NEUTRAL |
Key Features
- Constructed with stainless steel barrel and piston rod for corrosion resistance.
- End covers made from anodised aluminium provide durability and reduced weight.
- Buffered cushioning type ensures smooth operation and extended service life.
- Complies with CETOP RP52P and ISO 6432 standards for mini cylinders.
- Operates within a temperature range of -20°C to +80°C and maximum operating pressure of 10 bar.
- Designed for use with compressed air, both filtered and lubricated or non-lubricated.
- Surface and neck mount types for flexible installation.
- Ideal for industrial automation, manufacturing, fluid power, and pneumatic actuation applications.
Product Description
Parker P1A-S020DS-0040 pneumatic piston rod cylinder is a precision-designed 40 mm stroke double acting cylinder from the P1A series. This cylinder is engineered to deliver reliable pneumatic actuation in a compact, corrosion-resistant construction suitable for various industrial environments.
The cylinder barrel is made of stainless steel (DIN x 5 CrNi 18 10), while the end covers are anodised aluminium, balancing durability with lightweight characteristics. The piston rod is also stainless steel, ensuring longevity and resistance to wear.
Equipped with buffer cushioning at the end of stroke, this pneumatic cylinder ensures quieter operation and enhances the service life of the unit. The seals consist of fluorocarbon and nitrile rubber, providing effective sealing under operating conditions.
This mini cylinder is designed to conform to ISO 6432 and CETOP RP52P standards, assuring industry compatibility and performance. Operating temperature ranges from -20°C to +80°C, suitable for a variety of industrial applications. The maximum operating pressure is rated at 10 bar, optimized for compressed air usage either filtered, lubricated, or non-lubricated.
Constructed with corrosion resistant stainless steel barrel and piston rod. Anodised aluminium end covers enhance durability and reduce weight. Double acting operation enables precise control in pneumatic systems. Buffered cushioning for enhanced operational smoothness and extended life.
Meets CETOP RP52P and ISO 6432 standards for mini cylinders. Adaptable mounting options including surface and neck mounting. Seals made of fluorocarbon and nitrile rubber for effective sealing. Suited for industrial automation, manufacturing equipment, and fluid power systems.
This Parker Pneumatic Piston Rod Cylinder offers a combination of robustness, precision, and compatibility with various pneumatic systems used in manufacturing, industrial automation, and fluid power control. It is ideal for applications that demand reliable linear motion and actuator performance within moderate sizes and pressures.
Discover our extensive range of pneumatics and hydraulic products on EnvMart for quality-assured industrial solutions.
