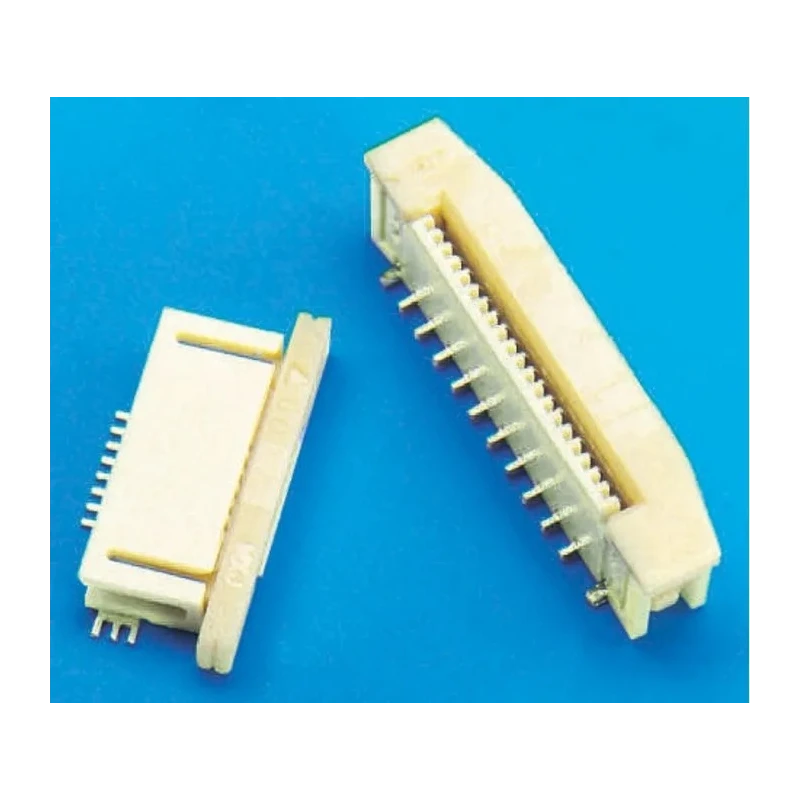

Molex 1 mm Pitch 18 Way Straight Female FPC Connector, Solder 52559-1853

Molex 52559-1853 is a 1 mm pitch 18 way straight female FPC connector, solder termination type, engineered for high-density, reliable flexible printed circuit (FPC) connections.

This surface mount connector features phosphor bronze contacts plated with gold over nickel, providing excellent electrical performance and corrosion resistance. The nylon housing offers durability suited to demanding industrial conditions.

The Zero Insertion Force (ZIF) slide type actuator design enables easy and damage-free insertion and removal of the FPC cable while maintaining a secure electrical connection. The vertical contact position and straight orientation facilitate compact PCB layout with a single row of 18 contacts.

Rated for 50 V voltage and 500 mA current, it supports low power signal and data transmission with safe operating temperatures from -20°C up to 85°C. The solder tabs on the base ensure strong PCB retention and provide strain relief for the solder joints, enhancing mechanical stability in applications subject to vibration.

This connector is ideal for integration in a broad array of industries including automotive electronics (navigation and audio systems), consumer devices (digital cameras, smartphones, tablets), medical instrumentation, and telecommunications equipment where compact, reliable interconnections are required.

The connector features an 18-contact configuration for versatile connectivity. It utilizes a 1 mm pitch with a straight orientation for optimal PCB integration. Constructed with phosphor bronze contacts plated with gold over nickel for superior conductivity and corrosion resistance.

Employs Zero Insertion Force (ZIF) technology with a slide type actuator to minimize wear and enable easy FPC insertion. The housing is made of durable nylon material, ensuring mechanical stability. Rated for a voltage of 50 V and a maximum current of 500 mA to support delicate signal transmissions.

Operating temperature range spans from -20°C to 85°C, suitable for various industrial environments. The connector has solder termination type with solder tabs for secure PCB retention and strain relief. Designed with a locking mechanism to maintain firm contact under vibration and movement.

Ideal for applications in automotive, consumer electronics, medical devices, and telecommunications equipment. Explore the extensive Molex portfolio for additional FPC Connectors and related interconnection solutions at EnvMart.
