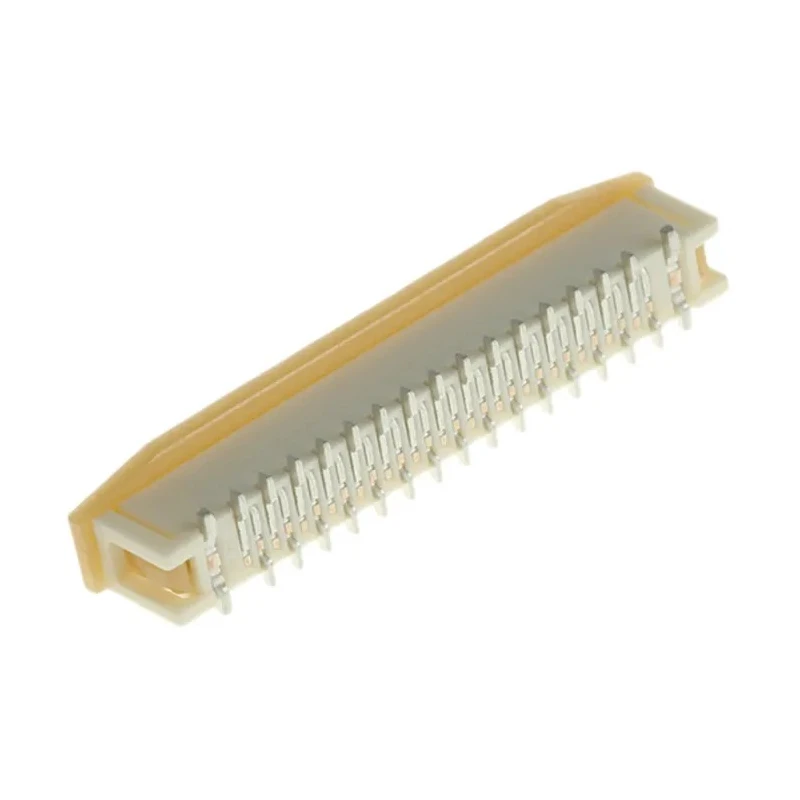

Molex 1 mm Pitch 30 Way Straight Female FPC Connector, Surface Mount, Gold Plated Contacts 52559-3052
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52559 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Vertical |
Key Features
- Features a 1mm pitch with 30 contacts for precise connectivity.
- Contacts are made of phosphor bronze with gold plating over nickel for durability.
- Surface mount type with solder termination ensures firm PCB retention.
- Utilizes a ZIF (Zero Insertion Force) slide type actuator for easy insertion and secure connection.
- Connector orientation is straight with vertical contact position to fit tight packaging.
- Operates between -20°C and 85°C for wide temperature range applications.
- Designed with a locking mechanism and nylon housing for robustness.
- Suitable for automotive, consumer electronics, datacommunications, medical devices, and mobile phones.
Product Description
Molex 52559-3052 FPC Connector is a 1 mm pitch, 30 way straight female connector featuring a surface mount Easy-On design. This connector is constructed with phosphor bronze contacts plated with gold over nickel, housed in durable nylon. The connector offers a Zero Insertion Force (ZIF) slide type actuator to facilitate easy and secure insertion of FFC/FPC flat flexible cables with reduced wear during repeated cycling.
The vertical contact position and straight orientation make it ideal for tight packaging applications requiring space-efficient solutions. It includes solder tabs on the base to secure the connector firmly to the PCB and to provide strain relief for solder joints, enhancing mechanical reliability in demanding industrial environments.
Operating voltage rating is 50 V AC with a current rating of 500 mA, supporting a range of low power signal applications. Its operational temperature range from -20°C to 85°C makes it suitable for various commercial and industrial environments.
This connector series is extensively used across automotive navigation and audio systems, digital cameras, home security devices, tablets, notebooks, patient monitoring equipment, GPS units, smartphones, and other portable consumer electronics. Its reliable contact retention and flexible contact movement help maintain electrical integrity even under flexing or vibration conditions common to these applications.
Compact and robust construction for high reliability. Slide actuator ensures minimal wear on contacts during insertion. Phosphor bronze and gold plating improve conductivity and corrosion resistance. Nylon housing provides excellent mechanical protection and insulative properties.
Designed for high-density signal and data interconnects using flat flexible cable technology. Provides secure locking mechanism to prevent accidental disconnection.
Available for use in electronics assembly, prototyping, and manufacturing sectors requiring reliable and space-saving flat flexible cable interconnections. This product contributes to the efficient design of modern electronic devices where space and performance are critical.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 1 mm pitch and has 30 contacts for precise connectivity.
The maximum operating temperature for this connector is 85°C.
It utilizes a surface mount type with solder termination to ensure firm PCB retention.
The contacts are made of phosphor bronze with gold plating over nickel, and the housing is made of nylon.
The current rating for this connector is 500 mA.
The operating voltage rating is 50 V AC.
It features a ZIF slide type actuator that allows for easy insertion of FFC/FPC flat flexible cables with reduced wear during repeated cycling.
The connector orientation is straight with a vertical contact position, making it suitable for tight packaging applications.
It is suitable for automotive, consumer electronics, datacommunications, medical devices, and mobile phones.
The minimum operating temperature is -20°C.
Yes, it includes a locking mechanism designed to prevent accidental disconnection.
The gold plating improves conductivity and corrosion resistance, enhancing the reliability of the electrical connections.
