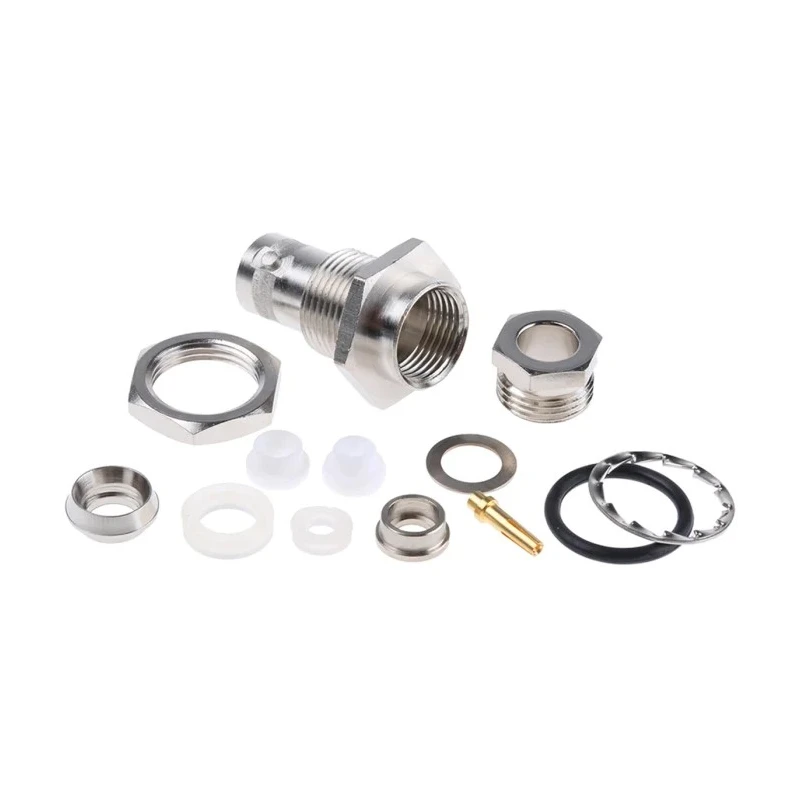

Telegartner BNC Series Coaxial Connector Panel Mount Female BNC 75 Ω Straight Body Clamp J01003A1224
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01003A1224 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Clamp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG59B/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| crimp BNC bulkhead jack - RG59 F cableBrand | Telegartner |
Key Features
- The connector features a panel mount type suitable for fixed installations.
- It has a 75 ohm impedance rating designed for RG59B/U cable compatibility.
- Gold-plated beryllium copper female contacts ensure excellent conductivity and corrosion resistance.
- Supports operating frequencies up to 4 GHz for video and data signal transmission.
- Nickel-plated body provides durability and reliable performance in harsh environments.
- Operates within a temperature range of -65°C to 165°C for wide industrial applicability.
- Utilizes a clamp termination type with a simple bayonet coupling for quick connection and disconnection.
- IP54 rated protection between mated plug and jack for environmental resilience.
Product Description
Telegartner J01003A1224 is a high-performance BNC series coaxial connector designed for panel mount applications with a female BNC coupling and 75 Ω impedance. This connector features a straight body clamp termination that facilitates secure and reliable cable attachment, ideal for professional video, data, and signal transmission systems. It is constructed with a nickel-plated body and gold-plated beryllium copper contacts for enhanced conductivity and resistance to wear and corrosion.
Designed to handle frequencies up to 4 GHz, the connector is suitable for a wide range of industrial, laboratory, broadcast, and telecommunications uses. The operating temperature range from -65°C to 165°C ensures stable performance in various environmental conditions.
This model offers an IP54 rating between mated plug and jack, providing dust and splash protection critical for outdoor or harsh environment installations. Its simple bayonet coupling mechanism allows quick quarter-turn connections, making it a versatile choice in electronic components.
Applications include signal transmission for video, data communication, and general-purpose RF connectivity in industrial and commercial sectors that require robust and precise connector solutions.
The connector's panel mount design enables easy integration into equipment panels and enclosures. Compatibility with RG59B/U cable type ensures standardization with widely used coaxial cables. Telegartner's BNC series connectors are trusted for precision and long-term reliability in demanding settings.
This product is manufactured in Germany, ensuring high quality and adherence to international standards. It is an indispensable component for anyone requiring reliable RF coaxial connections with consistent impedance and secure mechanical fastening.
Explore a wide selection of Coaxial Connectors and accessories from Telegartner and other industrial brands available at EnvMart for your electronic assembly and repair needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a 75 Ω impedance rating, making it compatible with RG59B/U cables.
It supports operating frequencies up to 4 GHz, suitable for video and data signal transmission.
This model is designed for use with RG59B/U cables, ensuring standardization in coaxial connections.
It operates within a temperature range of -65°C to 165°C, allowing for stable performance in various environments.
It utilizes a clamp termination type, which allows for secure and reliable cable attachment.
The contacts are made of gold-plated beryllium copper, ensuring excellent conductivity and corrosion resistance.
This model features a panel mount design, making it suitable for fixed installations in equipment panels and enclosures.
The body is nickel-plated, which contributes to its durability and performance in harsh environments.
This connector is a female BNC type, designed for use in various RF connectivity applications.
It has an IP54 rating, providing dust and splash protection between the mated plug and jack.
This connector is manufactured in Germany, ensuring adherence to high quality and international standards.
