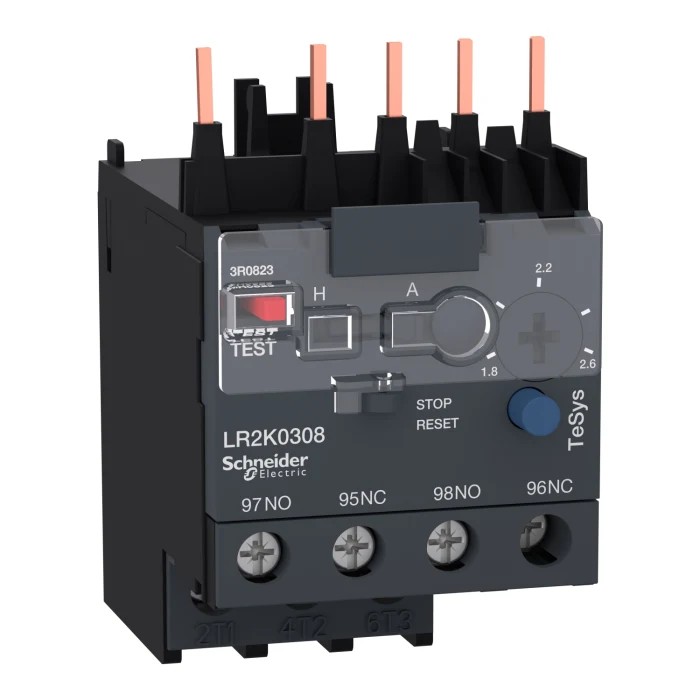

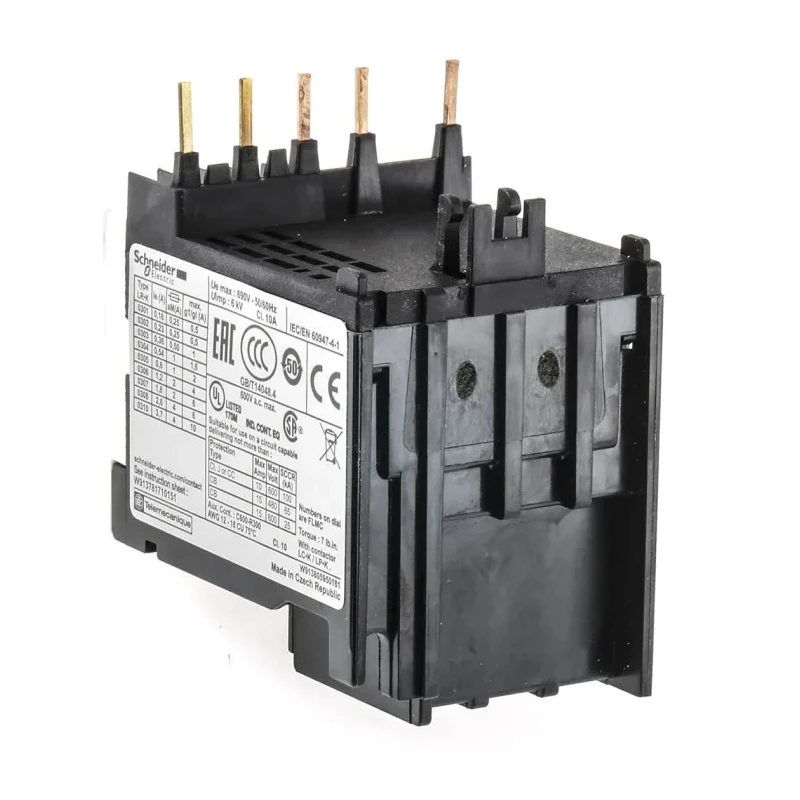

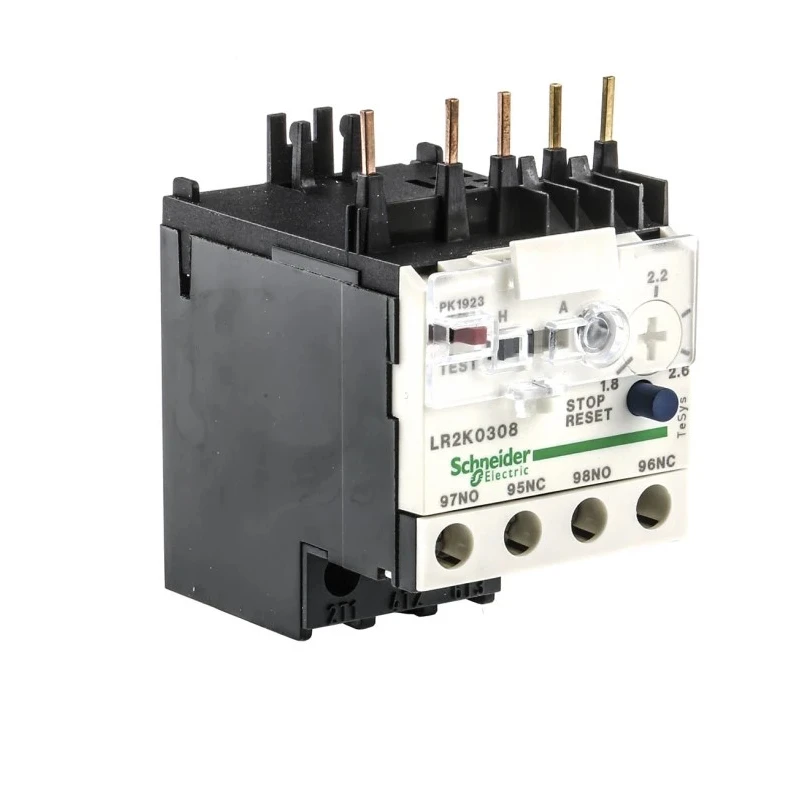

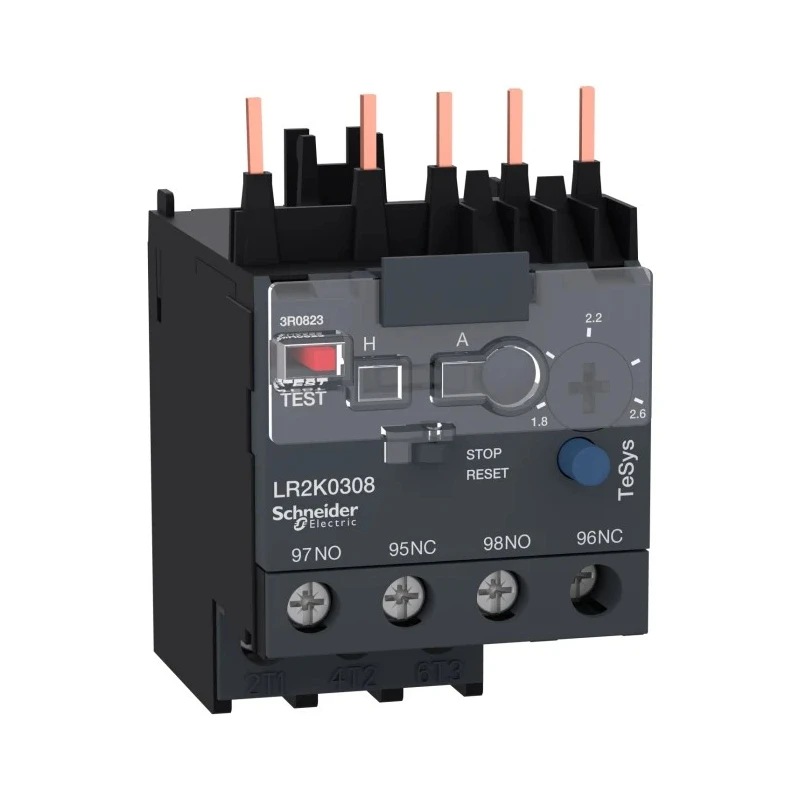

Schneider Electric TeSys Thermal Overload Relay, 1.8 - 2.6A, 1 NO/1 NC, 2W, 250V DC, 690V AC, LR2K0308
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Schneider Electric |
| Length | 116mm |
| Model | LR2K0308 |
| Depth | 65mm |
| IP Rating | IP2X |
| Width | 45mm |
| Mount Type | Contactor Mount |
| Series | TeSys |
| Power Rating | 2W |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Slip On Terminal |
| Supply Voltage | 110, 240V ac |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 2.6A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| Control Voltage | 250, 690V dc |
| FLC Motor Rating | 1.8, 2.6A |
Key Features
- Supports adjustable full load current rating from 1.8A to 2.6A for precise motor protection.
- Features 1 Normally Open (NO) and 1 Normally Closed (NC) contacts for versatile control circuit integration.
- Designed for contactor mounting with automatic and manual reset functionality for operational flexibility.
- Accommodates a supply voltage up to 690V AC and control voltage up to 250V DC for broad system compatibility.
- Compliant with international standards including CSA, EN/IEC, and UL 60947-5-1 for enhanced safety and reliability.
- Offers IP2X rated enclosure with robust construction for dependable use in demanding applications.
- Compact profile with 45mm width, 65mm depth, and 116mm length allows easy panel integration.
- Operates reliably in temperature ranges from -20°C to +55°C to suit various industrial needs.
Product Description
The Schneider Electric LR2K0308 TeSys Thermal Overload Relay is engineered for precise motor protection in a variety of automation and industrial control applications. Featuring a full load current range of 1.8 to 2.6 amps, this relay provides effective safeguarding of motors against overload and phase failure, ensuring extended equipment life and minimizing the risk of downtime.
Constructed with a compact footprint - measuring 45mm in width, 65mm in depth, and 116mm in length - this relay is optimally designed for integration into control panels where space is at a premium. The 1 NO + 1 NC contact configuration allows integration into complex control circuits, enabling direct protection and signaling functionality. Installation is straightforward thanks to its contactor mount compatibility, providing flexibility for system builders and maintenance personnel.
The LR2K0308 supports screw clamp terminal connections, contributing to durable, low-resistance electrical contact and simplified wiring. Its automatic and manual reset options enhance operational efficiency by accommodating distinct control and maintenance requirements.
Suitable for a wide input range, the relay operates at up to 690V AC contact voltage and accommodates control voltages up to 250V DC. These capabilities make it compatible with both AC and DC systems, ensuring adaptability across industrial, manufacturing, and commercial automation sectors. The device is also equipped with IP2X ingress protection, safeguarding sensitive components from accidental contact and certain foreign objects.
Built-in features such as reliable trip mechanisms and enhanced contact design provide consistent operation, reducing nuisance tripping and improving system continuity. The LR2K0308 is compliant with rigorous international standards, including CSA C22.2 No 60947-5-1, EN/IEC 60947-5-1, and UL 60947-5-1, ensuring dependable performance and safety for operators and equipment alike.
This relay operates within temperature ranges of -20°C to +55°C, making it suitable for harsh industrial environments. Its phase failure sensitivity further enhances its protection capabilities, and support for both solid and flexible cables simplifies installation and integration.
Commonly found in automation, motor control, process systems, manufacturing lines, and HVAC units, the LR2K0308 is a critical component for ensuring ongoing performance and protection in electrical motor-driven equipment. Schneider Electric's TeSys relay family is recognized for innovation, quality, and reliability across the globe.
Explore more in the Overload Relays category or browse Schneider Electric’s full range of industrial automation products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports an adjustable full load current rating from 1.8A to 2.6A, providing precise motor protection.
It accommodates a supply voltage of up to 690V AC and a control voltage of up to 250V DC, making it compatible with various systems.
This model features 1 Normally Open (NO) and 1 Normally Closed (NC) contact, allowing for versatile control circuit integration.
The relay has a compact profile with dimensions of 45mm in width, 65mm in depth, and 116mm in length, facilitating easy panel integration.
It operates reliably within a temperature range of -20°C to +55°C, suitable for various industrial environments.
This thermal overload relay is designed for contactor mounting, making installation straightforward for system builders.
The power rating for this relay is 2W, which is suitable for its operational requirements.
Yes, the LR2K0308 features both automatic and manual reset options, providing operational flexibility.
The relay has an IP2X ingress protection rating, safeguarding sensitive components from accidental contact and certain foreign objects.
It is compliant with CSA, EN/IEC, and UL 60947-5-1 standards, ensuring safety and reliability in operation.
The relay utilizes slip-on terminals, contributing to durable electrical contact and simplified wiring.
This thermal overload relay is commonly used in automation, motor control, process systems, manufacturing lines, and HVAC units.
