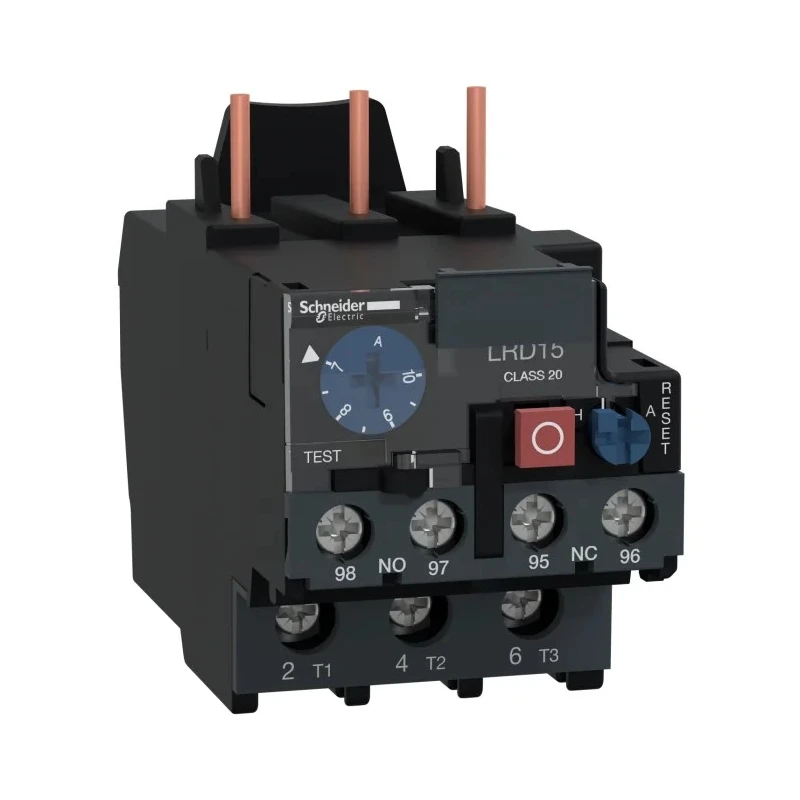

Schneider Electric TeSyS LR Thermal Overload Relay 1 NO/1 NC 10A Relay Contact Current 7 - 10 A Adjustable Current LRD1514
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 80mm |
| Model | LRD1514 |
| Depth | 66mm |
| IP Rating | IP20 |
| Width | 45mm |
| Series | TeSyS LR |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 690V |
| Contact Voltage | 1kV ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Better World Claim | Designed for Disassembly |
| Relay Contact Current | 10A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 10, 7A |
| Adjustable Current Range | 7 → 10 A |
| TeSys Class 20 O/L Relay, 4-6A currentBrand | Telemecanique |
Key Features
- Three-pole thermal overload relays protect motors from phase failure and prolonged stalling.
- Equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
- Adjustable current range dial from 7 to 10 amperes for precise motor protection.
- Terminal type is screw for secure wiring connections.
- Compact dimensions with 45 mm width, 80 mm length, and 66 mm depth.
- IP20 rated enclosure suitable for protected indoor environments.
- Operating temperature range from -20°C to 60°C for versatile applications.
- Manufactured in compliance with EN/IEC and UL standards ensuring safety and performance.
Product Description
Schneider Electric LRD1514 TeSyS LR Thermal Overload Relay is a robust three-pole relay designed to protect AC circuits against overloads, phase failures, long starting times, and extended motor stalling. It features a relay contact current rating of 10A and an adjustable current range from 7 to 10 amperes, supporting motors with power ratings up to 4 kW.
The device includes 1 normally open and 1 normally closed auxiliary contact, enhancing its flexibility in control circuits. The relay supports both automatic and manual reset methods, allowing for tailored operational control based on application needs.
This Thermal Overload Relay is built with screw type terminals ensuring secure and durable connections and comes with a sealable cover for added protection. With compact dimensions (45 mm width, 80 mm length, 66 mm depth) and an IP20 rating, it is suitable for use in a variety of industrial and commercial electrical panels.
Operating reliably in a temperature range from -20°C to 60°C, it complies with major certifications such as EN/IEC 60947-4-1, CSA C22.2, and UL standards, ensuring high safety and performance reliability across diverse environments.
As a Better World Product, it is designed for sustainability, offering easy disassembly for recycling purposes. It is suitable for applications in electrical installation, automation systems, manufacturing plants, and HVAC motor protection.
Three-pole design providing comprehensive motor overload protection. 1 NO and 1 NC auxiliary contacts for control and indication circuits. Adjustable current setting dial with 7 to 10 A range. Automatic and manual reset capability.
Screw terminal connections for secure wiring. Compact size with IP20 protection rating. Wide operating temperature range (-20°C to 60°C). Compliance with EN/IEC, CSA, and UL standards. Better World designation for environmentally responsible design.
Suitable for industrial, automation, and motor protection applications. Explore the comprehensive range of Schneider Electric products on EnvMart for optimized electrical system solutions and industrial automation equipment.
