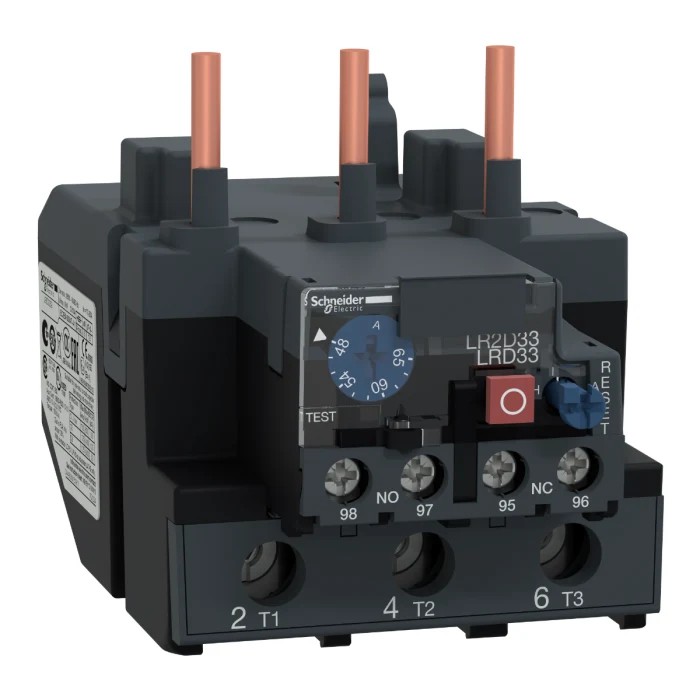

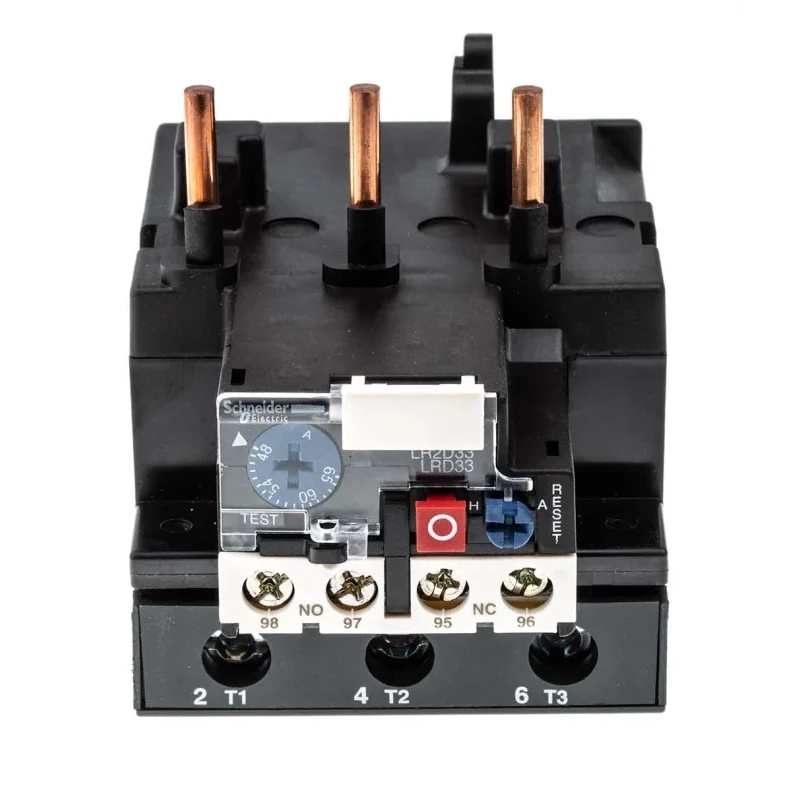

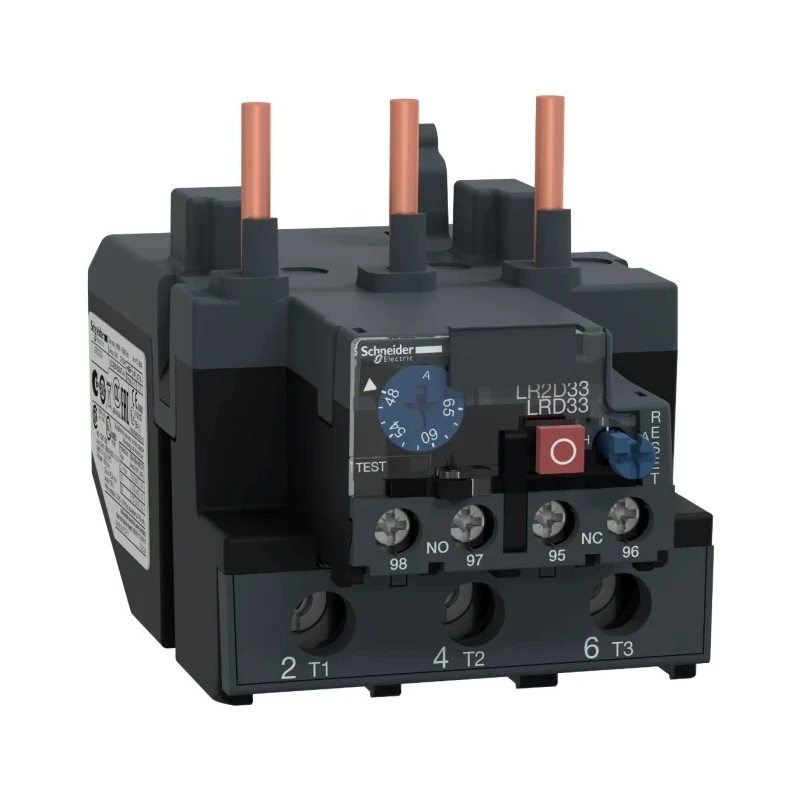

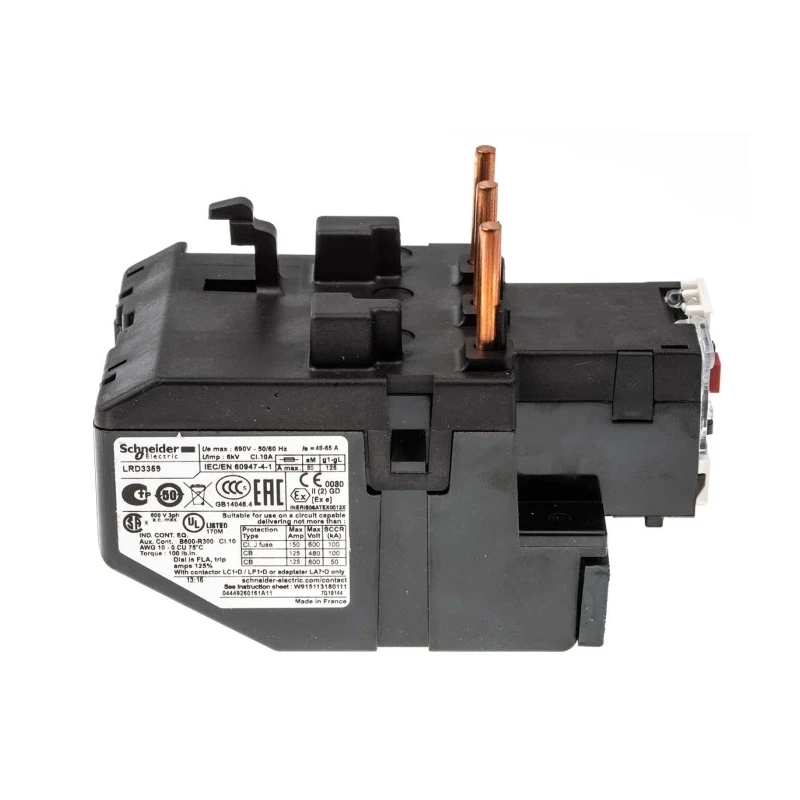

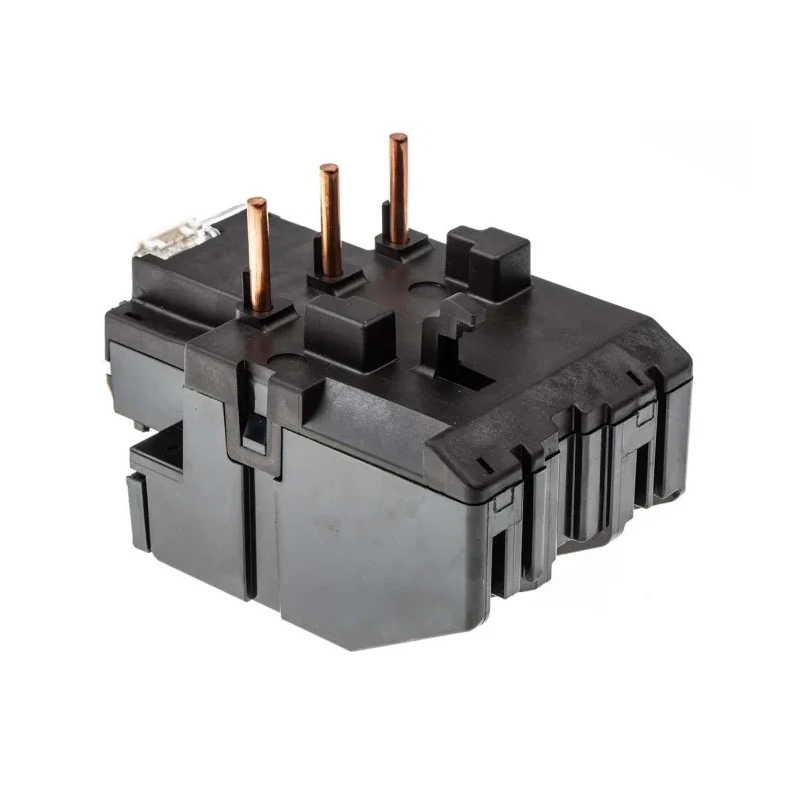

Schneider Electric LRD Thermal Overload Relay 1 NO/1 NC, 48A to 65A FLC, 65A Contact Rating, 30kW Power, 6kV Control LRD3359
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 115mm |
| Model | LRD3359 |
| Depth | 81mm |
| IP Rating | IP20 |
| Width | 70mm |
| Mount Type | Direct |
| Series | LRD |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 1kV |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Better World Claim | Designed for Disassembly |
| Relay Contact Current | 65A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| Control Voltage | 6kV |
| FLC Motor Rating | 48, 65A |
| Adjustable Current Range | 48 → 65 A |
| O/L RELAY SIZE3 48-65ABrand | Telemecanique |
Key Features
- Adjustable current range from 48 to 65 amps for precise motor protection.
- Rated contact current is 65 amps ensuring robust operation in industrial settings.
- Power rating up to 30 kilowatts supports various motor applications.
- Dual reset methods including automatic and manual for operational flexibility.
- Screw terminal connections providing secure and reliable wiring options.
- Compact dimensions of 70mm width, 81mm depth, and 115mm length for easy mounting.
- Operating temperature range from -20°C to 60°C suitable for diverse environments.
- Equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for control integration.
Product Description
Schneider Electric LRD3359 Thermal Overload Relay is engineered for reliable motor circuit protection, supporting motor ratings from 48 to 65 amps with a contact rating of 65 amps and power capacity of 30 kW. This relay features a robust design to withstand operational temperatures ranging from -20°C to 60°C and incorporates automatic and manual reset options to suit various industrial scenarios.
The device is equipped with screw terminals for secure wiring and 1 normally open plus 1 normally closed auxiliary contacts for enhanced control capabilities. Its compact form factor (70mm by 81mm by 115mm) fits easily for direct mounting on suitable contactors, including the Schneider Electric LC1D80 and LC1D95 series.
The LRD3359 supports supply voltages of up to 1 kV for the power circuit and control voltage of 6 kV, assuring compatibility with demanding operational environments. This relay also conforms to rigorous international standards such as EC, EAC, DNV-GL, CSA C22.2 No 60947-5-1, UL 60947-4-1, and IEC 60947 series ensuring compliance and safety.
This thermal overload relay incorporates temperature compensation and responds effectively to phase failures with a trip threshold at 130% rated current to safeguard motors against overloads. Its IP20 protection rating and compact dimensions make it suitable for use in industrial automation, manufacturing, HVAC systems, and electrical panel applications.
Adjustable current range from 48 to 65 amps for precise motor protection. Rated contact current is 65 amps ensuring robust operation in industrial settings. Power rating up to 30 kilowatts supports various motor applications.
Dual reset methods including automatic and manual for operational flexibility. Screw terminal connections providing secure and reliable wiring options. Compact dimensions of 70mm width, 81mm depth, and 115mm length for easy mounting.
Operating temperature range from -20°C to 60°C suitable for diverse environments. Equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for control integration. Compliance with multiple international standards including IEC, UL, CSA, and others.
Designed for direct mounting on contactors like LC1D80 and LC1D95 to streamline panel assembly.
This thermal overload relay is ideal for heavy-duty AC and DC motor protection in industries including manufacturing, HVAC, water treatment, and industrial automation. It facilitates reliable motor safety, energy efficiency, and operational longevity for critical electrical equipment.
Explore Schneider Electric products and similar Overload Relays at EnvMart for professional industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable current range of this thermal overload relay is from 48 to 65 amps.
The rated contact current for the LRD3359 is 65 amps, ensuring robust operation in industrial settings.
This model supports a power rating of up to 30 kilowatts, suitable for various motor applications.
The relay features dual reset methods, including both automatic and manual options for operational flexibility.
The operating temperature range for this relay is from -20°C to 60°C, making it suitable for diverse environments.
It uses screw terminal connections, providing secure and reliable wiring options.
The dimensions of the LRD3359 are 70mm in width, 81mm in depth, and 115mm in length.
This model is equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for control integration.
Yes, it is designed for direct mounting on suitable contactors, including the Schneider Electric LC1D80 and LC1D95 series.
The IP rating of the LRD3359 is IP20, indicating its level of protection against dust and moisture.
The maximum supply voltage for this relay is 1 kV, ensuring compatibility with demanding operational environments.
This relay complies with multiple international standards, including IEC, UL, and CSA, ensuring safety and compliance.
