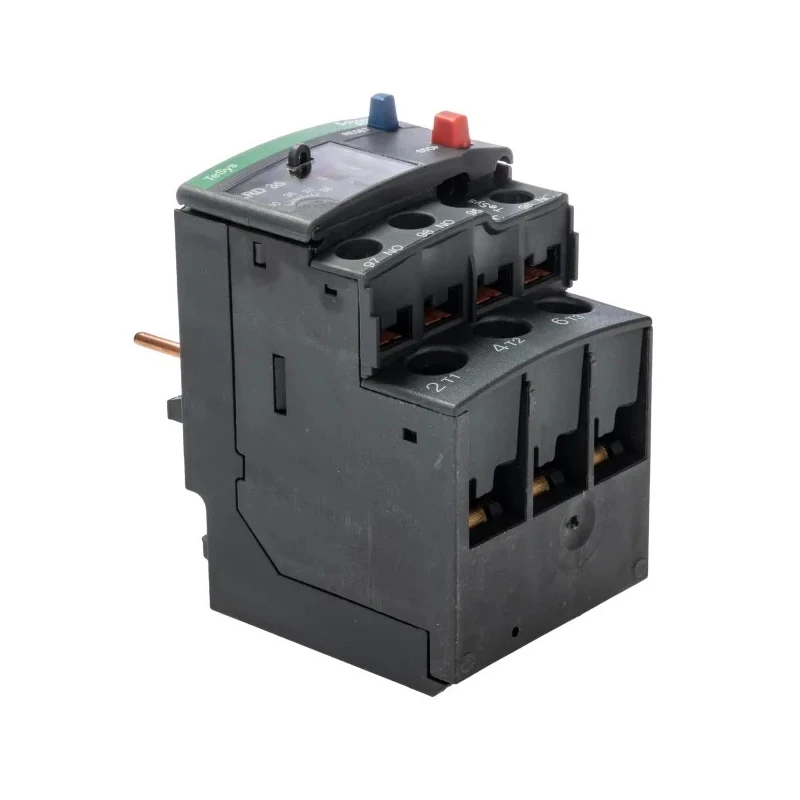

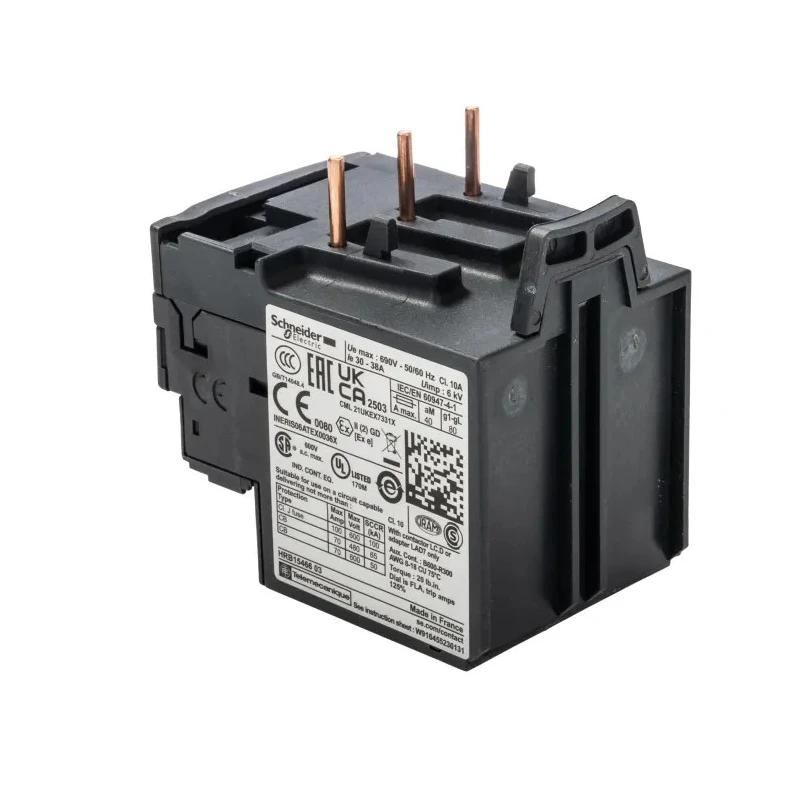

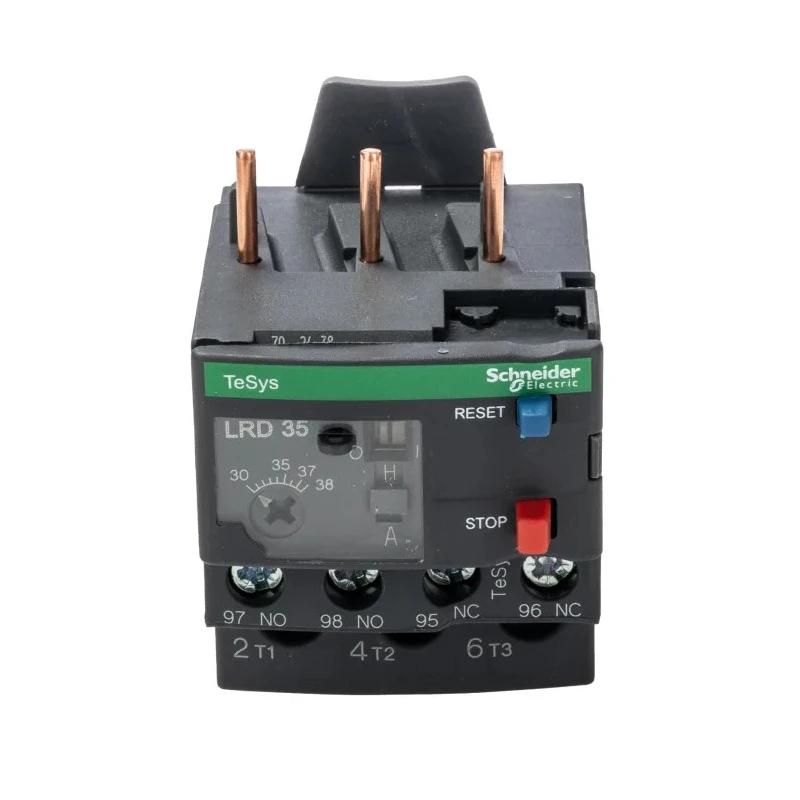

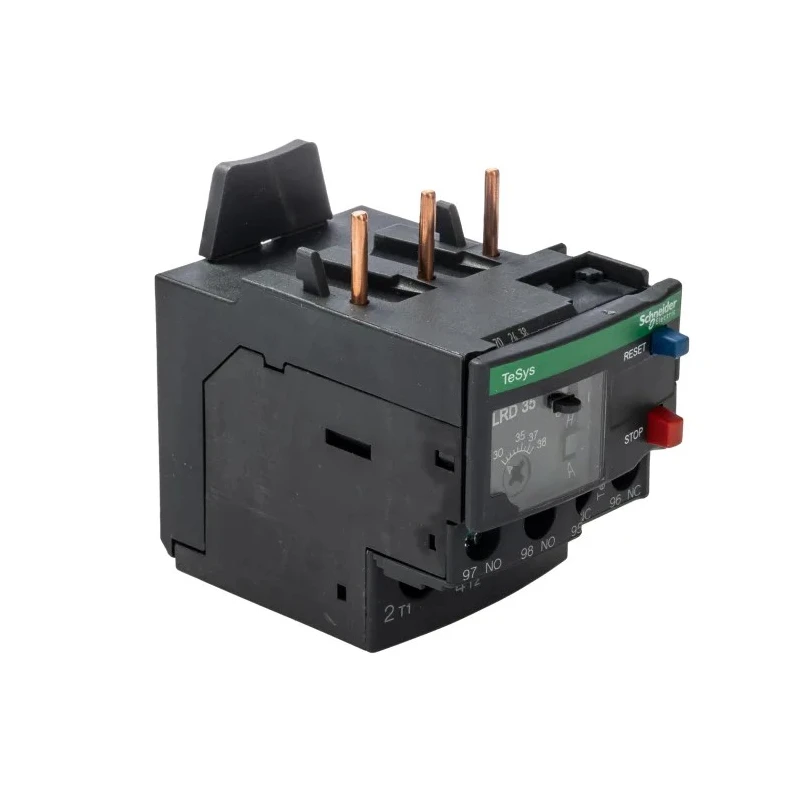

Schneider Electric Thermal Overload Relay 1 NO/1 NC, 30-38 A FLC, 38A Contact Current, 18.5 kW Power Rating, Contactor LRD35
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 137mm |
| Model | LRD35 |
| Depth | 70mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Contactor Mount |
| Series | LRD |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 38A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 30, 38A |
| Adjustable Current Range | 30 → 38 A |
| Thermal overload relay,30-40A FLC rangeBrand | Schneider Electric |
Key Features
- Rated contact current of 38A ensures dependable switching performance.
- Automatic and manual reset features enhance operational flexibility.
- Suitable for motor power up to 18.5 kW for three-phase applications.
- Compact dimensions with 137 mm length and 45 mm width aid in easy installation.
- Designed for under-contactor mounting with screw clamp terminals for secure connections.
- IP20 rating protects against solid objects ensuring device longevity.
- Operational temperature range from -20°C to 60°C enables reliability in harsh environments.
- Conforms to international standards including IEC and UL for quality assurance.
Product Description
Schneider Electric LRD35 Thermal Overload Relay provides dependable motor overload protection with a 1 NO/1 NC relay contact configuration and a relay contact current rated at 38A. Designed for 3-phase motor protection applications, it supports a motor power rating of up to 18.5 kW and accommodates an adjustable current range from 30 to 38 A.
This relay features screw clamp terminals that ensure secure connections and supports both automatic and manual reset methods, allowing for flexible operation depending on application needs. The device meets IP20 protection standards for safeguarding against solid objects and is compliant with international standards such as EN/IEC 60947 and UL certifications, ensuring high performance and reliability.
The compact form factor with dimensions of 137 mm length, 45 mm width, and 70 mm depth facilitates easy mounting under contactors. It operates reliably across a wide temperature range from -20°C to +60°C, making it suitable for harsh industrial environments.
Commonly employed in industrial motor protection circuits, the LRD35 relay is compatible with LC1D32 and LC1D38 contactors and supports thermal protection of electrical motors. It is widely used in DC and AC networks for thermal overload protection and rail mounting configurations.
Rated for 1 NO/1 NC contacts with 38A contact rating. Adjustable current range from 30 A to 38 A for versatile motor protection. Automatic and manual reset methods for operational flexibility. Compact design with screw clamp terminals for easy installation.
IP20 rated enclosure for protection against solid foreign objects. Temperature operating range from -20°C to +60°C ensures dependable performance. Compliant with IEC 60947 and UL standards for quality and safety. Supports motor power ratings up to 18.5 kW for 3-phase systems.
Includes 2 auxiliary contacts for extended control functionality.
Schneider Electric LRD35 Thermal Overload Relay is an ideal choice for industrial, manufacturing, HVAC, and commercial applications requiring efficient motor overload protection. Explore the full range of Schneider Electric Relays and Contactors at EnvMart for your automation and control needs.
Explore more products in our Overload Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated contact current of this thermal overload relay is 38A.
It supports a motor power rating of up to 18.5 kW for three-phase applications.
The adjustable current range for this relay is from 30 A to 38 A.
This model supports both automatic and manual reset methods for operational flexibility.
The dimensions of this relay are 137 mm in length, 45 mm in width, and 70 mm in depth.
It has an IP20 rating, which protects against solid objects.
Yes, it is compatible with LC1D32 and LC1D38 contactors.
The operational temperature range is from -20°C to +60°C, ensuring reliability in harsh environments.
It includes 2 auxiliary contacts for extended control functionality.
This model is designed for contactor mounting with screw clamp terminals for secure connections.
It conforms to international standards including IEC 60947 and UL certifications for quality assurance.
The normal state configuration of the relay is 1 NO (Normally Open) and 1 NC (Normally Closed).
