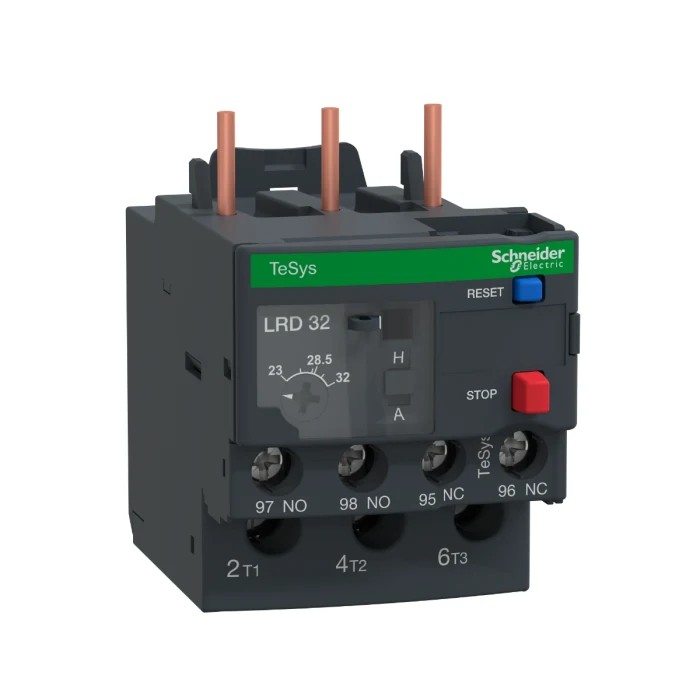

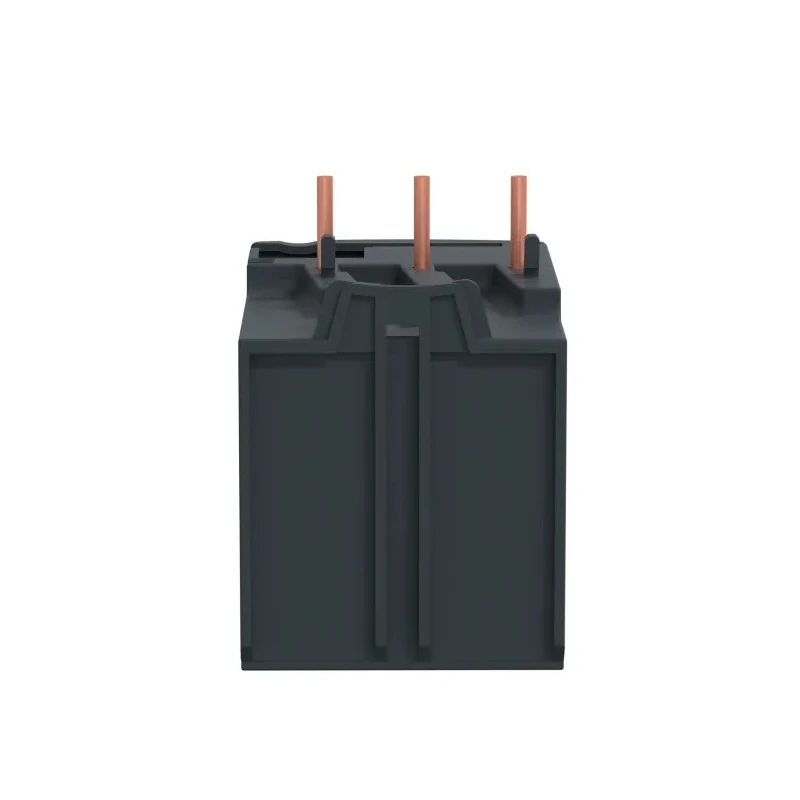

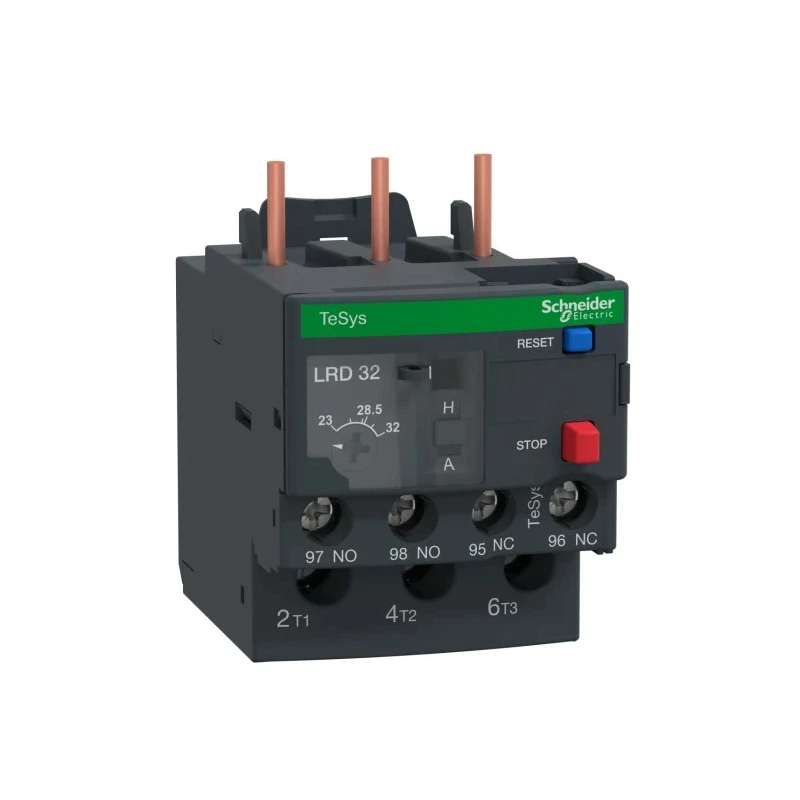

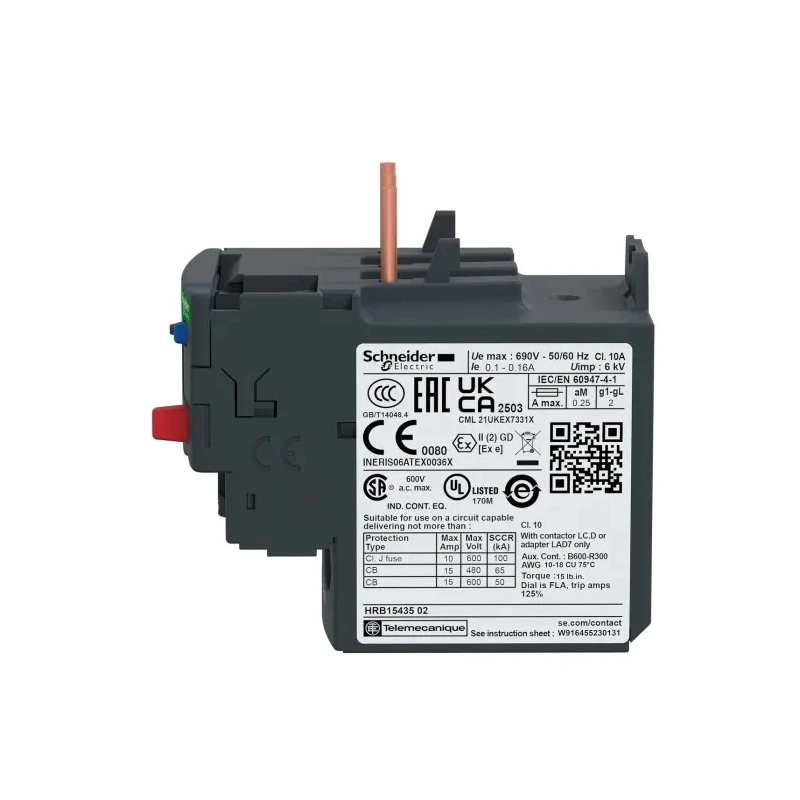

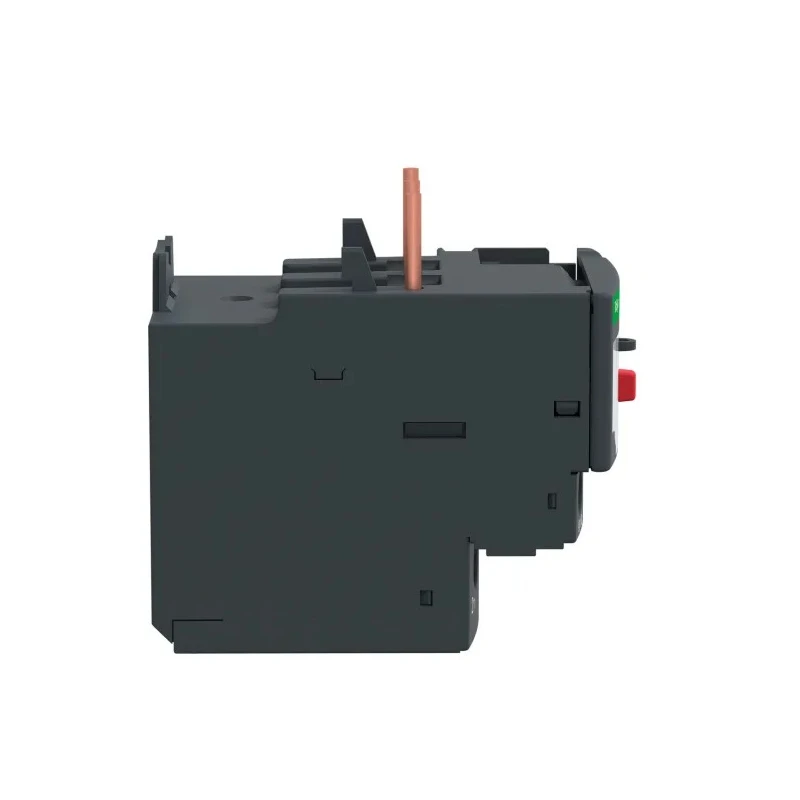

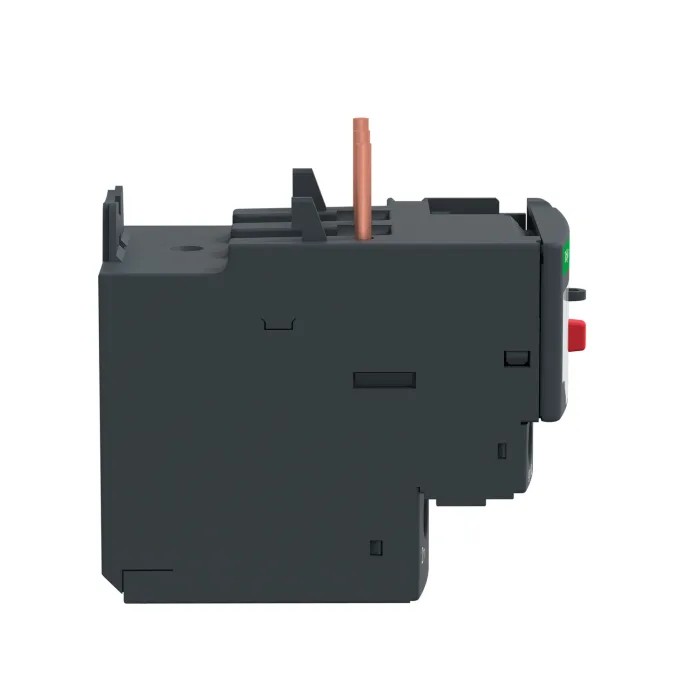

Schneider Electric Thermal Overload Relay 1 NO/1 NC, 23A to 32A F.L.C, 32A Contact Rating, 690V AC, 3-Pole LRD32
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 66mm |
| Model | LRD32 |
| Depth | 70mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | LRD |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 690V ac |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 23, 32A |
| Adjustable Current Range | 23 → 32 A |
| Telemecanique Overload Relay NO/NC, 23 → 32 A F.L.C, 32 A Contact RatingBrand | Telemecanique |
| Schneider Electric DOL Starter, DOL, 18.5 kW, 690 V ac, IP657Brand | Schneider Electric |
Key Features
- Thermal overload relay with one normally open and one normally closed contact.
- Adjustable motor rating between 23A and 32A for flexible protection.
- Suitable for 3-pole configurations handling up to 690V AC supply voltage.
- Equipped with screw terminals for secure wiring connections.
- Features automatic and manual reset methods for reliable operation.
- Operation temperature range from -20°C to 60°C ensures broad usability.
- Compact dimensions of 66mm length, 45mm width, and 70mm depth.
- IP20 rated for basic protection against solid objects.
Product Description
Schneider Electric LRD32 thermal overload relay is a robust industrial relay designed to protect motors from overload by automatically interrupting power during abnormal current conditions. It provides adjustable motor full load current (FLC) settings between 23 amperes and 32 amperes, making it adaptable to various motor specifications.
This relay features a 3-pole, 1 normally open (NO) and 1 normally closed (NC) contact configuration, ensuring versatile use in control circuits. It operates effectively within a wide temperature range of -20°C to 60°C and supports supply voltages up to 690V AC, suitable for demanding industrial environments.
The device has a compact form factor measuring 66mm in length, 45mm in width, and 70mm in depth. Its IP20 rating provides basic protection against solid foreign objects, making it ideal for standard industrial settings. The built-in screw terminals allow for secure and reliable wiring connections.
Equipped with both automatic and manual reset methods, this relay facilitates operational flexibility and safety. Two auxiliary contacts further enhance its control capabilities in motor protection setups.
Certified by multiple international standards including CSA, UL, EN/IEC 60947 series, DNV-GL, EAC, and EC approvals, Schneider Electric’s LRD32 meets stringent industrial safety and performance standards.
This thermal overload relay is commonly used to protect motors in industrial automation, manufacturing plants, HVAC systems, and electrical control panels. It can be mounted directly beneath contactors such as the LC1D25, LC1D32, and LC1D38 for a compact and efficient motor starter assembly.
Thermal overload protection with adjustable current range from 23A to 32A. One normally open and one normally closed auxiliary contact for control versatility. Wide operating temperature range from -20°C to 60°C. Compatible with 3-pole electrical configurations.
Rated for 690V AC supply voltage. Screw terminal connections for secure installation. Automatic and manual reset functions for operational flexibility. Compact dimensions: 66mm length, 45mm width, 70mm depth. IP20 protection rating suitable for industrial use.
Certified to global standards including UL, CSA, IEC, DNV-GL, EAC, and EC. Explore more Schneider Electric products and contactors at EnvMart for reliable automation and control gear solutions.
Explore more products in our Overload Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable current range for this thermal overload relay is between 23A and 32A.
This model can handle a maximum supply voltage of 690V AC.
The LRD32 features a configuration of one normally open (NO) and one normally closed (NC) contact, along with two auxiliary contacts.
The dimensions of this relay are 66mm in length, 45mm in width, and 70mm in depth.
The operating temperature range for this unit is from -20°C to 60°C.
The relay can be reset using either automatic or manual reset methods, providing operational flexibility.
This relay uses screw terminal connections for secure wiring.
The IP rating of this thermal overload relay is IP20, providing basic protection against solid objects.
The LRD32 is commonly used to protect motors in industrial automation, manufacturing plants, HVAC systems, and electrical control panels.
This model is designed for direct mounting beneath contactors such as the LC1D25, LC1D32, and LC1D38.
This thermal overload relay is certified by multiple international standards including CSA, UL, EN/IEC 60947 series, DNV-GL, EAC, and EC approvals.
The relay contact current rating is 32A.
