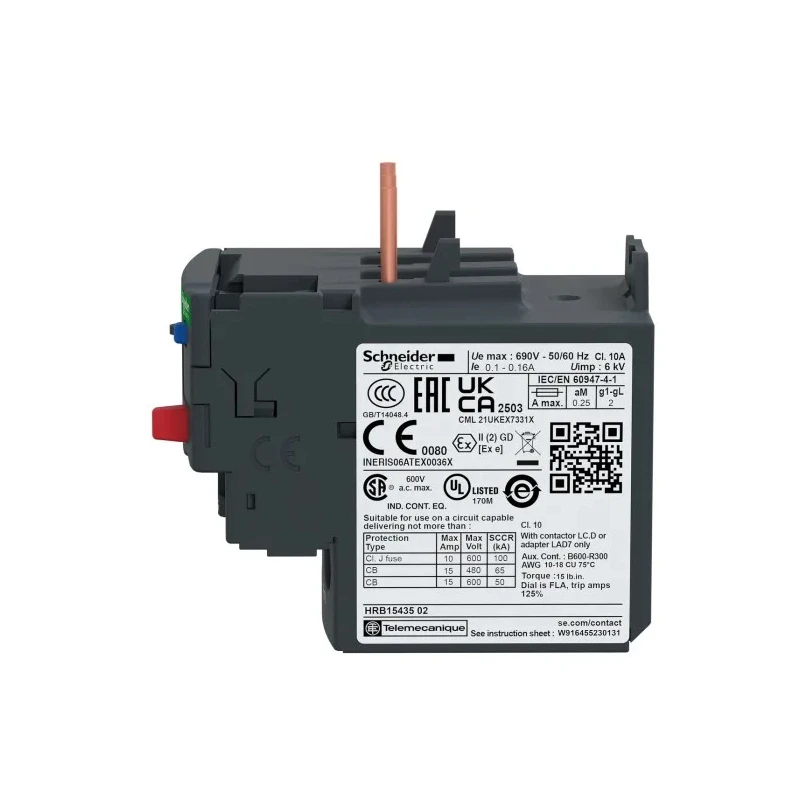

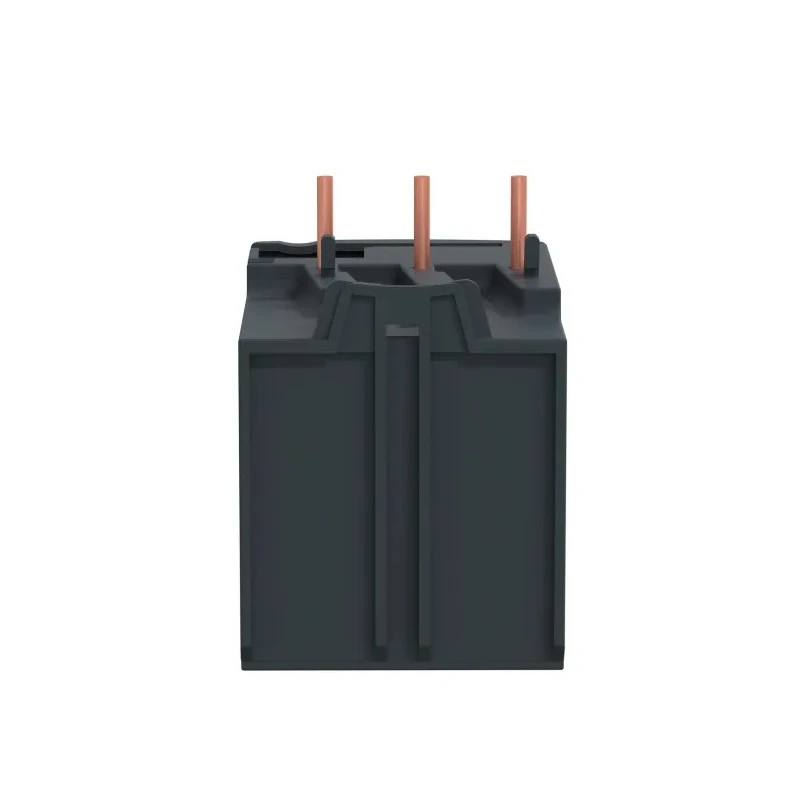

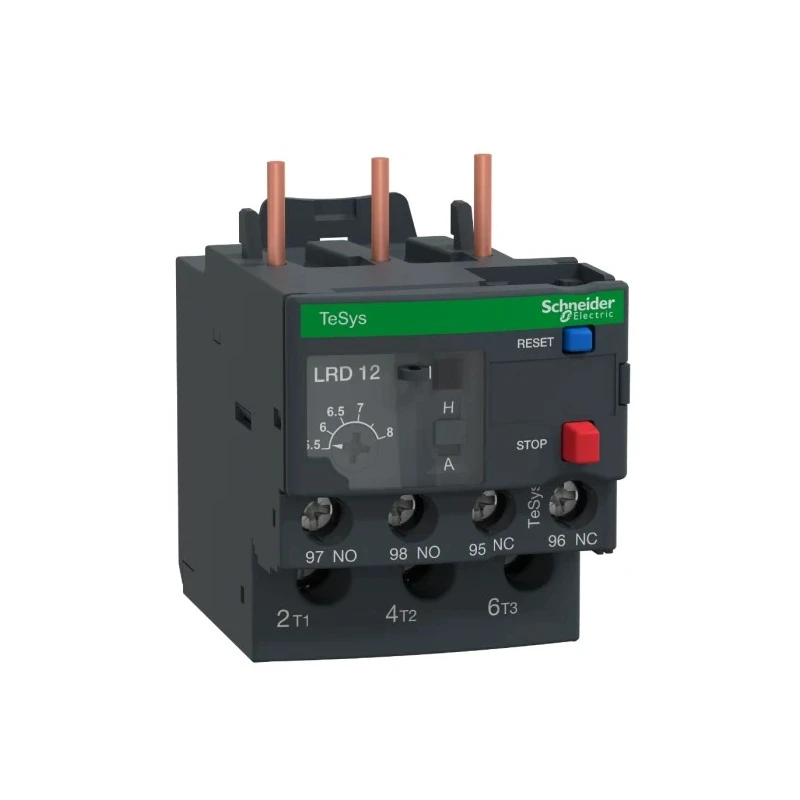

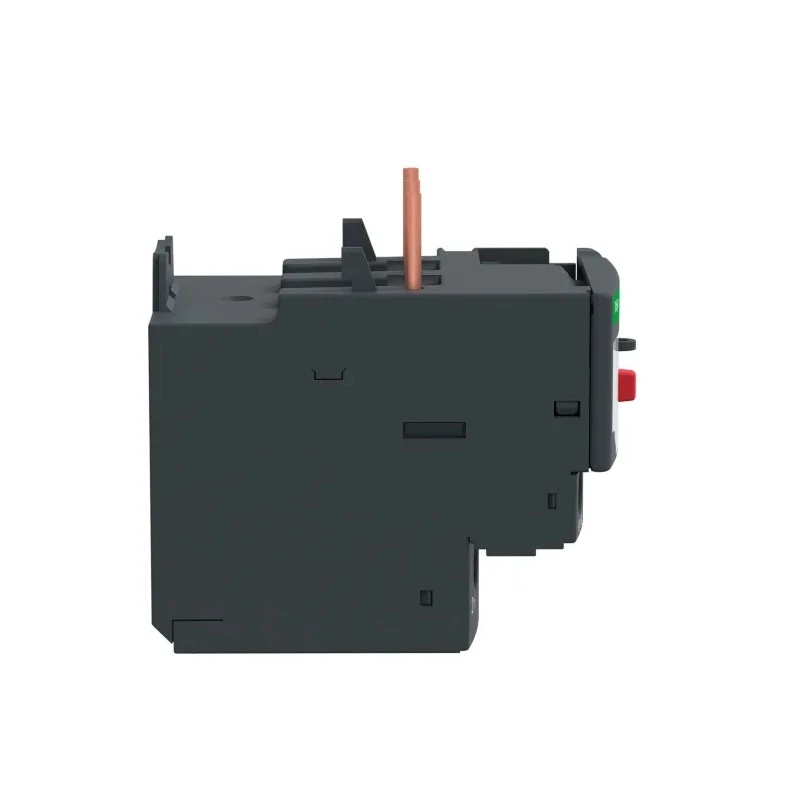

Schneider Electric LRD Overload Relay 1 NO/1 NC 5.5-8A FLC 8A Contact Rating 3 kW 690V LRD12

Schneider Electric LRD12 Overload Relay 1 NO/1 NC is a high-quality electrical component designed for motor overload protection in industrial and commercial applications. Rated for a motor full load current range of 5.5 to 8A and a power rating of 3 kW, this relay provides essential safety to prevent motor damage from excessive current.

With a contact rating of 8A and a contact voltage capacity of 690V AC, the relay features a 3-pole configuration for effective circuit control. Mounting directly and equipped with screw terminal connections, it allows straightforward installation and maintenance. The relay supports both automatic and manual reset methods, enhancing its usability in various operational scenarios.

Its compact dimensions of 66mm length, 45mm width, and 70mm depth facilitate easy integration into control panels. The device is rated IP20, suitable for environments where protection against solid foreign objects is needed.

The LRD12 relay complies with multiple international certifications including UL 60947-4-1 and IEC 60947-5-1, ensuring high reliability and quality. Thermal protection class 10A helps reduce motor burnout risks by tripping when current exceeds set limits. It is designed to operate efficiently within a temperature range from -20°C to 60°C.

This overload relay is ideal for use in industrial motor control systems, HVAC setups, manufacturing equipment, and water treatment plants where motor safety and operational reliability are critical. It is commonly used alongside contactors to enhance the protection circuitry.

Features a 3-pole configuration for versatile connectivity. Automatic and manual reset methods provide reliable operation. Screw terminal connections ensure secure wiring. Adjustable current range supports motors rated 5.5 to 8A.

High contact rating of 8A at 690V AC. Compact size allows for easy installation. IP20 protection rating suitable for industrial environments. Meets international UL, IEC, and CSA standards for quality assurance. Thermal protection class 10A prevents motor overheating.

Temperature tolerance from -20°C to 60°C. Applications include motor control panels, manufacturing, HVAC, and water treatment. Explore more Schneider Electric products and Overload Relays for reliable motor protection on EnvMart.
