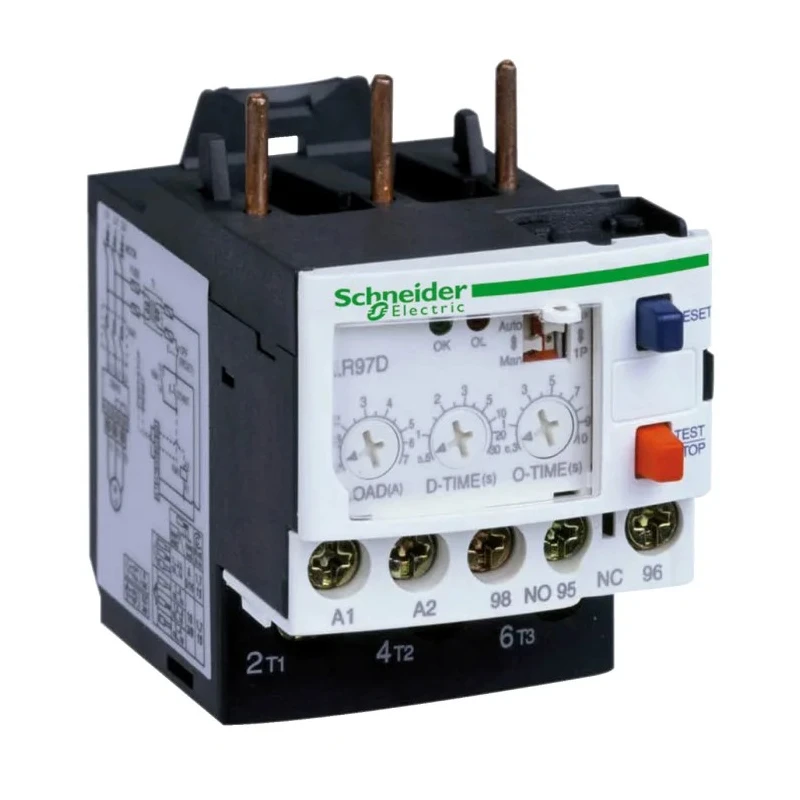

Schneider Electric D Overload Relay, 1 NO/1 NC, 1.2A to 7A Adjustable Current, 7A Relay Contact Current, 55W Power LR97
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 64.5mm |
| Model | LR97 |
| Depth | 67.5mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | LR97 D |
| Power Rating | 55W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Supply Voltage | 100, 120V ac |
| Standards/Approvals | UL, IEC 60947, IEC 60255-6, GOST, CSA |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 7A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 1.2, 7A |
| Adjustable Current Range | 1.2 → 7 A |
| LED status indication | Voltage, Starting, Steady State, Overload, Trip |
| Trip status monitored | Over-Current, Rotor Locked, Phase Failure (L1, L2, L3) |
Key Features
- Adjustable current range from 1.2 to 7 amperes for precise relay settings.
- Features 1 Normally Open (NO) and 1 Normally Closed (NC) contacts for control flexibility.
- Provides a power rating of 55 watts suitable for industrial applications.
- Equipped with LED indicators for voltage, starting, steady state, overload, and trip statuses.
- Trip status monitoring includes over-current, rotor locked, and phase failure detection for enhanced safety.
- Automatic and manual reset methods increase operational convenience.
- Compact dimensions of 64.5mm length, 45mm width, and 67.5mm depth for easy installation.
- IP20 protection rating suitable for standard industrial environments.
Product Description
Schneider Electric LR97D07F7 Overload Relay is a high-quality protective device designed to meet demanding machine protection requirements. This electronic overload relay caters to machinery subject to difficult starting conditions, mechanical failures, high resistive torque, and high inertia loads. It offers precise current adjustment from 1.2 to 7 amperes, enabling tailored protection for various motor ratings.
The relay includes one Normally Open (NO) and one Normally Closed (NC) contact configuration, facilitating versatile control circuit designs. Power rating of 55 watts supports effective overload protection in industrial applications. LED status indicators clearly convey voltage presence, starting, steady operating state, overload conditions, and trip events for easy visual diagnostics.
Trip status monitoring capabilities include detection of over-current, rotor lock, and phase failures across all three phases (L1, L2, L3), enhancing operational safety and reliability. Operators can choose between automatic and manual reset modes based on maintenance requirements. The relay is rated at IP20 for protection against solid intrusion and physical contact in typical industrial environments.
Compact form factor measuring 64.5 mm in length, 45 mm in width, and 67.5 mm in depth allows straightforward installation within control panels. It operates efficiently with 100 to 120 volts AC supply voltages. Certifications to standards UL, IEC 60947, IEC 60255-6, GOST, and CSA confirm global compliance and quality assurance.
This overload relay is ideally suited for industrial, manufacturing, electrical automation, and machinery protection uses, providing reliable motor control and enhanced operational safety.
Adjustable current range from 1.2 to 7 amperes for precise relay settings. 1 NO and 1 NC contact configuration for control versatility. 55 watts power rating suitable for robust industrial use. LED indicators for operational and fault status monitoring.
Trip status detection for over-current, rotor lock, and phase failure. Automatic and manual reset options improve operational flexibility. Compact dimensions for easy panel integration. IP20 protection rating for standard industrial environments.
Supports 100 to 120 volts AC supply voltage. Certified to multiple international standards ensuring quality and safety. Explore the full range of Schneider Electric Overload Relays and related electrical automation products at EnvMart for enhanced industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable current range of this overload relay is from 1.2 to 7 amperes, allowing for tailored protection settings.
It features one Normally Open (NO) and one Normally Closed (NC) contact configuration, providing flexible control options.
The power rating of this overload relay is 55 watts, suitable for industrial applications.
The LED indicators provide visual diagnostics for voltage presence, starting, steady state, overload conditions, and trip events.
It monitors trip status for over-current, rotor lock, and phase failures across all three phases (L1, L2, L3).
This model operates efficiently with supply voltages of 100 to 120 volts AC.
The overload relay has an IP20 protection rating, suitable for standard industrial environments.
The dimensions are 64.5 mm in length, 45 mm in width, and 67.5 mm in depth.
It offers both automatic and manual reset methods, enhancing operational convenience.
The maximum operating temperature is 60°C, while the minimum operating temperature is -25°C.
This model is certified to multiple standards, including UL, IEC 60947, IEC 60255-6, GOST, and CSA.
The relay contact current rating is 7 amperes, suitable for effective motor protection.
