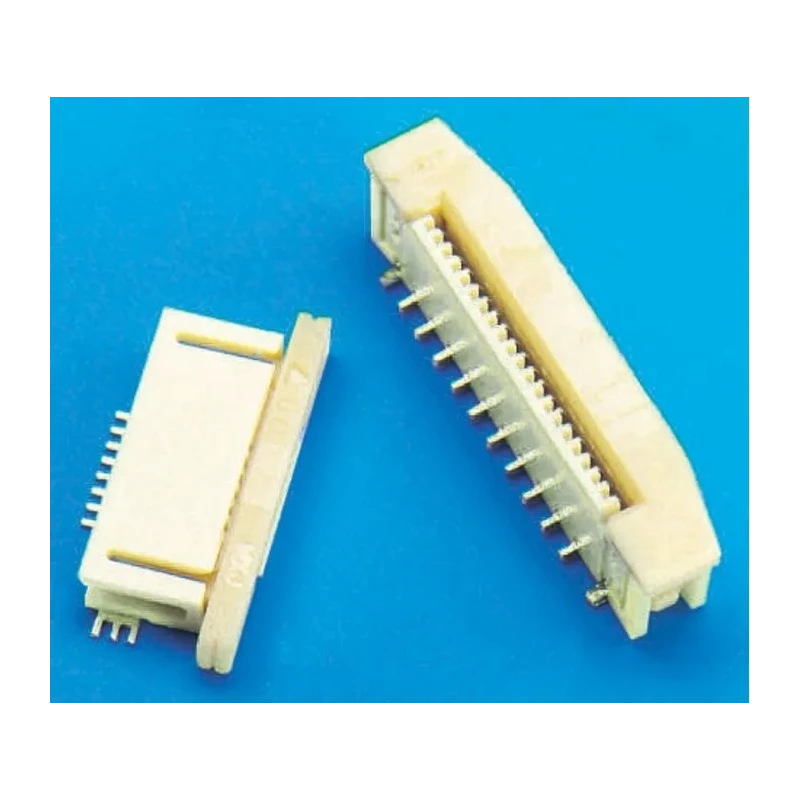

Molex 1 mm Pitch 18 Way Straight Female FPC Connector, Solder 52559-1853

Molex 52559-1853 is a 1 mm pitch, 18 way straight female FPC connector designed for use in high-density and compact electronic applications. This connector utilizes a Zero Insertion Force (ZIF) slide type actuator mechanism, which significantly reduces wear during connection cycles while ensuring a secure, reliable contact between the FPC cable and the connector terminals.

The connector features a phosphor bronze contact material with gold over nickel plating, providing excellent conductivity and corrosion resistance. Its vertical orientation and surface mount type enable efficient PCB layout, while the nylon housing ensures durability and insulation.

Rated for 500mA current and a maximum voltage of 50V, this connector operates effectively within a temperature range of -20°C to +85°C. The locking mechanism secures the cable and offers strain relief at the solder tail joints, enhancing mechanical robustness during use.

This model, part of Molex's 52559 series, is well-suited for automotive navigation and audio systems, digital cameras, home security devices, tablets, notebooks, patient monitors, GPS units, smartphones, and other mobile devices.

This FPC Connector supports 18 contacts providing reliable electrical connections. It features a Zero Insertion Force (ZIF) slide type actuator for easy insertion and secure connection. Gold over nickel plating ensures low contact resistance and corrosion protection.

Compatible with vertical mounting and designed with nylon housing for durability. Operates safely at up to 50V with a current rating of 500mA. Suitable for demanding temperature ranges from -20°C up to 85°C. Locking mechanism provides secure cable retention and strain relief for PCB solder joints.

Ideal for automotive, consumer electronics, datacom, medical, and mobile device applications.

Molex products are synonymous with quality and reliability in connector technology, making the 52559-1853 an excellent choice for complex wiring harnesses in industrial, commercial, and consumer electronics sectors. Explore further Molex connector solutions at EnvMart for diverse industrial needs.
