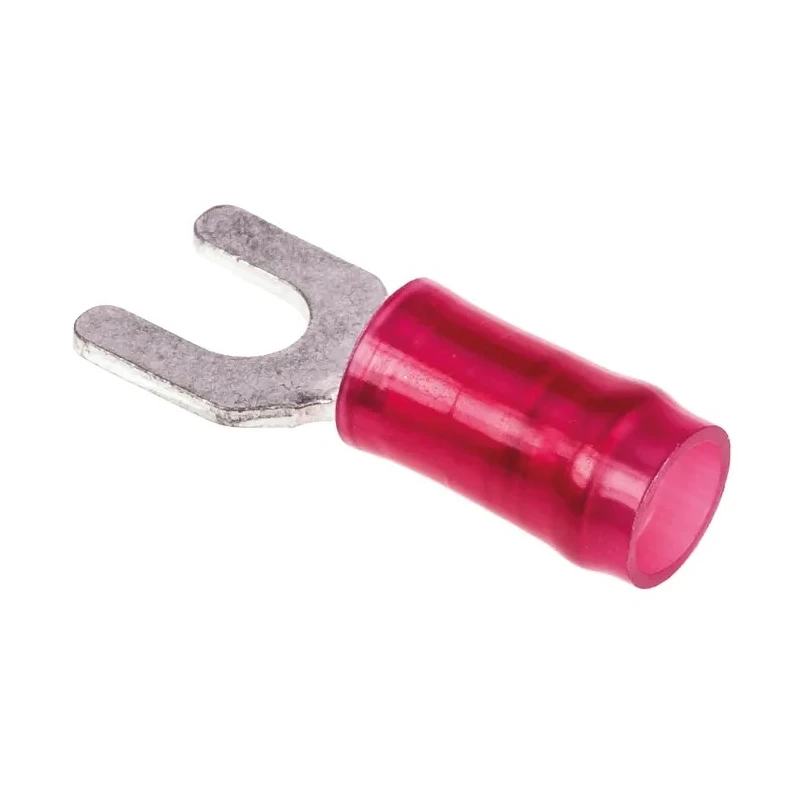

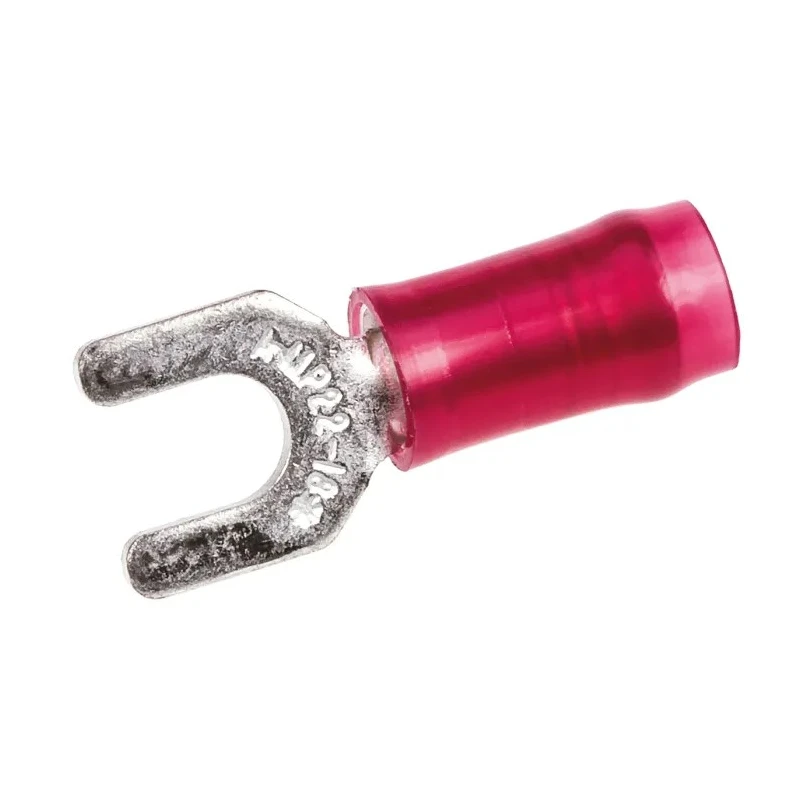

TE Connectivity PIDG Insulated Fork Terminal 22 AWG to 16 AWG M3.5 Stud Size Nylon Red 326861

TE Connectivity 326861 PIDG Insulated Fork Terminal is a high-quality electrical connector designed for wires ranging from 22 AWG to 16 AWG. With an M3.5 stud size, this fork terminal provides dependable and uniform crimps essential in demanding industrial and commercial environments. The nylon insulation sleeve, colour-coded red, offers additional electrical insulation and mechanical protection.

The terminal's construction includes a precision-formed copper body that exhibits excellent conductivity and durability. A copper sleeve surrounds the barrel to enhance insulation support, preventing wire fraying or conductor breakage when bent after crimping. Serrations inside the barrel maximize tensile strength and enhanced electrical contact.

Designed for ease of use, the funnelled wire entry prevents wire strand turn-back, enabling high-speed assembly line efficiency. These fork terminals meet stringent standards, including MIL-T-7928 Type II Classes 1 and 2, making them suitable for instrumentation, lighting, power supplies, motor connections, aerospace systems, and automotive applications.

Key features include copper material with tin plating for corrosion resistance, 0.79 mm thickness, and an overall length of 19.13 mm with a width of 7.54 mm. The M3.5 stud size facilitates secure and stable mounting.

This product is manufactured in the United States and ensures compliance with demanding industry requirements. The red nylon insulation aids in quick identification and proper tooling during assembly.

Constructed with a high conductivity copper body for efficient electrical performance. Features a copper sleeve for enhanced wire insulation support after crimping. Serrated wire barrel provides maximum contact and tensile strength.

Colour-coded nylon insulation aids quick wire size identification. Funnelled wire entry design allows fast and reliable wire insertion. Compliance with MIL-T-7928, Type II, Class 1 and 2 standards for critical applications.

Ideal for industrial, automotive, aerospace, and control panel wiring applications. Overall length of 19.13 mm and width of 7.54 mm ensure compatibility with diverse installations. Contact material is copper with tin plating to prevent corrosion.

Product originates from the United States, ensuring high manufacturing quality. Explore our catalog for additional TE Connectivity PIDG insulated terminals and enhance your electrical component assembly workflow efficiently.
