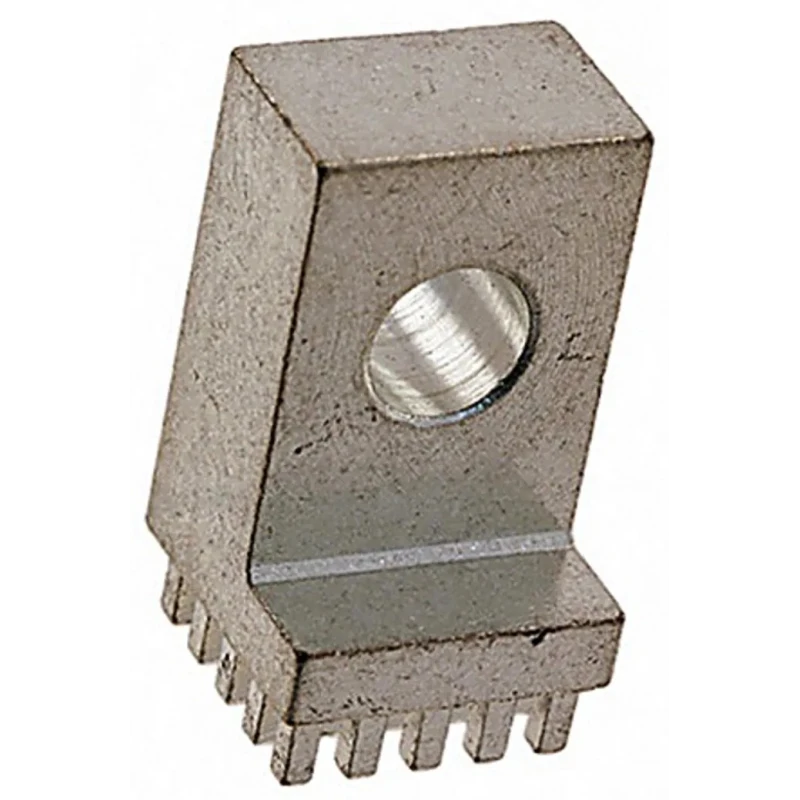

Wurth Elektronik Brass Screw Terminal Right Angle 250A REDCUBE Series 7461068
Specifications
| Country of Origin | China |
|---|---|
| Screw Size | M8 |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Body Material | Brass |
| Current | 250A |
| Model | 7461068 |
| Series | REDCUBE |
| Number of Legs | 25 |
| Number of Rows | 5 |
| Pitch | 2.54mm |
| Body Plating | Tin |
Key Features
- Designed for transferring high electrical currents up to 250A onto a PCB.
- Right angle full plain pin plate for versatile PCB integration.
- Press-fit mounting technology ensures reliable, gas-tight electrical connections.
- Constructed from brass body with tin plating for superior conductivity and durability.
- Includes twenty-five legs, five rows, and an M8 screw for robust fitment.
- Rugged build offers resistance to vibration and shock, ideal for demanding environments.
- 2.54mm pitch ensures compatibility with a wide range of PCB designs.
- Applicable across wind, solar, medical, industrial, agricultural, and automotive industries.
Product Description
The Wurth Elektronik 7461068 Brass Screw Terminal is an advanced right-angle REDCUBE power element engineered for reliable high-current transfer to printed circuit boards (PCBs). With a nominal current rating of 250A, this terminal is designed for demanding industrial, renewable energy, and electronics applications requiring robust and secure connections.
The terminal features a full plain pin plate mounted at a right angle, allowing efficient integration into PCB layouts. It utilizes a press-fit mounting mechanism that creates a gas-tight, environmentally stable electrical connection, delivering greater retention force and vibration resistance than solder or conventional screw joints. This technology facilitates fast and secure installation while minimizing thermal stress on the PCB.
Manufactured from quality brass with durable tin plating, the terminal ensures excellent electrical conductivity and corrosion resistance. The product includes twenty-five legs arranged in five rows, with a standard pitch of 2.54mm and an M8 screw size for secure fastening and efficient current transfer. The snap-in design enables quick assembly during production cycles.
Wurth Elektronik REDCUBE series terminals are suitable for high-power applications across multiple industries, including wind and solar power, medical equipment, industrial controls, agricultural machinery, and automotive electronics. Supported use cases include power supplies, converters, battery emergency backup systems, and DC to AC converters.
In addition to its robust construction, the right-angle configuration facilitates versatile PCB integration, allowing engineers to optimize layouts for space and performance. The terminal’s press-fit design negates the need for soldering, thus reducing potential for thermal damage during assembly. Resistance to mechanical shock and vibration makes the device ideal for environments with heavy-duty operational requirements.
Whether applied in energy, manufacturing, or transportation systems, the Wurth Elektronik 7461068 provides a dependable, cost-effective solution for high-power connections and long-term reliability.
High current transfer up to 250A. Press-fit gas-tight mounting technology. Right angle full plain pin plate for PCB integration. Brass body with tin plating for durability and conductivity. Rugged shock and vibration resistance.
2.54mm pitch, 25 legs, 5 rows, snap-in design, M8 screw. Broad application: industrial, energy, medical, automotive, agricultural. Eliminates soldering, streamlines PCB assembly. Explore more premium PCB screw terminals and REDCUBE power connectors from Wurth Elektronik in the Wire Terminals & Splices category on EnvMart.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 250A, making it suitable for high-power applications.
The terminal features a right-angle orientation for its full plain pin plate, allowing efficient PCB integration.
It utilizes an M8 screw size for secure fastening and efficient current transfer.
This unit includes twenty-five legs arranged in five rows, facilitating robust connections.
The pitch of this terminal is 2.54mm, ensuring compatibility with a wide range of PCB designs.
It is constructed from brass with a tin plating, providing excellent electrical conductivity and corrosion resistance.
This model employs a press-fit mounting technology that ensures a gas-tight electrical connection.
The press-fit design eliminates the need for soldering, reducing potential thermal damage during assembly and enhancing connection reliability.
The terminal is manufactured in China.
This model belongs to the REDCUBE series, which is known for its high-current transfer capabilities.
