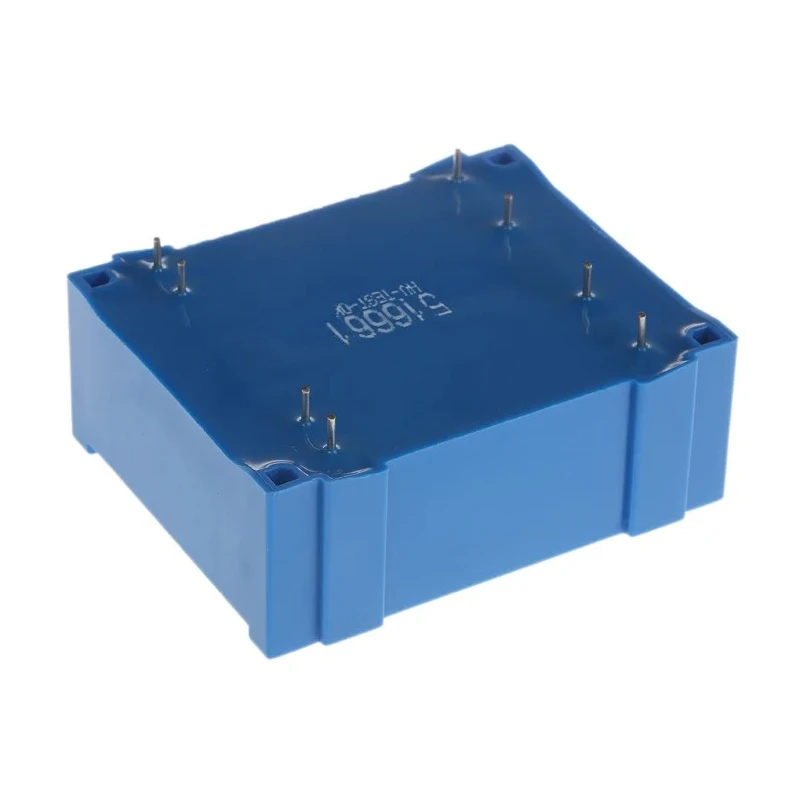

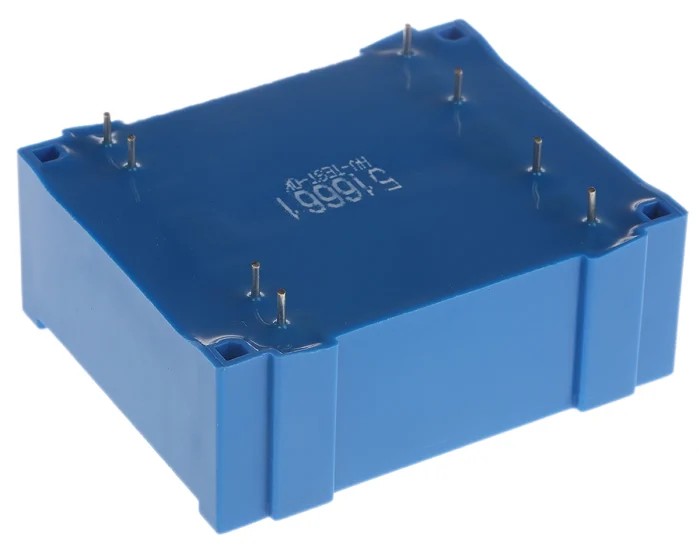

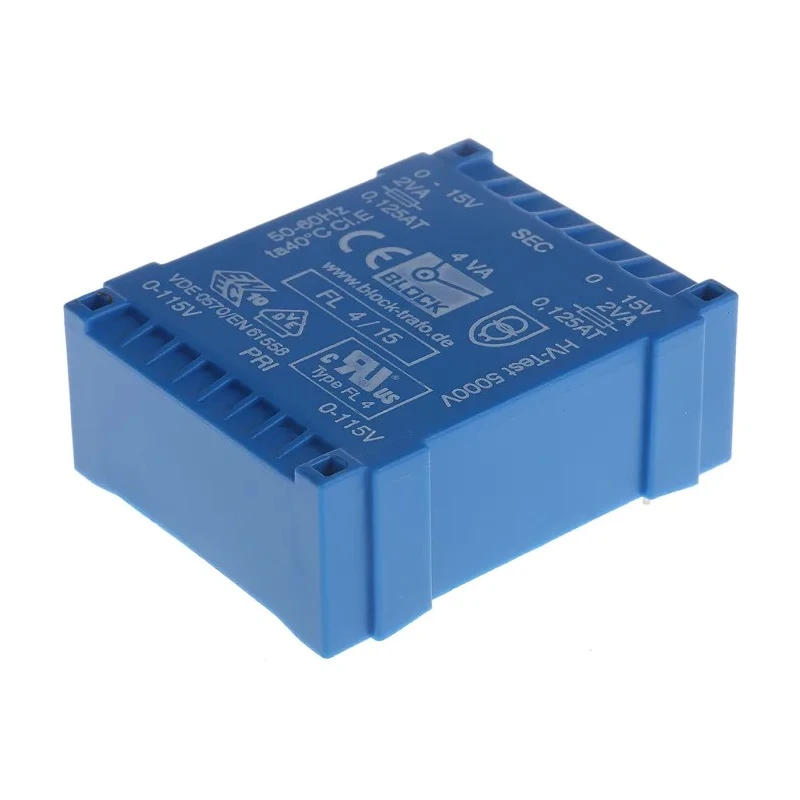

Block PCB Transformer Dual Secondary 15 V AC 2 Output Pin Mount, 115/230 V AC, 4 VA Power FL 4/15

Block FL 4/15 PCB Transformer is a dual secondary, 15 V AC output transformer designed for mounting on printed circuit boards. It operates on a primary voltage of 115 or 230 V AC with a frequency range from 50 Hz to 60 Hz, delivering a power rating of 4 VA suitable for various electronic applications that require reliable low power isolation and voltage transformation.

The transformer features a compact, low profile design with pin mounting for secure PCB installation and easy integration into electronic assemblies. It is vacuum epoxy resin moulded to a UL94-V0 flame retardant standard, enhancing safety and durability. The bobbins are constructed from double section glass fibre reinforced polyamide, providing mechanical stability and insulation.

This model complies with stringent international standards including DIN EN 61558-2-6, IEC 61558-2-1, ENEC 10 (VDE), and others, ensuring high safety, quality, and performance benchmarks. Its isolation voltage rating of 5000 V safeguards against electrical hazards, and the maximum operating temperature rating of 40°C supports stable operation in typical industrial and commercial environments.

The dual secondary windings allow for flexible connection options, either series or parallel, to meet various output voltage requirements. Low inter-winding capacitance and low radiated noise contribute to superior electrical performance.

Physical dimensions are 53 mm in length, 19.6 mm in width, and 44 mm in depth with an approximate gross weight of 980 g, making it suitable for space-constrained PCB layouts. Additional fixing holes provide secure board mounting capabilities.

Ideal for use in industrial, electronic manufacturing, laboratory equipment, power supply circuits, and commercial electrical assemblies, this Block FL 4/15 transformer combines safety, international approvals, and functional versatility.

Explore a wide range of PCB Transformers and related electronic components at EnvMart for your project needs. Operates on primary voltage of 115 or 230 V AC with 50 to 60 Hz frequency. Compact low profile design with pin mounting type for secure PCB installation.

Power rating of 4 VA suitable for low power applications. Constructed with vacuum epoxy resin moulding achieving UL94-V0 flame retardant rating. Complies with multiple international standards including DIN EN 61558-2-6 and IEC 61558-2-1.

Maximum operating temperature up to 40°C ensuring reliable performance. Isolation voltage rated to 5000 V for electrical safety. Dual secondary winding allows series or parallel connection on output side. Weight of approximately 980 g with dimensions 53 mm length, 19.6 mm width, and 44 mm depth.
