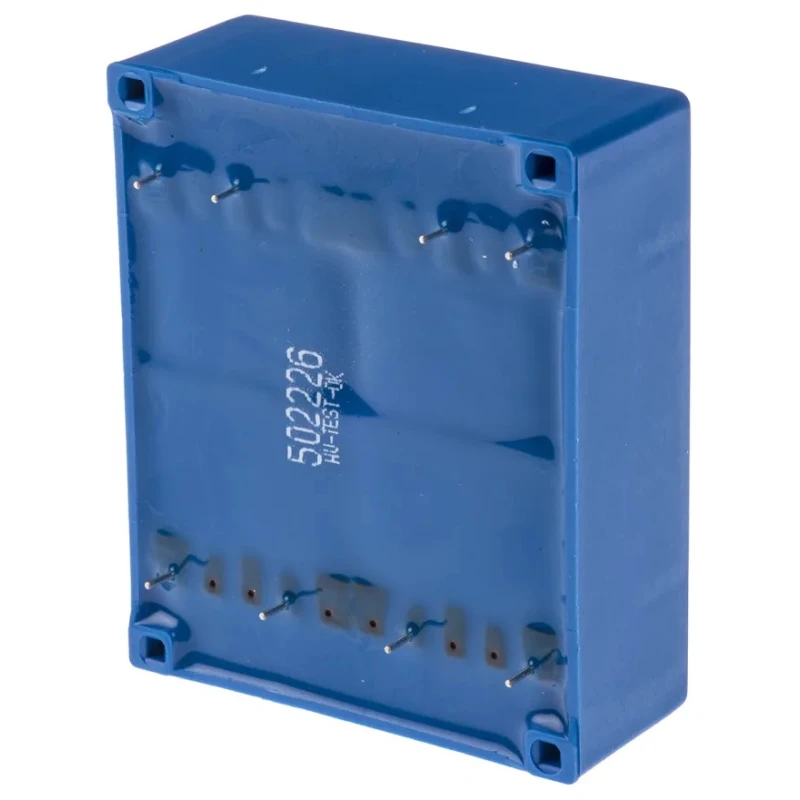

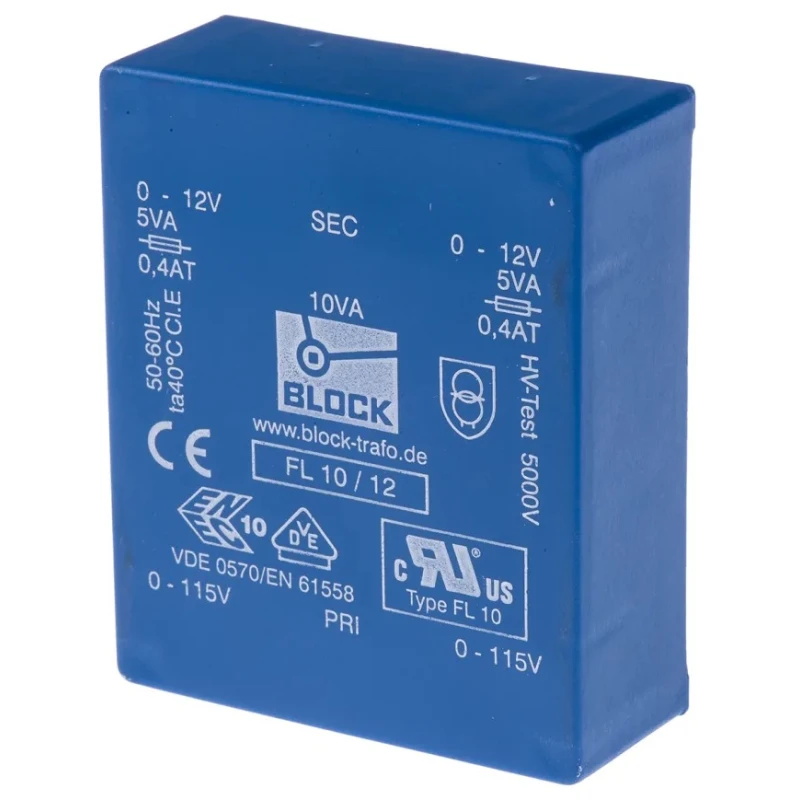

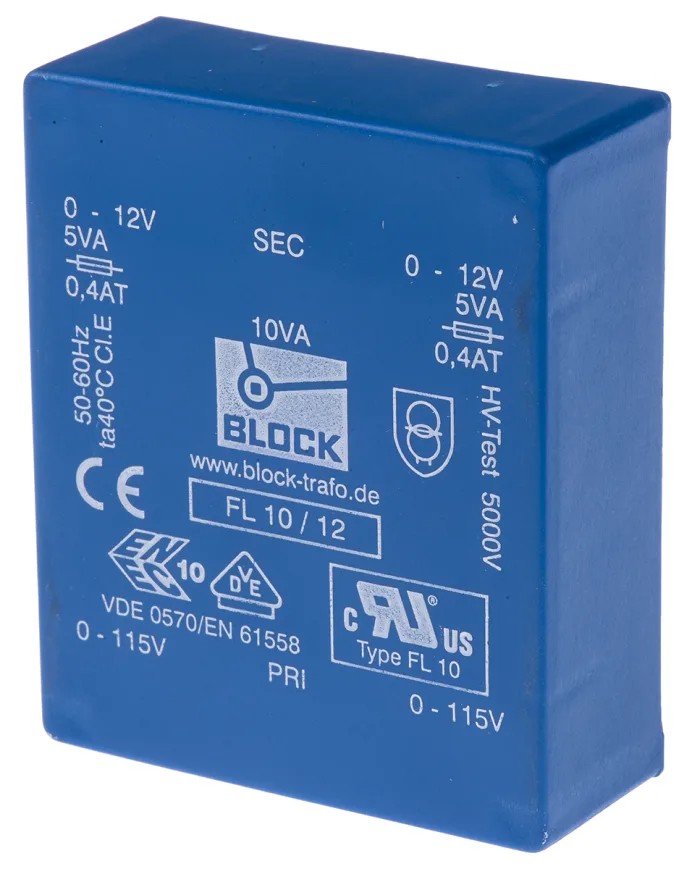

Block 12 V ac 2 Output Pin PCB Transformer, ENEC 10 (VDE), VDE 0570 Teil 2-6, UL 94 V-0, DIN EN 61558-2-1, VDE 0570 FL 10/12

Block FL 10/12 12 V ac 2 Output Pin PCB Transformer provides a robust and compact power solution for electronic circuit boards requiring dual 12 V ac outputs. It features dual secondary windings that deliver two independent 12 V ac outputs, making it ideal for applications demanding separate power feeds.

Operating across primary voltages of 115 V ac or 230 V ac at frequencies between 50 and 60 Hz, this transformer is designed for versatile power supply integration. Its low-profile design, measuring 68mm in length, 22.8mm in width, and 57mm in depth, allows for space-efficient placement on PCB assemblies.

The transformer is encapsulated with vacuum epoxy resin complying with UL 94 V-0 flame retardance standards, ensuring high electrical insulation and safety. It boasts an isolation voltage of 5000V which protects sensitive electronics by preventing electrical interference and ensuring user safety.

Built to meet rigorous international standards such as ENEC 10 (VDE), VDE 0570 Teil 2-6, DIN EN 61558-2-1, and IEC 61558 series, this product assures reliability and compliance in industrial, laboratory, and commercial electronic systems.

With a gross weight of 980 grams and pin mounting style with extra fixing holes, it ensures secure and stable installation on printed circuit boards. The maximum operating temperature is rated at 40°C, enabling it to perform well under moderate thermal conditions.

This transformer is widely applicable for use in industrial electronics, power supplies, HVAC control systems, manufacturing equipment, and instrumentation. Its compact and rugged construction suits professional engineering needs requiring dependable 12 V ac outputs in a compact form factor.

Operates at primary voltages of 115 V ac and 230 V ac, supporting multiple mains inputs. Dual secondary windings provide separate 12 V ac outputs for diverse circuits. Low profile design facilitates compact circuit integration.

Vacuum epoxy resin molded for UL 94 V-0 flame retardant rating. Isolation voltage rating of 5000V ensures secure electrical separation. Complies with ENEC 10 (VDE), VDE 0570 Teil 2-6, DIN EN 61558-2-1 standards and approvals.

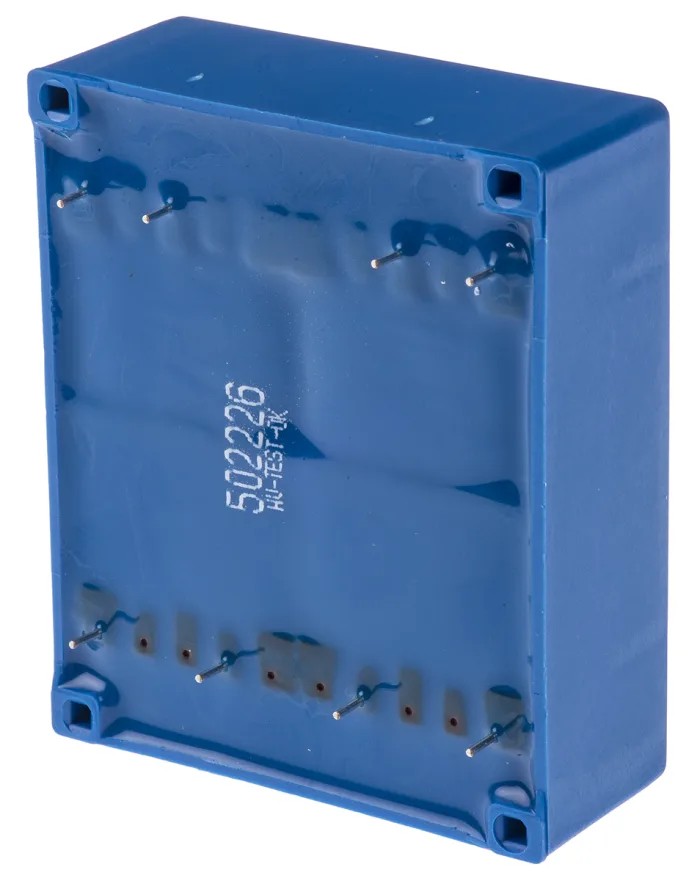

Pin mount type with additional fixing holes for PCBs. Designed for operation up to 40°C operating temperature. Weight of approximately 980 grams for handling and installation. Manufactured in Germany with proven quality standards.
