Cynergy3 RSF50 Series Vertical Viton Float Switch with 1 m PTFE Cable, NO/NC Output, 300 V AC/DC Max RSF57H100GB/RS

Free Delivery in India | Lowest Global Shipping Charges

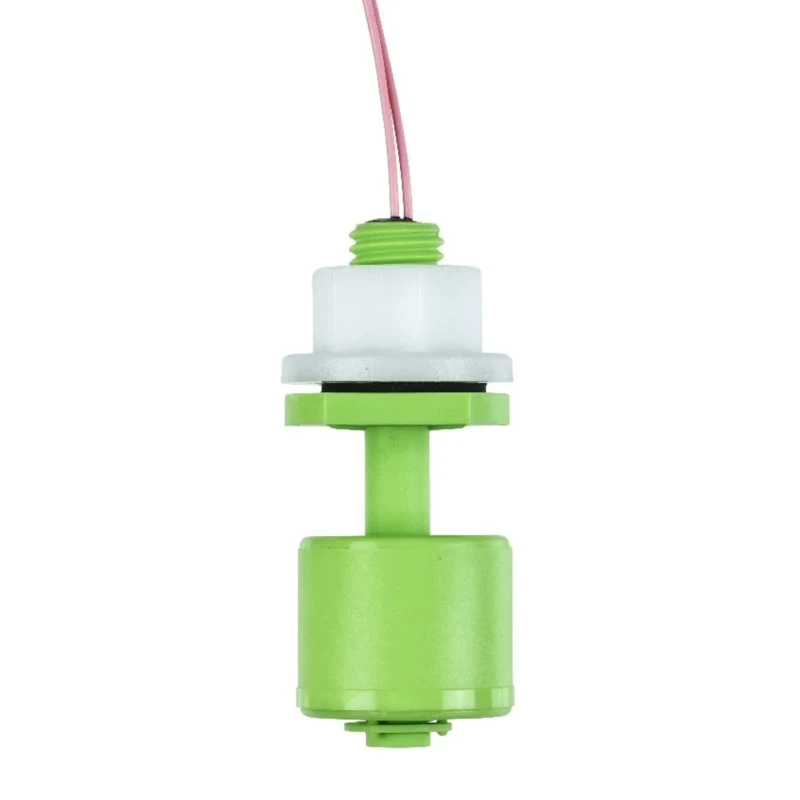

Cynergy3 RSF50 Series Vertical Viton Float Switch with 1 m PTFE Cable, NO/NC Output, 300 V AC/DC Max RSF57H100GB/RS

Name: Cynergy3 RSF50 Series Vertical Viton Float Switch with 1 m PTFE Cable, NO/NC Output, 300 V AC/DC Max RSF57H100GB/RS
Brand: Cynergy3
SKU: 141916
Price: 36.09 USD
Availability: InStock



Category Float Switch Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Model	RSF57H100GB/RS
Cable Length	1m
Mount Type	Vertical
Housing Material	Polyvinyl Fluoride
Series	RSF50
Maximum Operating Temperature	105°C
Switch output	NO/NC
Minimum Operating Temperature	-10°C
Maximum Current	1A
Maximum dc Voltage	300V dc
Standards/Approvals	UL
Maximum AC Voltage	300V ac
Gasket Material	Viton

Key Features

The Viton gasket provides a secure seal to prevent leaks.
The switch output can be toggled between normally open (NO) and normally closed (NC) by inverting the float.
The housing is made of durable polyvinyl fluoride resistant to wear and chemicals.
The 1 m cable features a PTFE sheath for enhanced chemical and heat resistance.
Designed for a maximum current of 1 amp, ensuring energy-efficient operation.
The mounting thread size is M12 for straightforward installation.
Suitable for operating temperatures from -10°C to 105°C to meet demanding applications.
Certified to UL standards but not suitable for hazardous area certification.

Product Description

Cynergy3 RSF57H100GB/RS Vertical Viton Float Switch offers reliable and durable liquid level monitoring for industrial and commercial applications. Designed with a vertical mount and fitted with a 1 meter PTFE insulated cable, this float switch supports both normally open (NO) and normally closed (NC) circuit configurations by inverting the float. The housing is constructed from robust polyvinyl fluoride (PVDF), providing excellent chemical and wear resistance suitable for heavy-duty industrial environments.

The Viton gasket ensures a tight seal preventing leakages, enhancing operational safety and longevity. It is ideal for use in tanks lacking side access as it can be mounted either at the top or bottom. Operating within a temperature range from -10°C to 105°C, this float switch performs well in harsh conditions. The device supports a maximum voltage of 300 V for both AC and DC types and a maximum current of 1 A, making it a low power and energy-efficient choice.

This switch features an M12-sized mounting thread simplifying assembly and integration into existing systems. UL certification assures compliance with safety standards, although it is not certified for hazardous area environments. Cynergy3 float switches like this model are widely used in vending machines, chemical dosing systems, water treatment, and other industrial automation applications.

The Viton gasket provides a secure seal to prevent leaks. The switch output can be set as NO or NC by removing and inverting the float. The housing material is polyvinyl fluoride for excellent chemical resistance. 1 m PTFE cable sheath offers resistance to heat and chemical wear.

M12 mounting thread for convenient installation. Supports a maximum voltage of 300 V (AC/DC) and a maximum current of 1 A. Suitable for operating temperatures ranging from -10°C to 105°C. UL certified for safety compliance but no hazardous area certification.

This vertical float switch from Cynergy3 is essential for accurate liquid level detection in industries such as chemical processing, HVAC, and water treatment. For more products in the Float Switch category, explore EnvMart's diverse selection of precise and reliable sensors tailored to industrial automation needs.
