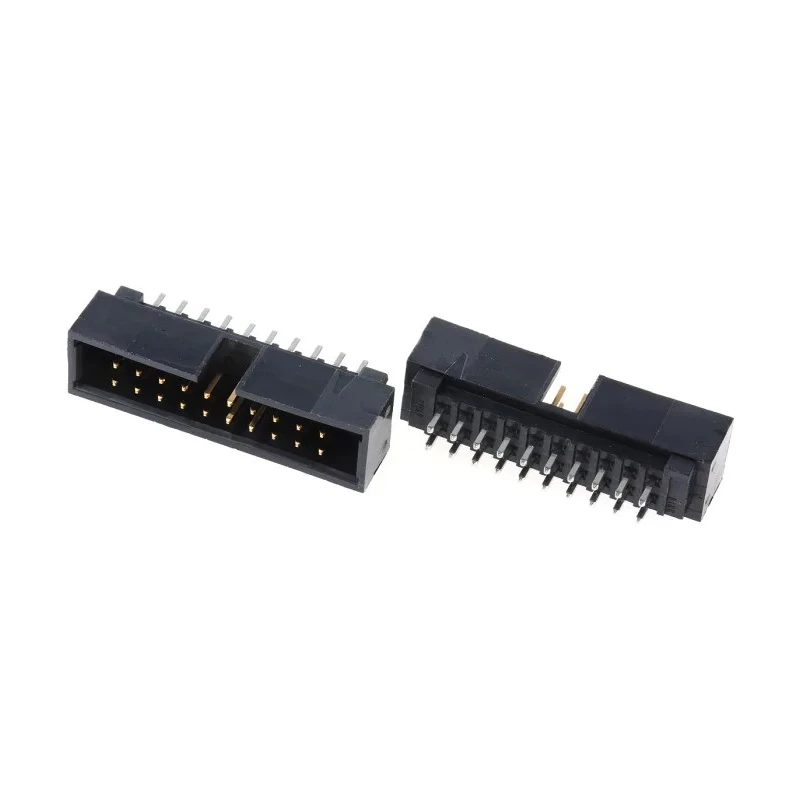

Molex C-Grid Series Straight Through Hole PCB Header, 20 Contacts, 2 Row, 2.54 mm Pitch, Shrouded 70246-2001

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid Series Straight Through Hole PCB Header, 20 Contacts, 2 Row, 2.54 mm Pitch, Shrouded 70246-2001

Name: Molex C-Grid Series Straight Through Hole PCB Header, 20 Contacts, 2 Row, 2.54 mm Pitch, Shrouded 70246-2001
Brand: Molex
SKU: 206395
Price: 3.76 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	2.5A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	C-Grid
Termination Type	Solder
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.43mm
Mating Pin Length	2.54mm

Key Features

The housing material is durable Polybutylene Terephthalate ensuring robust performance.
Contacts are made of phosphor bronze with gold plating for excellent conductivity and corrosion resistance.
Designed for through-hole mounting with a shrouded connector system for enhanced safety and reliability.
Rated for a current of 2.5 A and a voltage of 250 V, suitable for various electronic applications.
Operating temperature range from -55°C to 120°C supports demanding environments.
Termination type is solder with male contact gender for secure connections.
Tail pin length is 3.43 mm and mating pin length is 2.54 mm for precise fitment.
Vertical dual in-line (DIL) style header compatible with 70058 Series terminals.

Product Description

Molex 70246-2001 C-Grid Series Straight Through Hole PCB Header provides a reliable and efficient solution for wire-to-board connectivity in electronic devices. This component features 20 gold-plated phosphor bronze contacts arranged in 2 rows with a 2.54 mm pitch, ensuring excellent electrical performance and durability.

The housing is made from high-quality Polybutylene Terephthalate (PBT), which offers good mechanical strength and thermal resistance, operating effectively between -55°C and 120°C. The header's shrouded design enhances connector safety by preventing accidental contact and improves connection stability.

This PCB header is designed for through-hole mounting, making it suitable for standard PCB assembly processes. The solder termination and male contact gender ensure secure and reliable mating with compatible connectors.

Rated for 2.5 A current and 250 V voltage, it is ideal for a broad range of industrial, commercial, and consumer electronics applications requiring stable and durable interconnect solutions.

The 3.43 mm tail pin length and 2.54 mm mating pin length allow for precise assembly and excellent mechanical engagement. It mates with the 70058 Series terminals, making it versatile in connector system configurations.

Housing material Polybutylene Terephthalate offers robustness in demanding environments. Gold plating on contacts ensures corrosion resistance and superior conductivity. Shrouded, straight orientation increases protection and efficient stacking.

Through-hole mount type for reliable and strong PCB connection. Wide operating temperature suitable for industrial electronic applications. Compatible with standard terminal series for flexible system design. High-quality materials improve longevity and electrical reliability.

Supports 2.5 A current capacity and 250 V voltage rating.

This Molex PCB header is suitable for use in industrial, manufacturing, HVAC, electronic assembly, and other precision connector applications. Explore more PCB Headers and components on EnvMart.
