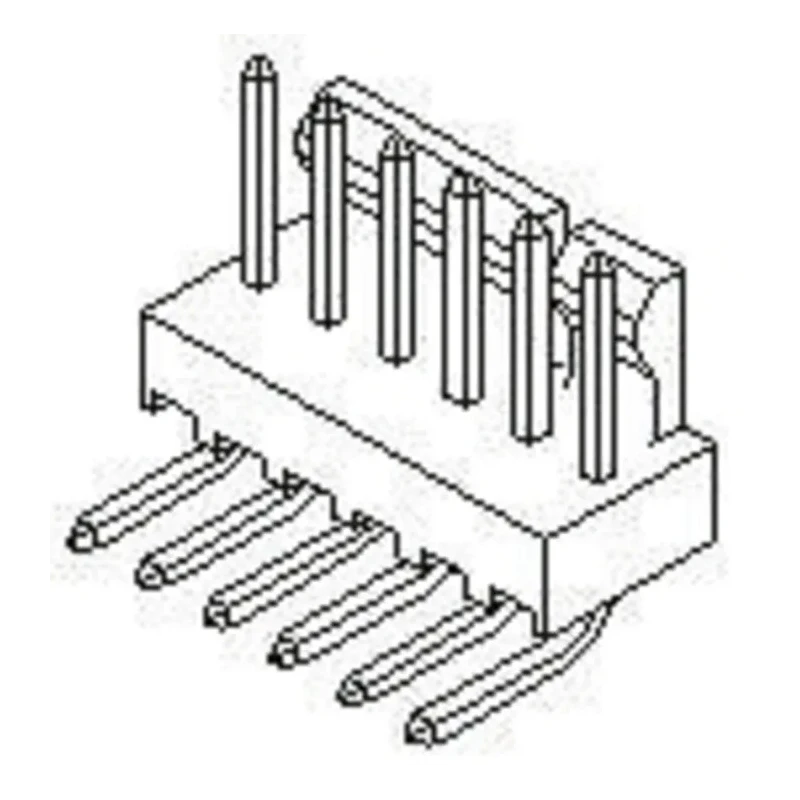

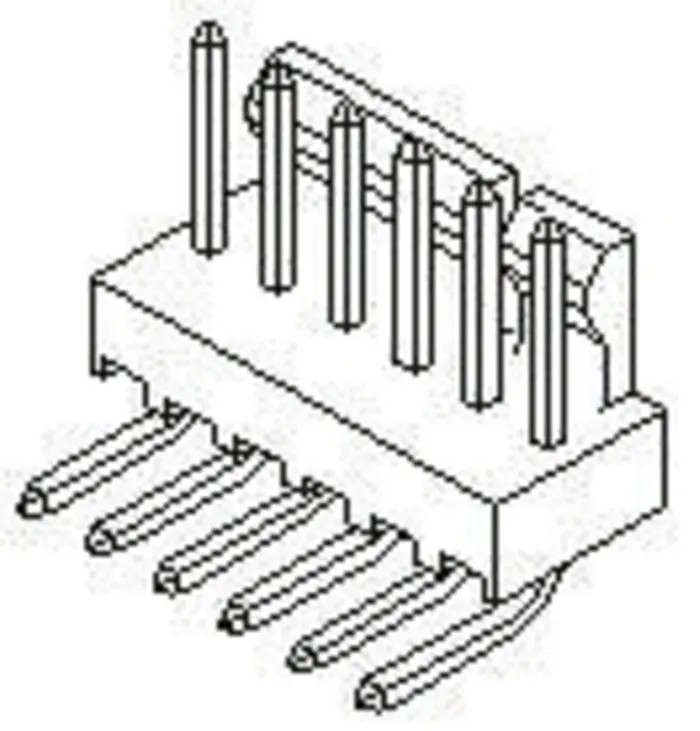

Molex KK 254 Series Right Angle Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-12-4062

Free Delivery in India | Lowest Global Shipping Charges

Molex KK 254 Series Right Angle Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-12-4062

Name: Molex KK 254 Series Right Angle Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-12-4062
Brand: Molex
SKU: 206357
Price: 1.86 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Mexico
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	4A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	KK 254
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	3.8mm
Mating Pin Length	2.54mm

Key Features

Designed for wire-to-board connection in electronic assemblies.
Features right angle orientation with a single row of contacts.
Constructed with nylon housing material for durability.
Contacts made from brass and plated with gold for reliable conductivity.
Suitable for operating voltage up to 250V and current rating of 4A.
Tail pin length of 3.8 mm supports solder termination.
Unshrouded design for easy access and insertion.
Temperature range from -40°C to 105°C for varied environments.

Product Description

Molex 22-12-4062 KK 254 Series Right Angle Through Hole Pin Header is a precision electronic connector designed to facilitate wire-to-board connections. This component features 6 male contacts arranged in a single right angle row with a 2.54 mm pitch, making it ideal for compact PCB layouts and reliable mating with compatible housings.

The header's housing is made from durable nylon (UL 94V-0), providing stability and electrical insulation. Contacts are crafted from brass and plated with gold to ensure superior conductivity and corrosion resistance, essential for sustained performance in industrial and electronic equipment.

Rated for a maximum current of 4A and voltage up to 250V, this connector supports a wide range of applications in electronics manufacturing, including automation, instrumentation, and consumer electronics. It operates reliably within a temperature range from -40°C to 105°C, suitable for both harsh and controlled environments.

The through-hole mounting design ensures secure attachment to printed circuit boards, enhancing mechanical durability. The tail pin length of 3.8 mm enables effective soldering, ensuring strong electrical and mechanical connections. The unshrouded pin configuration allows for easy insertion and maintenance.

This Molex KK 254 Series header is widely used in industrial, laboratory, HVAC, manufacturing, and commercial electronics, where secure, efficient PCB interconnections are critical. It mates specifically with Molex 2695 Series housings, offering compatibility and stacking capability for scalable designs.

Designed for wire-to-board connection in electronic assemblies. Right angle orientation with a single row of 6 male contacts. Nylon housing material for durability and insulation. Brass contacts with gold plating for excellent conductivity.

Supports 4A current and 250V voltage rating. Operating temperature range from -40°C to 105°C. Through-hole mount type with solder termination. Unshrouded design facilitates easy access to contacts. Explore our full range of PCB Headers and connectors at EnvMart to find compatible components that meet your technical and industrial requirements.
