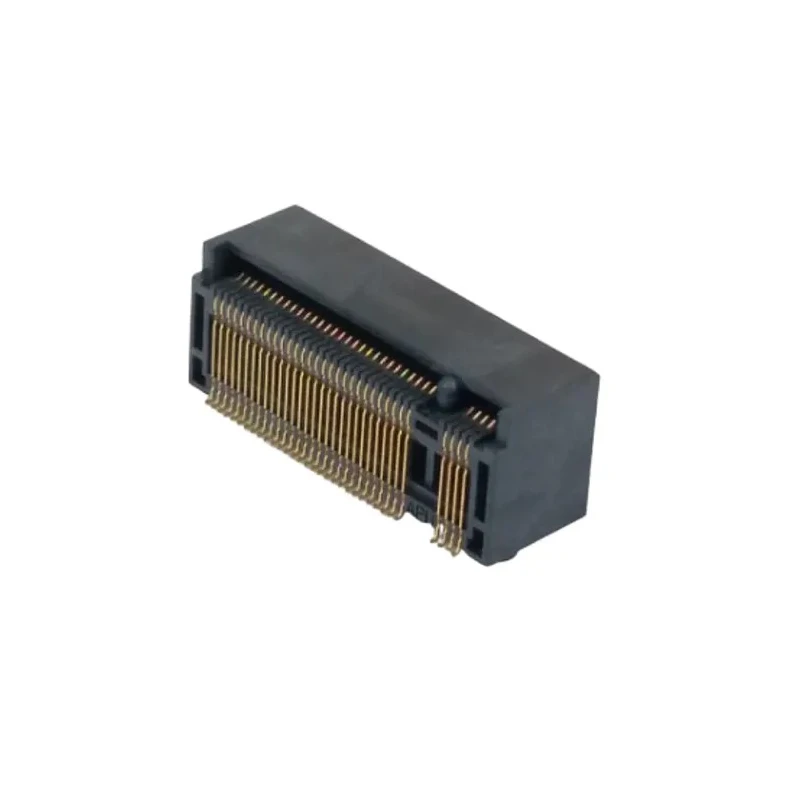

Amphenol Communications Solutions M.2 Gen 5 Series Right Angle Edge Connector Female, Board Mount, 67 Contacts MDT420M01501
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 750mA |
| Model | MDT420M01501 |
| Mount Type | Board |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | M.2 Gen 5 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 0.5mm |
| Standards/Approvals | RoHS, UL |
| Contact Plating | Gold |
| Number of Contacts | 67 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
Key Features
- Designed for board mounting with a right angle orientation.
- Features 67 gold-plated contacts for reliable connectivity.
- Operates at voltages up to 500V and current of 750mA.
- Suitable for PCIe card type modules with M.2 Gen 5 series compliance.
- Constructed with copper alloy contacts and thermoplastic housing for durability.
- Operates within temperature range of -40°C to 80°C.
- Supports higher data rates with compact board space usage.
- Compliance with RoHS and UL standards ensures quality and safety.
Product Description
Amphenol Communications Solutions MDT420M01501 is a high-performance M.2 Gen 5 Series Right Angle Edge Connector designed for female connector board applications. It features 67 gold-plated contacts on a 0.5 mm pitch, suitable for PCIe card type modules. This connector occupies minimal board space, offering more connector height options and supporting higher data transfer rates compared to traditional PCIe Mini Card connectors.
The product is constructed with a copper alloy contact material and a thermoplastic housing, ensuring mechanical stability and long-term durability under industrial operating conditions. It has a right angle orientation enabling flexible board design layouts and is designed for mounting directly on printed circuit boards.
It supports an operating voltage of 500V and a current of 750mA, withstanding temperature extremes from -40°C to 80°C. Compliance with RoHS and UL standards ensures it meets environmental and safety regulations.
This edge connector is ideal for industrial electronic equipment, computing hardware, communication systems, and other applications requiring reliable PCIe M.2 Gen 5 interface connectivity. Its keying mechanism prevents incorrect mating and enhances signal integrity during operation.
Right angle orientation for flexible board layouts. 67 gold-plated contacts on a fine 0.5 mm pitch. Copper alloy contacts with thermoplastic housing for durability. Supports 500V operating voltage and 750mA current. Compliant with PCI-SIG PCIe M.2 specification and RoHS, UL standards.
Operates reliably within a temperature range from -40°C to 80°C. Suitable for single and double-sided PCIe modules. Compact design occupies less board space with multiple height options.
Amphenol connectors are trusted in electronics manufacturing due to their reliability and specification compliance. Explore the full range of Edge Connectors at EnvMart for versatile industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 500V and supports a current of 750mA.
This model features 67 gold-plated contacts.
It operates reliably within a temperature range of -40°C to 80°C.
The contacts are made from copper alloy, and the housing is constructed from thermoplastic.
The contact pitch size is 0.5 mm.
Yes, it complies with RoHS and UL standards, ensuring quality and safety.
It is suitable for PCIe card type modules with M.2 Gen 5 series compliance.
This connector features a right angle orientation, allowing for flexible board design layouts.
The connector has female contacts.
It is ideal for industrial electronic equipment, computing hardware, and communication systems requiring reliable PCIe M.2 Gen 5 connectivity.
The country of origin for this connector is China.
It supports higher data transfer rates and occupies less board space compared to traditional PCIe Mini Card connectors.
