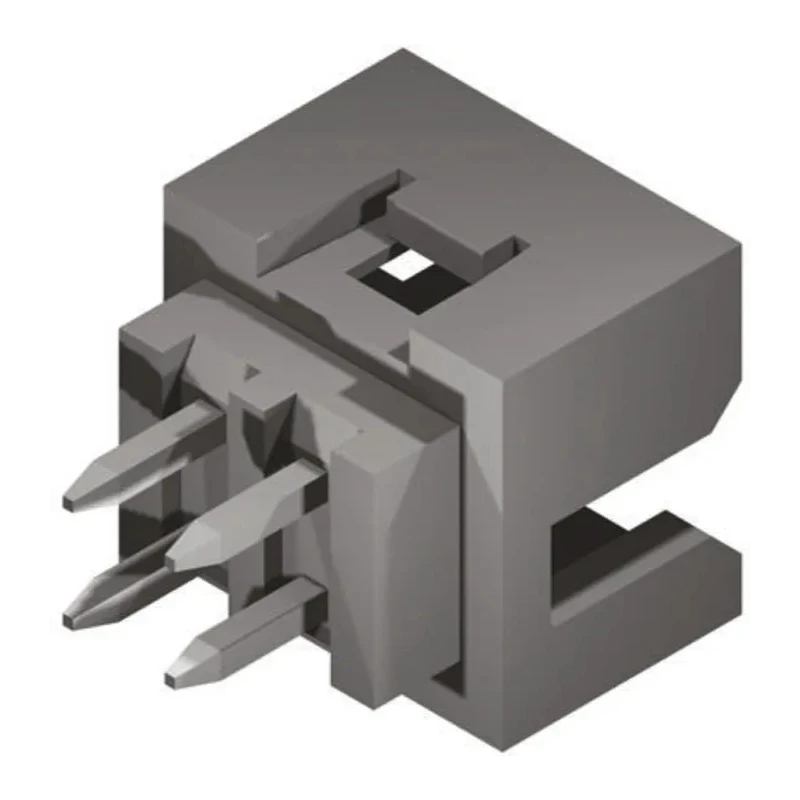

Molex Milli-Grid Series Straight Through Hole PCB Header, 30 Contacts, 2 mm Pitch, 2 Row, Shrouded 87831-3020
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Milli-Grid |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.5mm |
| Mating Pin Length | 3.6mm |
Key Features
- Features high density 2.00 x 2.00 mm grid design for design flexibility.
- Shrouded construction protects contacts from damage.
- Centre polarization slot prevents mismating with mating receptacle.
- Includes centre or side locking windows for secure mating connection.
- Kinked solder tails ensure secure PCB retention during soldering.
- Equipped with PCB locating pegs for automatic insertion process.
- Suitable for wire-to-board connections with through hole mount type.
- Contacts made from phosphor bronze with gold plating for reliable conductivity.
Product Description
Molex 87831-3020 Milli-Grid Series straight through hole PCB header is a 30-contact, 2-row connector with 2 mm pitch designed for high-density wire-to-board applications. The shrouded design protects contacts from damage and enhances durability for industrial-grade electronics.
This PCB header features a centre polarization slot that mates with a corresponding key to prevent improper connections. Centre or side locking windows assist in providing a secure mating connection to the receptacle. The kinked solder tails secure the header firmly to the printed circuit board (PCB), maintaining reliable mechanical and electrical connection.
Constructed with a durable nylon housing and phosphor bronze contacts plated with gold, this header supports current up to 2 amperes and voltage up to 125 volts. It is designed for through hole mounting and is ideal for applications in printers, fax machines, copiers, servers, routers, automotive audio systems, GPS devices, security alarms, set-top boxes, and digital media players.
The product operates reliably within a temperature range of -55°C minimum to 105°C maximum, making it suitable for demanding industrial and commercial environments. PCB locating pegs support automated insertion processes, ensuring precise assembly and production efficiency.
High density 2.00 x 2.00 mm grid design provides compact connection. Shrouded construction enhances contact protection. Centre polarization slot prevents mismating. Locking windows secure mating connections. Kinked solder tails for secure PCB retention.
Durable nylon housing and gold plated phosphor bronze contacts. Rated current of 2A and voltage of 125V. Operating temperature range from -55°C to 105°C. Through hole mount type suitable for wire-to-board applications. Applications include industrial, automotive, and communications equipment.
This Molex Milli-Grid PCB header is a reliable connector solution engineered for high-performance electronic equipment requiring secure and durable board connections. Explore a wide range of PCB Headers and connectors to suit your industrial and commercial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2 amperes and a voltage rating of 125 volts.
It features a 2 mm pitch and has 30 contacts arranged in 2 rows.
The housing is made of nylon, and the contacts are constructed from phosphor bronze with gold plating for conductivity.
This unit is designed for through hole mounting, suitable for wire-to-board applications.
It operates reliably within a temperature range of -55°C to 105°C.
Yes, it includes a centre polarization slot that mates with a corresponding key to prevent improper connections.
This model uses solder termination for secure connections.
The tail pin length is 2.5 mm.
It is suitable for applications in printers, fax machines, copiers, servers, routers, automotive audio systems, GPS devices, security alarms, set-top boxes, and digital media players.
The shrouded construction protects the contacts from damage and enhances durability in industrial-grade electronics.
It features centre or side locking windows to assist in providing a secure mating connection.
The country of origin for this product is India.
