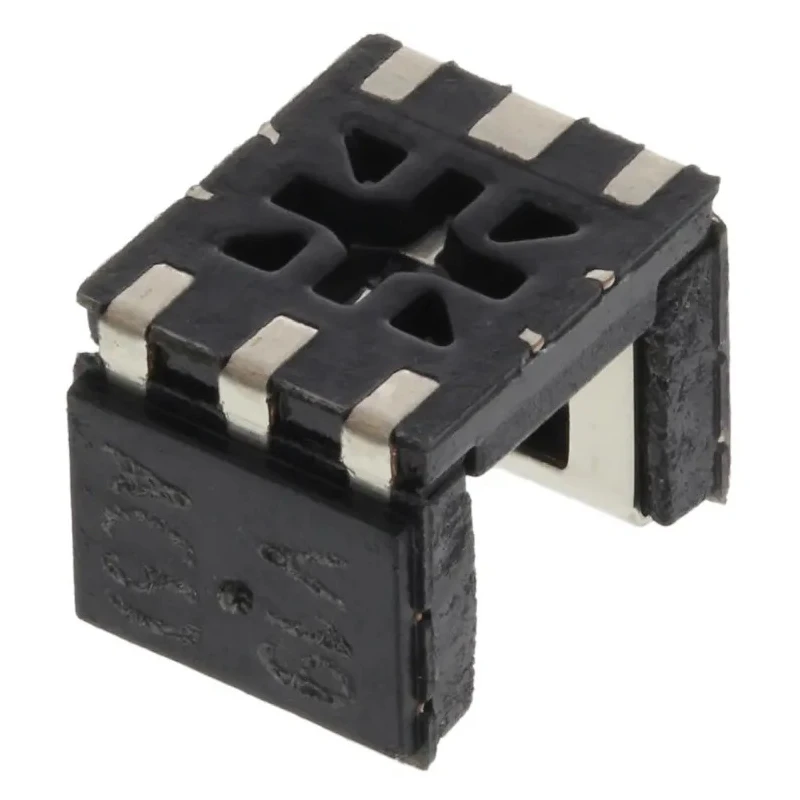

Vishay Surface Slotted Optical Switch Phototransistor Output, Surface Mount 6 Pins, 24.5x6.3x10.8 mm TCPT1300X01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4mm |
| Length | 5.5mm |
| Model | TCPT1300X01 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Surface |
| Detector Type | phototransistor |
| Maximum Operating Temperature | 105°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Slot Width | 3mm |
| Number Of Channels | 2 |
| Output Device | Phototransistor |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Typical Rise Time | 20μs |
| Typical Fall Time | 30μs |
| Automotive Standard | AEC-Q101 |
| Dimensions (L x W x H in mm) | 24.5 x 6.3 x 10.8 |
| Gap (in mm) | 3.1 |
| Emitter wavelength | 950 nm |
Key Features
- Compact surface mount package with 6 pins for easy PCB integration.
- Designed with a 3 mm slot width for object interruption detection.
- Operates within a temperature range of -40°C to 105°C ensuring reliable performance.
- Typical rise time of 20µs and fall time of 30µs enable fast switching response.
- Emitter wavelength at 950 nm suitable for infrared sensing applications.
- Includes RoHS and automotive AEC-Q101 compliance for quality and safety.
- Supplied in tape & reel packaging for efficient manufacturing use.
Product Description
Vishay TCPT1300X01 surface slotted optical switch is a compact, high-performance sensor with phototransistor output designed for precise detection of optical interruptions in industrial, industrial automation, electronics, and optical sensing applications.
Featuring a surface mount package with 6 pins and overall device dimensions of 24.5 x 6.3 x 10.8 mm, it ensures space-saving integration into modern electronic systems. The device has a slot width of 3 mm allowing accurate detection of objects passing through the optical path, useful in counters, encoders, and positioning systems.
The phototransistor output provides reliable electrical signal conversion of detected optical signals with typical rise and fall times of 20µs and 30µs respectively, enabling rapid response to changes.
Operating in a wide temperature range from -40°C to 105°C and conforming to RoHS and automotive AEC-Q101 standards, this optical switch is designed for robustness and long-term stability.
Compact surface mount leaded package with 6 pins simplifies assembly. Phototransistor detector type ensures sensitive optical output. Typical output current IC = 4 mA under test conditions. Emitter wavelength of 950 nm infrared spectrum for effective sensing.
Tape & reel packaging facilitates automated production processes. Applications include optical switching, photo interrupters, counters, and encoders. Compliant with RoHS and automotive AEC-Q101 standards.
This product is widely used in electronics manufacturing, industrial automation, instrumentation, and optical sensor industries. Vishay’s TCPT1300X01 enables accurate and reliable optical detection for various equipment and systems.
Explore more Vishay optical sensors and Slotted Optical Switches on EnvMart to find suitable components for your projects and production lines.
