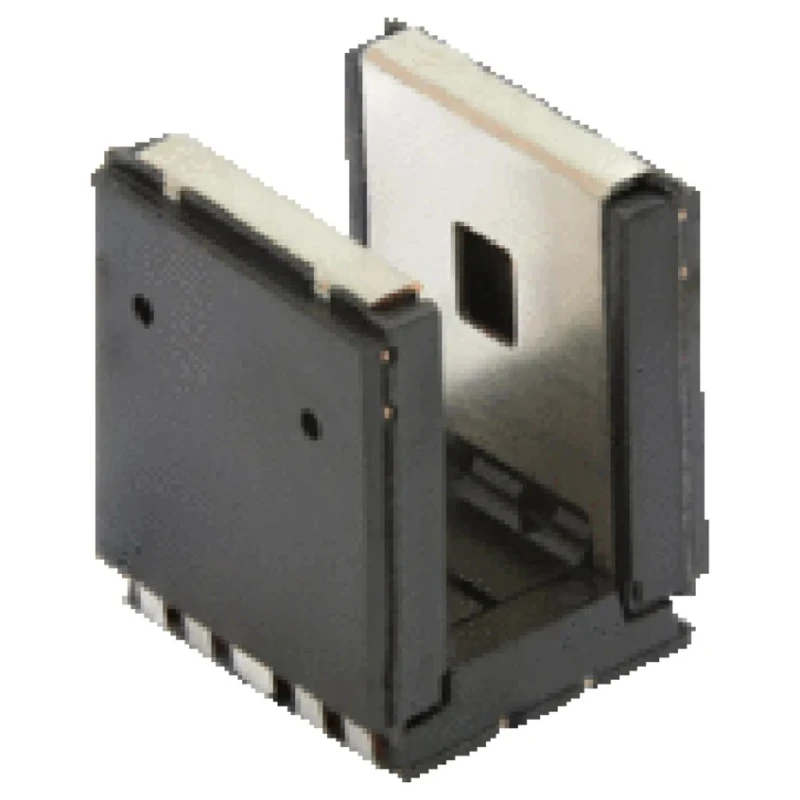

Vishay Surface Slotted Optical Switch with Phototransistor Output TCUT1630X01
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 7.1mm |
| Length | 5.7mm |
| Model | TCUT1630X01 |
| Packaging | Tape & Reel |
| Width | 5.9mm |
| Mount Type | Surface |
| Detector Type | phototransistor |
| Maximum Operating Temperature | 105°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Slot Width | 3mm |
| Number Of Channels | 3 |
| Output Device | Phototransistor |
| Standards/Approvals | RoHS |
| Number of Pins | 10 |
| Typical Rise Time | 9μs |
| Typical Fall Time | 16μs |
| Automotive Standard | AEC-Q101 |
| Dimensions (L x W x H in mm) | 5.5 x 5.85 x 7 |
| Gap (in mm) | 3 |
| Emitter wavelength | 950 nm |
| Moisture sensitivity level (MSL) | 1 |
| Aperture (in mm) | 0.3 |
Key Features
- Includes an infrared emitter and three face-to-face phototransistor detectors in a surface-mount package.
- Tall dome design supports an additional transistor providing room for vertical signal encoding.
- Operates reliably between -40°C to 105°C with a slot width of 3mm.
- Typical rise and fall times are 9μs and 16μs respectively, ensuring quick response.
- Compliance with RoHS standards and Automotive Standard AEC-Q101 enhances suitability for automotive applications.
- Moisture sensitivity level is rated at 1 for soldering reliability.
- Typical emitter wavelength is 950 nm with an output current of 1.3 mA under test.
- Designed for precise position sensing in encoders and motion detection.
Product Description
Vishay TCUT1630X01 Surface Slotted Optical Switch is a compact transmissive sensor integrating an infrared emitter and three phototransistor detectors arranged face-to-face inside a robust surface-mount package. This design includes a tall dome that accommodates an additional transistor and provides mechanical space enabling vertical signal encoding.
The device operates efficiently across a temperature range from -40°C to 105°C, making it suitable for demanding automotive and industrial environments. It offers typical rise and fall times of 9μs and 16μs respectively, supporting rapid switching applications.
With a slot width of 3 mm and an aperture of 0.3 mm, the switch provides accurate detection capabilities. The emitter wavelength is centered at 950 nm, with a typical output current of 1.3 mA under standard test conditions.
Conforming to RoHS compliance and Automotive Standard AEC-Q101 certifies the component's suitability for automotive-grade applications. Additionally, its moisture sensitivity level (MSL) of 1 ensures reliability during lead-free soldering processes.
Typical dimensions are length 5.7 mm, width 5.9 mm, and height 7.1 mm, and the packaging is optimized for Tape & Reel to support surface mount technology assembly. Includes infrared emitter and three phototransistor detectors in surface mount package.
Tall dome design enables vertical signal encoding and mechanical clearance. Wide operating temperature range from -40°C to 105°C suitable for automotive use. Fast switching characteristics with 9μs rise time and 16μs fall time.
Emitter wavelength of 950 nm with typical output current of 1.3 mA. RoHS compliant with Automotive Standard AEC-Q101 certification. Moisture sensitivity level 1 supports lead-free soldering reliability. Compact dimensions and Tape & Reel packaging for SMT processes.
This Slotted Optical Switch is designed for applications involving precise position sensing in encoders, motion, speed, and direction detection, particularly for automotive optical sensors. Its compact and robust construction makes it suitable for various industrial, manufacturing, and automation use cases.
Explore Vishay's range of electronic components and sensors available at EnvMart for quality and reliability in your design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently across a temperature range from -40°C to 105°C, making it suitable for demanding automotive and industrial environments.
The TCUT1630X01 has dimensions of 5.7 mm in length, 5.9 mm in width, and 7.1 mm in height.
The slot width of this model is 3 mm, which allows for accurate detection capabilities.
It uses a phototransistor as the output device, which is integrated into the design for effective signal processing.
The typical rise time is 9 μs and the fall time is 16 μs, supporting rapid switching applications.
Yes, it is RoHS compliant and meets the Automotive Standard AEC-Q101, certifying its suitability for automotive-grade applications.
The typical emitter wavelength is centered at 950 nm, which is suitable for various sensing applications.
This model is packaged in Tape & Reel format, which is optimized for surface mount technology assembly.
The moisture sensitivity level is rated at 1, ensuring reliability during lead-free soldering processes.
This slotted optical switch features three channels for enhanced detection capabilities.
The maximum operating temperature for the TCUT1630X01 is 105°C, allowing it to function in high-temperature environments.
