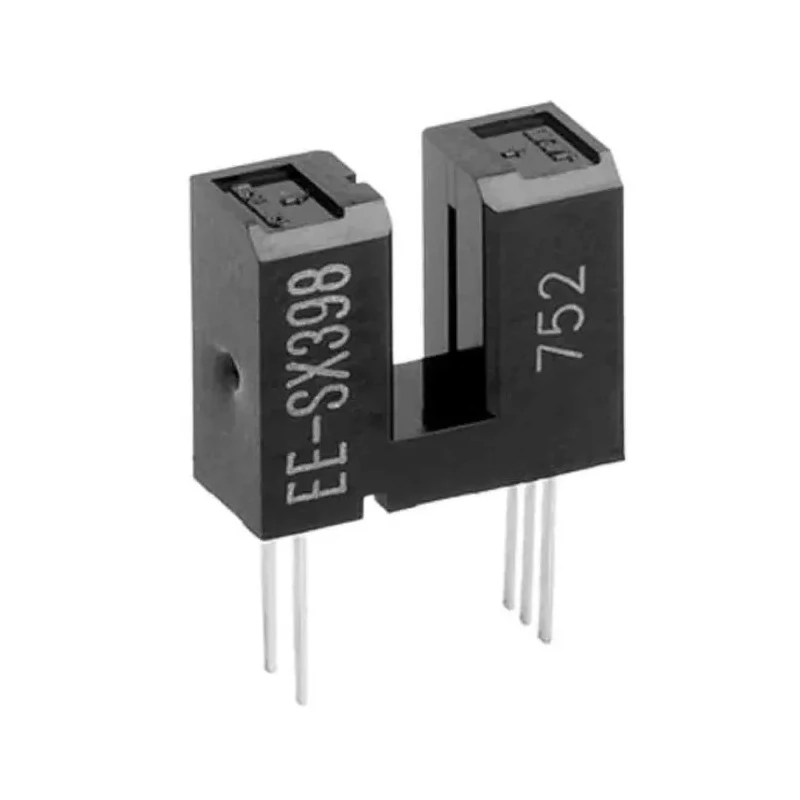

Omron Through Hole Slotted Optical Switch with Photo IC Output EE-SX398

Omron EE-SX398 Through Hole Slotted Optical Switch is a highly compact transmissive photomicrosensor designed with a photo IC output configuration. It incorporates an IC chip that includes a built-in detector element and amplifier to deliver stable and precise sensing performance at a 3 mm distance slot width. The sensor's ultra-compact size, measuring 12.2 mm in length with through hole mounting, makes it suitable for dense PCB layouts.

This Slotted Optical Switch operates effectively within a broad temperature range of -40°C to 75°C, making it adaptable to various industrial environments. It uses a 5-pin pin-type package for secure and straightforward mounting on printed circuit boards. The absence of automotive standard and approvals signifies its specialization for general industrial and commercial applications.

The sensor finds wide applications across multiple industries including office automation where object detection is critical, medical equipment for non-contact sensing, building automation for security and control, amusement machines, and vending machines for reliable presence detection. This model belongs to the EE-SX series, known for robust and precise photo IC output sensors.

Utilizes an integrated detector element and amplifier for high resolution sensing. 3 mm slot width accommodates small object detection with accuracy. Through hole mount type enables easy PCB installation. Supports operation temperature from -40°C to 75°C for durability in industrial conditions.

Compact 12.2 mm sensor length saves PCB space. 5-pin pin package ensures reliable electrical connections. Ideal for applications in office automation, medical instruments, and building automation. Manufactured in Japan assuring quality and performance standards.
