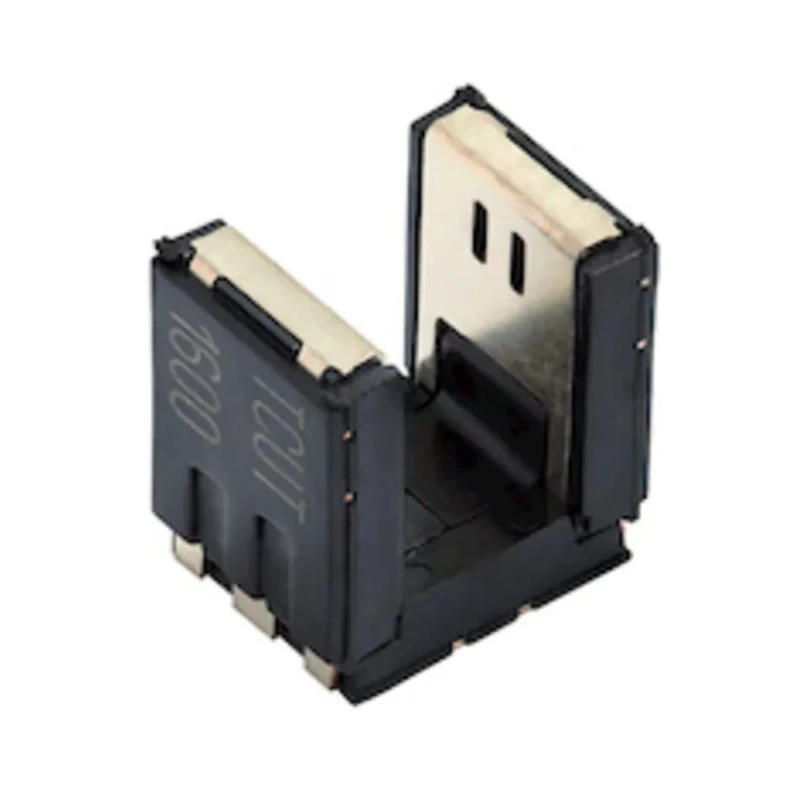

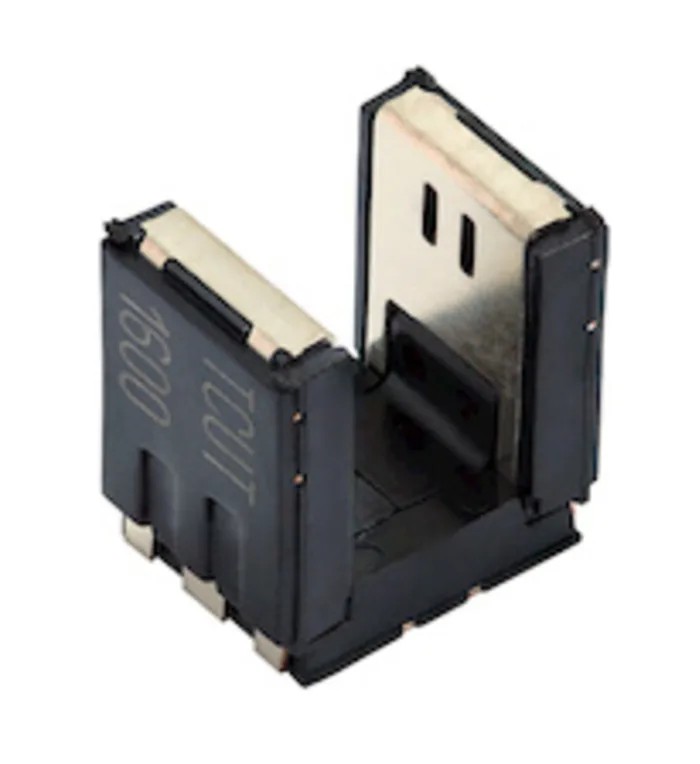

Vishay Surface Slotted Optical Switch Transistor Output AEC-Q101 5.5x4x5.7mm TCUT1600X01

Vishay TCUT1600X01 Surface Slotted Optical Switch is a high-performance compact transmissive sensor designed for robust optical detection applications. It integrates an infrared emitter and two phototransistor detectors positioned face-to-face within a surface mount package, enabling versatile sensing capabilities in a minimal footprint of 5.5 x 4 x 5.7 mm.

The tall dome construction of the package provides additional mechanical space, optimizing it for vertical signal encoding applications. The device features a slot width of 3 mm with an aperture size of 0.3 mm and a precise channel distance of 0.8 mm center-to-center, allowing reliable optical switching performance.

With a typical rise time of 9 microseconds and fall time of 16 microseconds, the TCUT1600X01 supports rapid switching for high-speed sensor applications. Its operating temperature range from -40°C to 105°C and compliance with automotive-grade AEC-Q101 standards make it suitable for harsh automotive and industrial environments.

The emitter wavelength is centered at 950 nm, ensuring optimal infrared emission quality for precise sensing. This slotted optical switch operates with a typical output current of 1.6 mA under test conditions and adheres to moisture sensitivity level 1 requirements, guaranteeing reliable soldering and long-term durability.

Packaged in tape and reel format, the device is well suited for automated assembly processes, supporting efficient manufacturing and production workflows. Compact transmissive sensor with infrared emitter and dual phototransistor detectors.

Tall dome design provides mechanical room for vertical encoding. Small footprint 5.5 x 4 x 5.7 mm dimensions for surface mount applications. Automotive qualified to AEC-Q101 for demanding environments. Typical rise time of 9μs and fall time of 16μs ensures fast response.

Wide operating temperature range from -40 to 105°C for versatility. Emitter wavelength optimized at 950 nm for accurate detection. Moisture sensitivity level 1 supports lead-free soldering reliability. Tape and reel packaging for streamlined manufacturing integration.

Channel center-to-center distance of 0.8 mm for precise switching.

This product is ideal for automotive optical sensors, position encoding, motion, speed, and direction sensing, as well as 'turn and push' encoding applications. It is designed for use in industrial, automotive, laboratory, and manufacturing processes requiring accurate, compact optoelectronic components.
