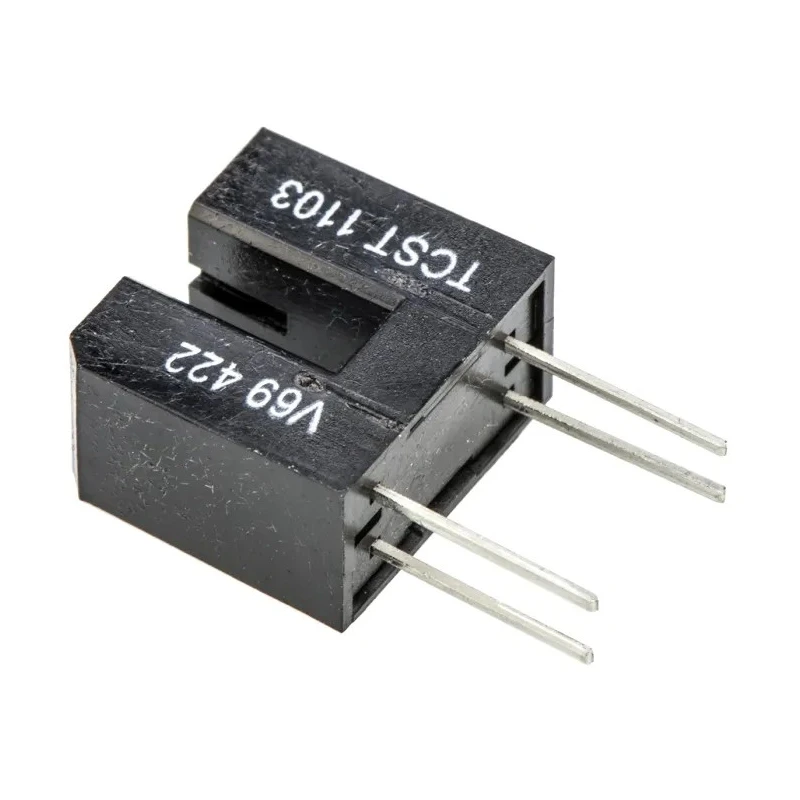

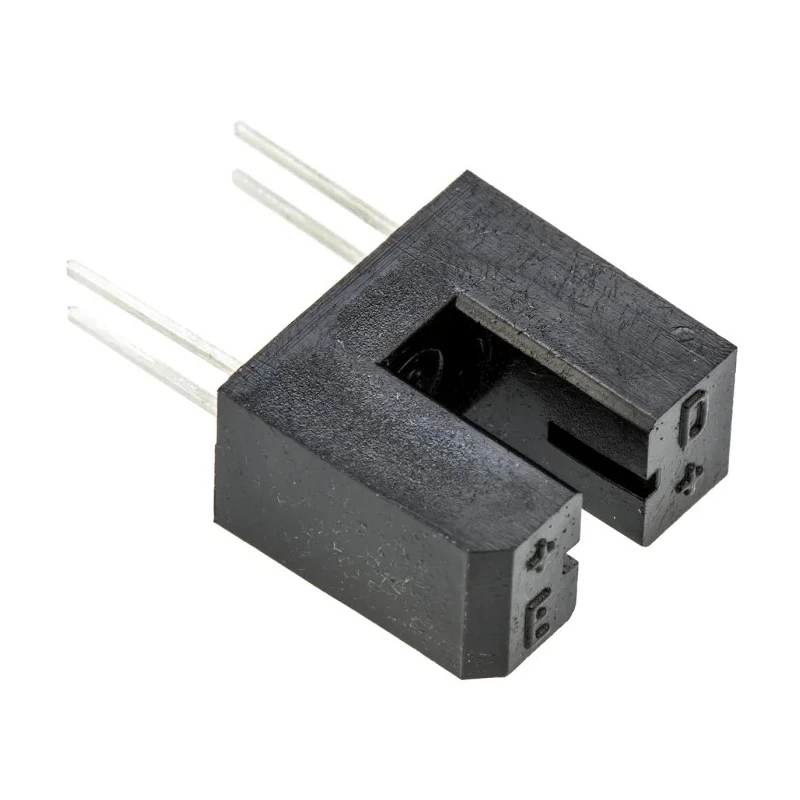

Vishay Through Hole Slotted Optical Switch Phototransistor Output Leaded Package TCST1103
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 11.1mm |
| Length | 11.9mm |
| Model | TCST1103 |
| Packaging | Tube |
| Width | 6.3mm |
| Mount Type | Through Hole |
| Detector Type | phototransistor |
| Maximum Operating Temperature | 85°C |
| Package Type | Leaded |
| Minimum Operating Temperature | -55°C |
| Slot Width | 3.1mm |
| Number Of Channels | 1 |
| Output Device | Phototransistor |
| Standards/Approvals | RoHS |
| Number of Pins | 4 |
| Typical Rise Time | 10μs |
| Typical Fall Time | 8μs |
| Dimensions (L x W x H in mm) | 24.5 x 6.3 x 10.8 |
| Gap (in mm) | 3.1 |
| Emitter wavelength | 950 nm |
Key Features
- The device features a phototransistor output for reliable signal detection.
- It offers a 3.1 mm slot width and dimensions of 24.5 x 6.3 x 10.8 mm (L x W x H).
- Typical rise and fall times are 10 μs and 8 μs respectively for fast response.
- Designed for through-hole mounting in leaded package style.
- Operating temperature range from -55°C to 85°C ensures durability in varied environments.
- The 4-pin configuration facilitates simple integration on PCB layouts.
- RoHS compliant, ensuring environmental safety and regulatory conformance.
- Infrared emitter wavelength of 950 nm, with daylight blocking filter for ambient light immunity.
Product Description
Vishay TCST1103 through hole slotted optical switch with phototransistor output is designed as a miniature transmissive sensor combining an infrared emitter and phototransistor located face-to-face in a leaded package that blocks visible light.
This sensor features a 3.1 mm aperture width slot allowing precise detection of object interruption in optical switching, photo interrupters, counters, and encoder applications in industrial automation and manufacturing.
The package is leaded for through-hole mount, measuring 24.5 mm length, 6.3 mm width, and 10.8 mm height. It has a four-pin configuration that simplifies circuit implementation and ensures mechanical stability.
Typical output current under test for the TCST1103 is lower than similar models, operating with a phototransistor output device, capable of switching speeds with rise time of 10 microseconds and fall time of 8 microseconds.
This component operates reliably between -55°C and 85°C offering durability across a wide temperature range suitable for industrial environment applications. It includes a daylight blocking filter and emits infrared light at 950 nm wavelength for high ambient light resistance.
The Slotted Optical Switch is RoHS compliant, complying with environmental standards. Applications include optical switches, photo interrupter circuits, position sensing, and encoder feedback. Ideal for industrial machines, measuring instruments, and electronic control systems requiring optical detection.
Set yourself up for efficient automation and precision sensing with Vishay's TCST1103. Browse the Electronics & Electricals Sensors category at EnvMart for more high-quality optical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TCST1103 features a slot width of 3.1 mm, allowing for precise detection of object interruptions.
The dimensions of the TCST1103 are 24.5 mm in length, 6.3 mm in width, and 10.8 mm in height.
This model has a typical rise time of 10 μs and a fall time of 8 μs, providing fast response times for signal detection.
The TCST1103 operates reliably within a temperature range of -55°C to 85°C, making it suitable for various industrial environments.
The TCST1103 has a 4-pin configuration, which simplifies integration on PCB layouts.
This model features a phototransistor output, which is designed for reliable signal detection.
Yes, the TCST1103 is RoHS compliant, ensuring it meets environmental safety and regulatory standards.
The emitter wavelength of the TCST1103 is 950 nm, which helps in providing ambient light immunity.
The TCST1103 is designed for through-hole mounting in a leaded package style.
This optical switch is suitable for applications such as optical switches, photo interrupter circuits, position sensing, and encoder feedback.
The gap size for the TCST1103 is 3.1 mm, corresponding to the slot width.
The TCST1103 is packaged in a tube for distribution.
