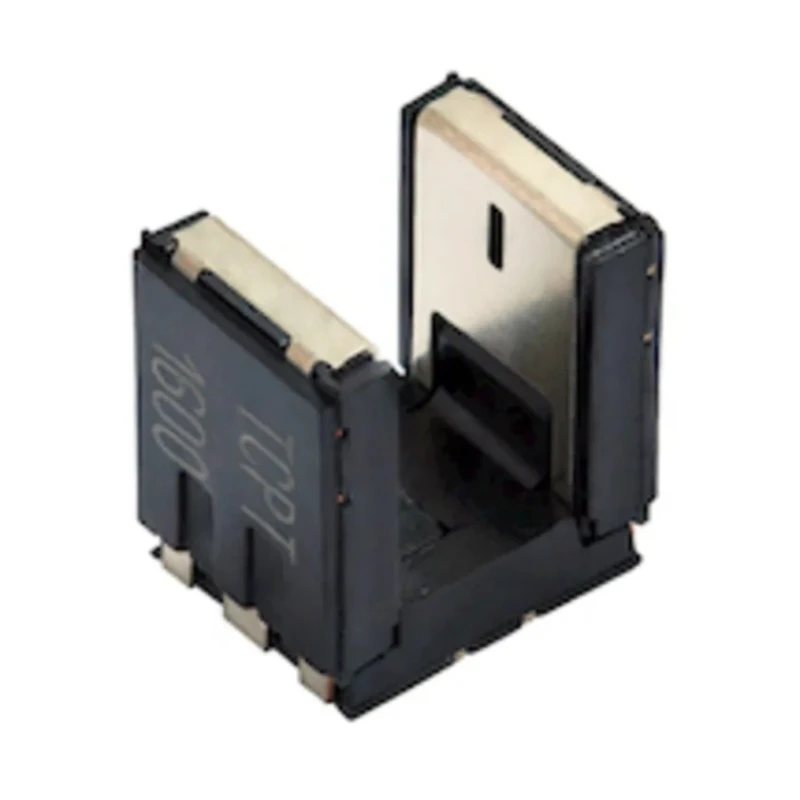

Vishay Surface Slotted Optical Switch with Transistor Output, 3mm Slot Width, AEC-Q101 TCPT1600X01
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 5.7mm |
| Length | 5.5mm |
| Model | TCPT1600X01 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Surface |
| Detector Type | phototransistor |
| Maximum Operating Temperature | 105°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Slot Width | 3mm |
| Number Of Channels | 1 |
| Output Device | Transistor |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Typical Rise Time | 9μs |
| Typical Fall Time | 16μs |
| Automotive Standard | AEC-Q101 |
| Dimensions (L x W x H in mm) | 5.5 x 4 x 5.7 |
| Gap (in mm) | 3 |
| Emitter wavelength | 950 nm |
| Moisture sensitivity level (MSL) | 1 |
| Aperture (in mm) | 0.3 |
Key Features
- The device features a compact design with a 3mm slot width suitable for precise sensing.
- It contains an infrared emitter and a phototransistor detector for reliable optical switching.
- The AEC-Q101 qualification ensures automotive-grade quality and reliability.
- The surface mount package provides mechanical stability and ease of PCB integration.
- Operation temperature range is from -40°C to 105°C, suitable for harsh environments.
- A typical rise time of 9 microseconds and fall time of 16 microseconds support fast switching.
- The typical output current under test is 1.6 mA with an emitter wavelength of 950 nm.
- Lead-free soldering and moisture sensitivity level 1 support environmentally compliant assembly.
Product Description
Vishay TCPT1600X01 is a compact surface-mount slotted optical switch that integrates an infrared emitter and phototransistor detector facing each other within a 5.5 x 4 x 5.7 mm package.
Its 3 mm slot width and 0.3 mm aperture make it ideal for precision optical sensing applications. This slotted optical switch has a transistor output device with six pins and supports a typical output current of 1.6 mA at an emitter wavelength of 950 nm.
Qualified to the AEC-Q101 automotive standard, it is rated for operating temperatures from -40°C to 105°C, making it suitable for automotive and industrial sensor applications such as motion detection, position encoding, and speed sensing.
The device comes in tape and reel packaging for efficient assembly and is compliant with RoHS and lead-free soldering standards. The compact form factor supports vertical signal encoding due to its tall dome package design.
Typical electrical characteristics include a rise time of 9 μs and fall time of 16 μs for precise switching response. Applications include automotive optical sensors, encoder position sensing, motion and speed detection, and turn-and-push encoding.
The product offers robustness with a moisture sensitivity level of 1 and is manufactured in the Philippines. Its surface mount design facilitates integration into high-density PCBs in industrial, automotive, and manufacturing environments.
Vishay’s TCPT1600X01 is ideal for engineers seeking a reliable, fast response optical switch in demanding applications. Explore more Slotted Optical Switches and related sensors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TCPT1600X01 features a slot width of 3 mm, making it suitable for precise sensing applications.
This optical switch operates within a temperature range of -40°C to 105°C, allowing it to function in harsh environments.
The dimensions of the TCPT1600X01 are 5.5 mm in length, 4 mm in width, and 5.7 mm in height.
The TCPT1600X01 has a transistor output, which is suitable for various sensing applications.
The typical rise time for the TCPT1600X01 is 9 microseconds, supporting fast switching capabilities.
The typical fall time for the TCPT1600X01 is 16 microseconds, allowing for efficient optical switching.
The emitter wavelength for this optical switch is 950 nm, which is suitable for its sensing applications.
This model has a total of 6 pins, which facilitate its connection and integration into circuits.
The TCPT1600X01 is packaged in tape and reel format, which is efficient for assembly processes.
This optical switch is qualified to the AEC-Q101 automotive standard, ensuring its reliability for automotive applications.
The moisture sensitivity level (MSL) of the TCPT1600X01 is rated at level 1, indicating its suitability for standard assembly processes.
This optical switch is suitable for applications such as motion detection, position encoding, and speed sensing in automotive and industrial environments.
