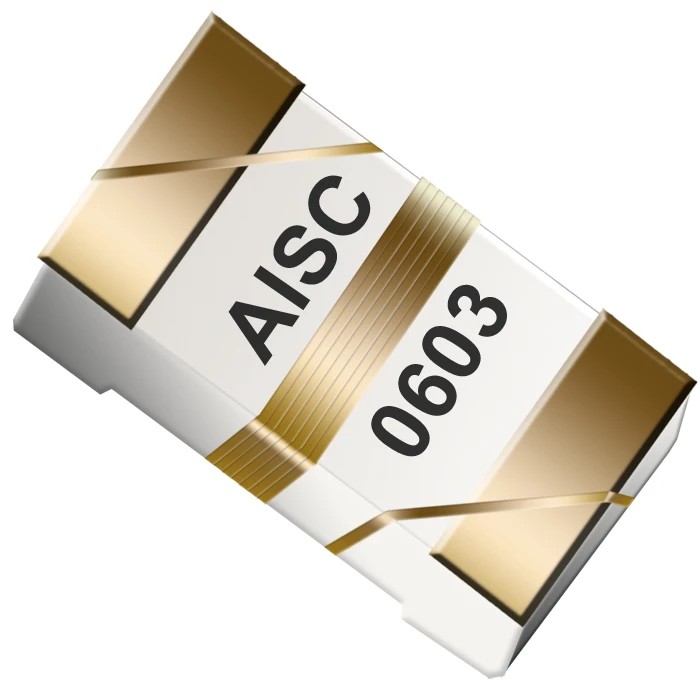

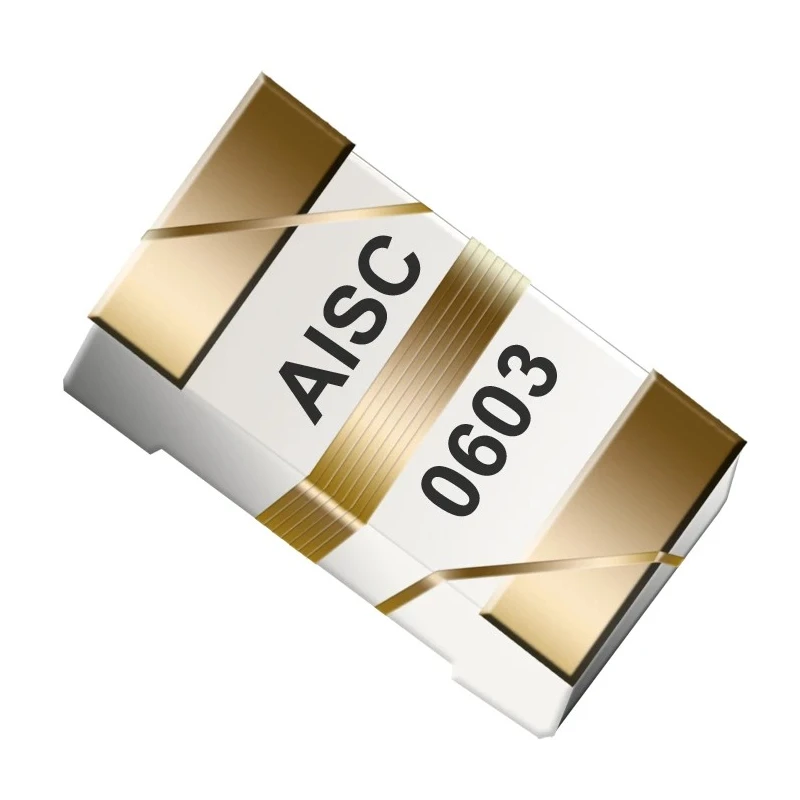

Abracon Surface Mount Inductor 470 nH 5% Tolerance Ferrite Core Wirewound 470mA AISC-0603F-R47J-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 1.6mm |
| Model | AISC-0603F-R47J-T |
| Depth | 1mm |
| Packaging | Tape & Reel |
| Series | AISC-0603F |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 470nH |
| Standards/Approvals | Pb RoHS/RoHS II, ISO 9001 / QS 9000, ISO 9001 :2008 |
| Package/Case | Surface Mount |
| Maximum DC Current | 470mA |
| Pin Count | 2 |
| Maximum DC Resistance | 0.37Ω |
| Inductance Tolerance | 5 % |
| Inductor Construction | Wirewound |
| Standards/ApprovalsPb RoHS/RoHS II, ISO 9001 / QS 9000, ISO 9001 | 2008 |
Key Features
- Compact 1.6mm length and 1mm height surface mount package.
- Ferrite core wirewound construction for reliable inductance performance.
- Inductance tolerance of 5% ensures consistent circuit behavior.
- Maximum DC resistance is 0.37 ohms for efficient signal integrity.
- Operating temperature range is -40°C to 85°C for robust environmental tolerance.
- 2-pin configuration tailored for surface mount technology assembly.
- Compliance with RoHS and ISO 9001 standards assures quality and environmental safety.
- Packaging in tape and reel format facilitates automated machine insertion.
Product Description
The Abracon AISC-0603F-R47J-T is a Surface Mount Inductor featuring a ferrite core and wirewound construction, valued at 470 nH inductance with a 5% tolerance. This component supports a maximum DC current of 470 mA, making it suitable for a wide range of electronic devices such as camcorders, LED televisions, and other precision circuits requiring stable inductance.
Its compact size with a length of 1.6 mm, height of 1 mm, and depth of 1 mm allows for high density PCB designs. The inductor is moulded and constructed to offer excellent environmental and mechanical durability with an operational temperature range from -40°C to 85°C.
The maximum DC resistance of 0.37 ohms helps maintain signal quality and efficiency within circuits. Its 2-pin surface mount package is designed for compatibility with automated assembly lines using tape and reel packaging, optimizing production efficiency. This model series complies with important quality and environmental standards, including Pb RoHS, RoHS II, and ISO certifications.
Industrially, this inductor is suitable for consumer and commercial electronics manufacturing, laboratory equipment, HVAC control systems, and various manufacturing process control devices requiring high-quality passive components.
Compact 1.6 mm length and 1 mm height surface mount profile. Ferrite core with wirewound construction for high current tolerance. 5% inductance tolerance for precision applications. 470 mA maximum DC current rating. Wide operating temperature range from -40°C to 85°C.
Compliance with RoHS and ISO 9001 standards. Packaging in tape and reel format supports automated SMT assembly. Explore more from the Abracon range of inductors and other electronic components at EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 470 nH with a tolerance of 5%.
This inductor supports a maximum DC current of 470 mA.
The dimensions of this model are 1.6 mm in length, 1 mm in height, and 1 mm in depth.
It operates within a temperature range of -40°C to 85°C.
It is packaged in tape and reel format, facilitating automated machine insertion.
This inductor features a ferrite core with wirewound construction.
The maximum DC resistance is 0.37 ohms, which helps maintain signal integrity.
It complies with Pb RoHS, RoHS II, and ISO 9001 standards.
This model has a 2-pin configuration designed for surface mount technology.
It is suitable for consumer and commercial electronics, laboratory equipment, and HVAC control systems.
This inductor is part of the AISC-0603F series.
The country of origin for this model is India.
