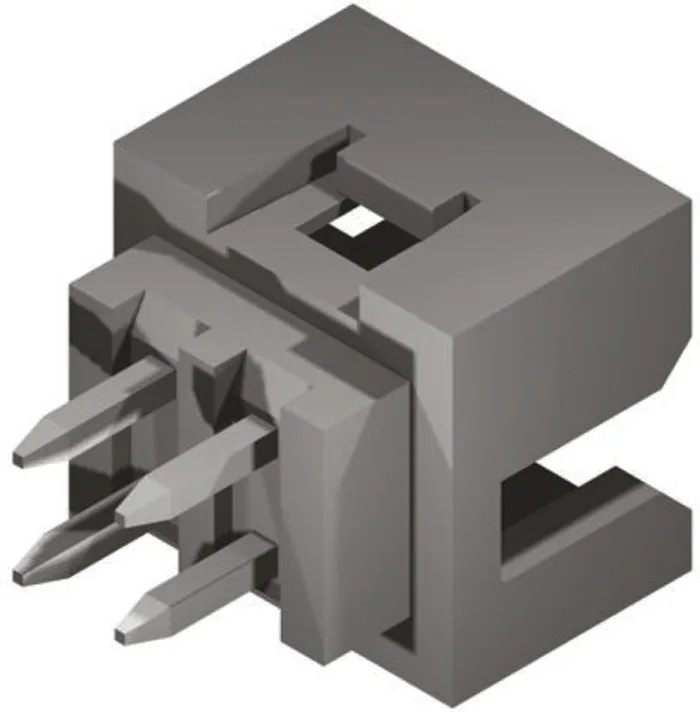

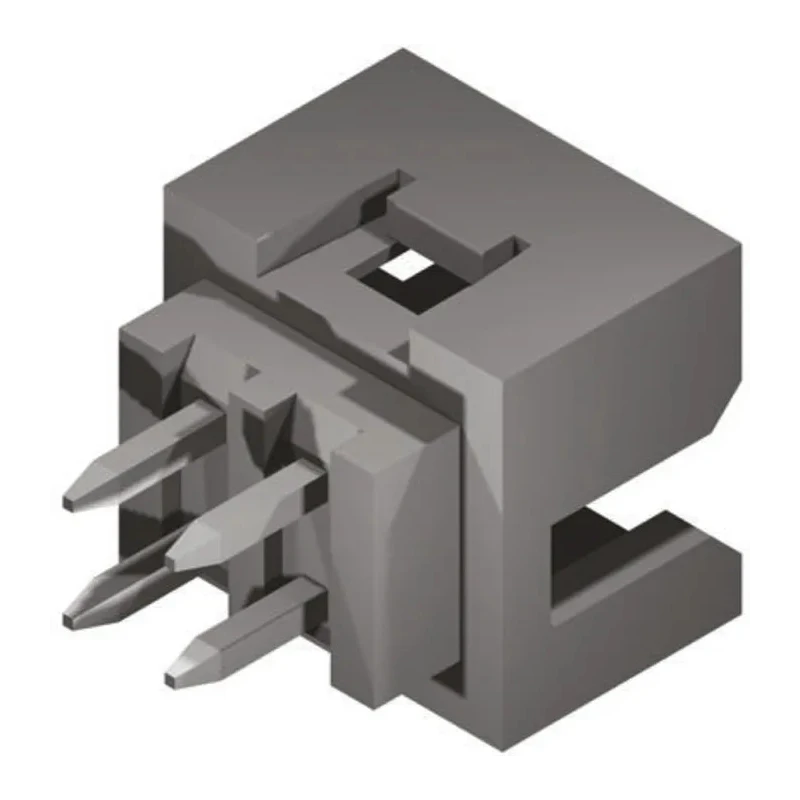

Molex Milli-Grid Series Straight Through Hole Shrouded PCB Header 6 Contacts 2 mm Pitch 2 Row 87831-0641

Molex 87831-0641 Milli-Grid Series Straight Through Hole PCB Header is a high-density wire-to-board connector featuring 6 contacts arranged in 2 rows with a 2 mm pitch. It has a shrouded nylon housing which protects contacts from damage and provides robust mechanical support for secure connections.

Designed with a centre polarization slot and locking windows, this PCB header prevents mis-mating and ensures a stable, secure connection with its mating receptacle. The brass contacts are plated with gold to increase corrosion resistance and electrical performance.

The header’s kinked solder tails and locating pegs enable efficient PCB retention and automatic insertion process during assembly. Suitable for through-hole mounting, the connector is oriented straight for ease of integration on circuit boards.

Operating within a temperature range of -55°C to 105°C and rated for 125 V and 2 A, the connector is ideal for demanding industrial, electronic, and telecommunication equipment including printers, routers, servers, automotive audio systems, security alarms, and digital media devices.

High density 2.00 x 2.00 mm grid design provides compact and flexible PCB layout options. Shrouded design offers protection against mechanical damage to contacts. Centre polarization slot prevents incorrect mating and enhances reliability.

Locking windows ensure secure attachment to mating connectors. Kinked solder tails secure retention on the PCB and improve solder joint strength. Nylon housing offers good strength and electrical insulation. Gold-plated brass contacts ensure excellent conductivity and corrosion resistance.

Through-hole mounting with straight orientation for easy PCB assembly. Wide temperature tolerance for use in industrial, automotive, and commercial applications.

This Molex Milli-Grid PCB header series finds applications across various electronic systems requiring high-density, reliable connections. It is well suited to industrial manufacturing, telecommunications, automotive electronics, and consumer electronic devices.
