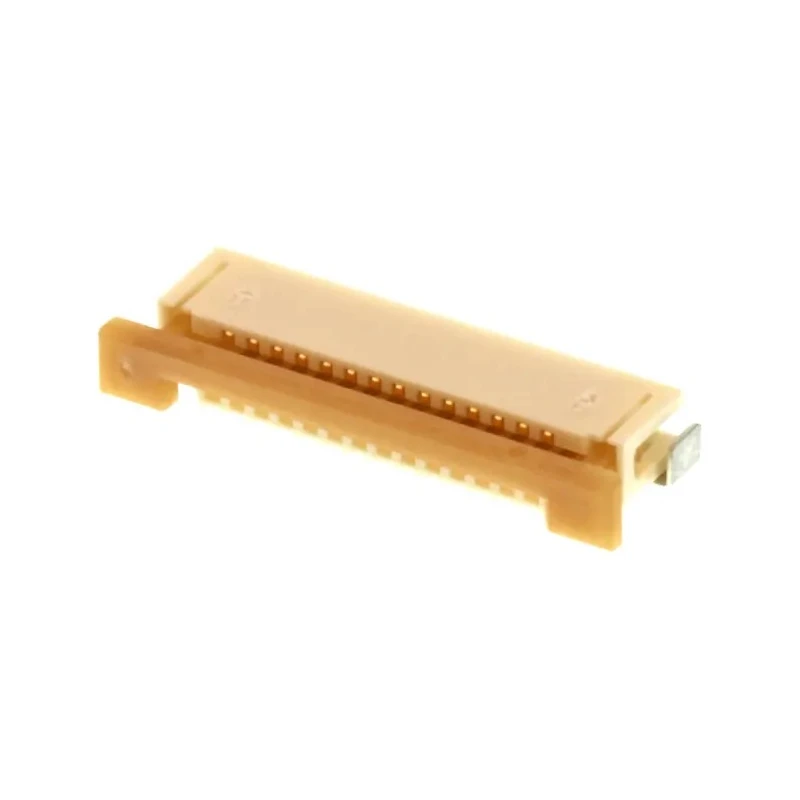

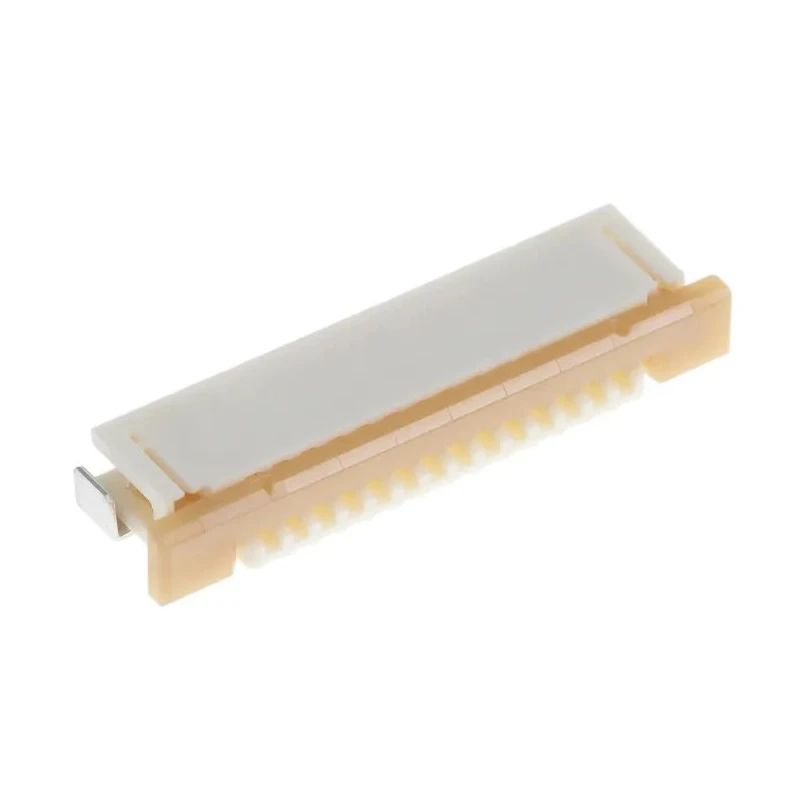

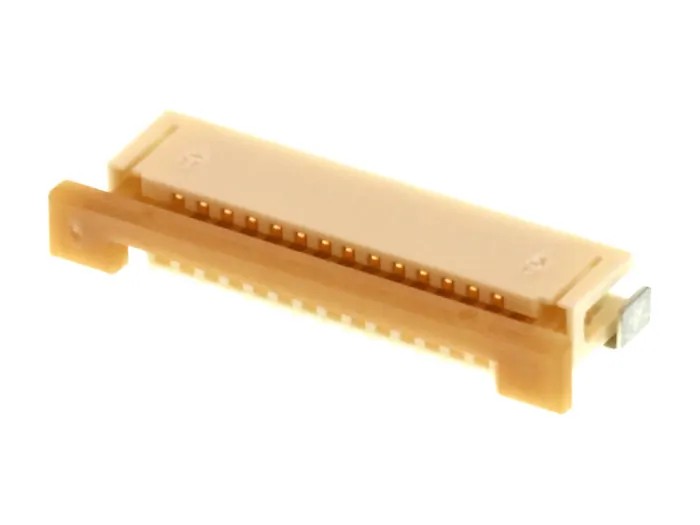

Molex 1 mm Pitch 14 Way Right Angle Female FPC Connector, Solder 52271-1469

Molex 52271-1469 is a 14 way, 1 mm pitch right angle female FPC connector designed for solder termination on PCBs. This connector features a robust and flame-retardant nylon housing that resists moisture, making it suitable for demanding industrial and electronic applications. The connector's gold-plated phosphor bronze contacts provide excellent electrical flow with low resistance. Its bottom-positioned contacts and right angle orientation help maximize space efficiency on PCBs.

The ZIF (Zero Insertion Force) slide actuator rotates 30° to allow for easy insertion and removal of flexible printed circuits while maintaining a secure connection. The locking mechanism ensures reliable electrical contact retention, supplemented by solder tabs that provide strain relief and durable mounting to the PCB. Operating temperature range is from -40°C to 85°C, supporting applications in harsh environments.

This Easy-On Series connector is suitable for devices and industries including automotive audio/navigation systems, consumer electronics such as notebooks and LCD TVs, datacommunications, medical equipment, and mobile phones. It supports currents up to 500 mA and voltages up to 50 V AC, making it ideal for data terminals and compact electronic assemblies requiring reliable interconnects.

Robust nylon housing resistant to moisture and flame-retardant. Gold-plated phosphor bronze contacts ensure excellent conductivity. Solder tails provide secure PCB mounting and strain relief. Right angle connector with bottom contacts to save PCB space.

ZIF slide actuator for easy and secure FPC insertion. Operating temperature range from -40°C to 85°C for versatile use. Locking mechanism for secure mating retention. Single row with 14 contacts for multi-signal connection.

Suitable for automotive, consumer electronics, medical, and communications applications. Explore the Molex FPC Connector category on EnvMart for more high-quality PCB interconnect solutions.
