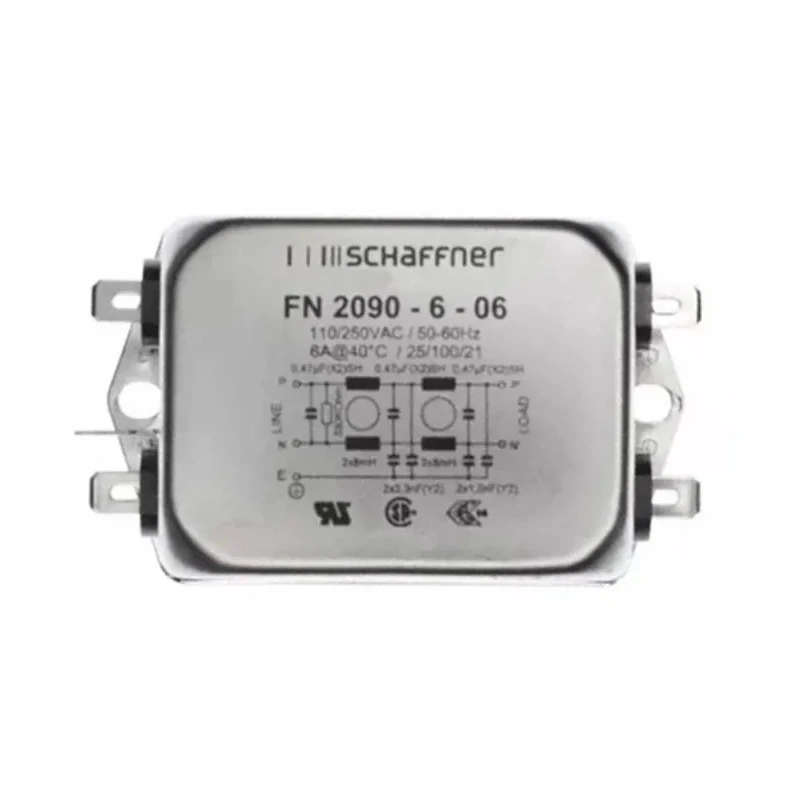

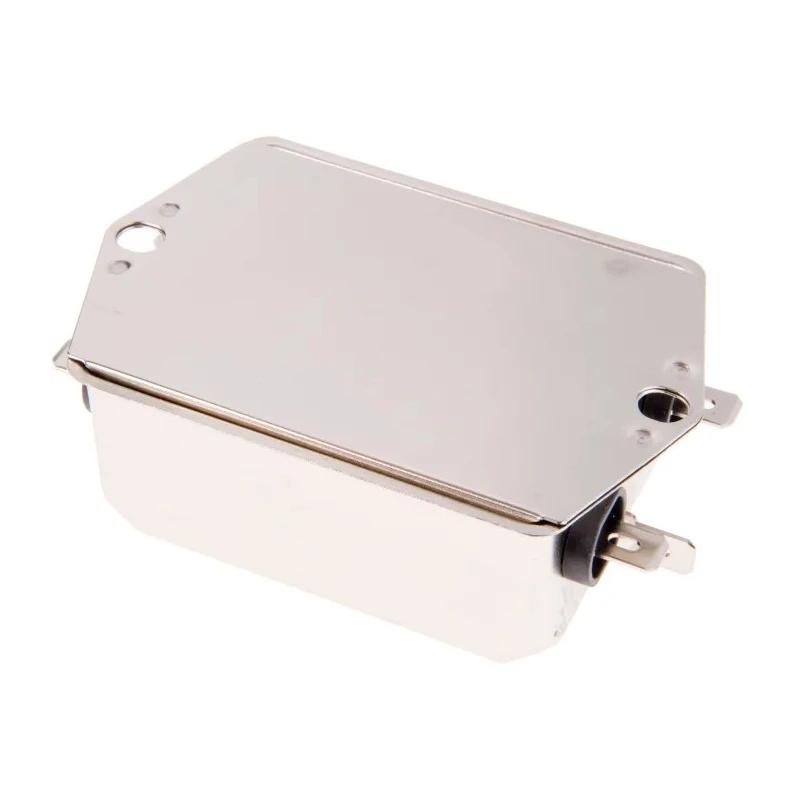

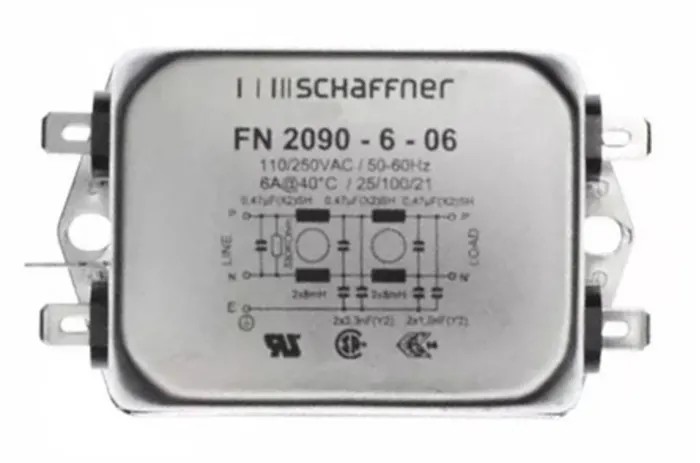

Schaffner Chassis Mount EMI Filter FN2090 6 A 250V ac/dc 0Hz-400Hz 2-Stage Fast-On 1 Phase

Schaffner FN2090-6-06 is a chassis mount EMI filter engineered for suppression of electromagnetic interference in electrical and electronic systems. Rated for a maximum current of 6 A and voltage up to 250 V AC/DC, this filter operates efficiently in single-phase applications across frequencies from 0 Hz to 400 Hz.

Featuring a robust two-stage filtering design, the FN2090 series provides excellent conductive attenuation to mitigate noise in sensitive equipment such as consumer electronics, household appliances, industrial machinery, building automation, medical devices, and communication equipment. Fast-on termination style ensures quick and secure connections during assembly or maintenance.

The filter's electrical specifications include a capacitance of 470nF, inductance of 8mH, and resistance of 330 kΩ, enabling high attenuation of both differential and common mode interferences. Operating temperature ranges from -25°C minimum up to 100°C maximum, suitable for diverse environmental conditions.

Physical dimensions are compact with length 85 mm, depth 54 mm, and height 30.3 mm, facilitating easy chassis mounting and integration within enclosures. The filter exhibits low leakage current of 670 μA and power loss of 7.1 W, ensuring energy-efficient operation while maintaining performance.

Manufactured in Thailand, this new Schaffner FN2090 chassis mount EMI filter conforms to industry requirements but carries no specific standards or approvals noted. It is particularly recommended for industrial, laboratory, commercial, and medical applications where noise reduction and regulatory compliance are crucial.

The filter employs a two-stage design for high attenuation of conducted EMI noise. Capacitance 470nF and inductance 8mH optimize filtering performance. Termination style is Fast-On for ease of installation. Operates reliably across a wide temperature range from -25°C to 100°C.

Compact chassis mount form factor with dimensions 85x54x30.3 mm (LxDxH). Low leakage current of 670μA and resistance 330kΩ support safe operation. Power loss rated 7.1W for demanding applications. Manufactured in Thailand to ensure quality standards.

Ideal for consumer goods, industrial machinery, medical equipment, and communication systems. Explore more Schaffner EMI filters and components in the Electronics Components category at EnvMart for comprehensive noise suppression solutions.
