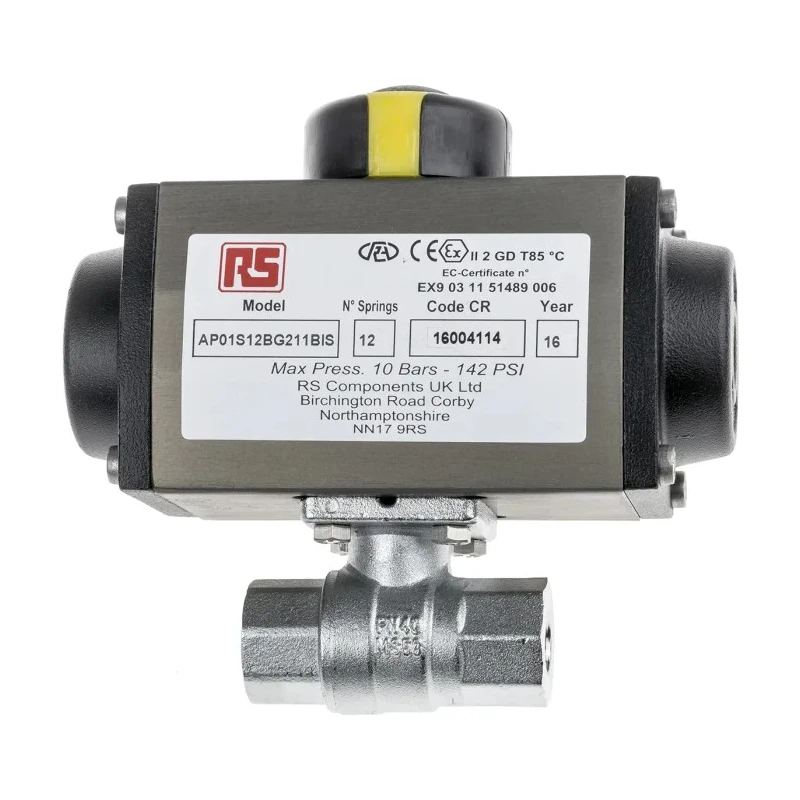

RS PRO Ball Type Pneumatic Actuated Valve 40 bar BSP Female 1/4 in 760-5598
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Maximum Operating Pressure | 40 bar |
| Inlet Connection Type | Threaded |
| Model | 760-5598 |
| Valve Type | Ball |
| Valve Material | Hot Pressed Brass |
| Inlet Port Size | 1/4 in |
| Default Valve Position | NC |
| Inlet Thread Standard | BSP |
| Inlet Port Gender | Female |
| Return Type | Spring |
Key Features
- Constructed from hot pressed brass for durability and corrosion resistance.
- Operates with a double acting pneumatic actuator for precise valve control.
- End caps and valve body made of hot pressed brass ensuring robust performance.
- Features PTFE seat ring and body seal for tight sealing and long service life.
- Spring return type with normally closed default valve position.
- Ball component is brass chrome plated for enhanced wear resistance.
- Stem and stem rings made from brass and Viton respectively for high temperature tolerance.
- Seals include NBR 70 O-ring for reliable operation and minimal leakage.
Product Description
RS PRO 760-5598 is a ball type pneumatic actuated valve engineered for industrial fluid power control that operates up to a maximum pressure of 40 bar. It features BSP threaded female inlet and outlet connections with a port size of 1/4 inch, making it compatible with standard pipeline systems.
The valve body and end caps are manufactured from hot pressed brass which provides excellent durability and corrosion resistance under industrial conditions. The ball within the valve is brass chrome plated, offering superior wear resistance to ensure longevity and reliable sealing performance.
This valve integrates a double acting pneumatic actuator with a spring return, where the default valve position is normally closed. The seat ring and body seal utilise PTFE material to maintain a tight seal and resist chemical corrosion. The stem is constructed from brass with a Viton stem ring, and an NBR 70 O-ring is incorporated for additional sealing efficiency, ensuring minimal leakage and consistent operation.
Designed for use in high-performance pneumatic fluid power systems, this valve finds applications across industrial, manufacturing, HVAC, and process control environments where reliable automated flow control is critical.
Constructed from hot pressed brass for durability and corrosion resistance. Operates with a double acting pneumatic actuator for precise valve control. End caps and valve body made of hot pressed brass ensuring robust performance.
Features PTFE seat ring and body seal for tight sealing and long service life. Spring return type with normally closed default valve position. Ball component is brass chrome plated for enhanced wear resistance. Stem and stem rings made from brass and Viton respectively for high temperature tolerance.
Seals include NBR 70 O-ring for reliable operation and minimal leakage. Suitable for demanding pneumatic fluid power applications in industrial environments. Manufactured in United Kingdom to exacting standards.
This RS PRO ball type pneumatic actuated valve is an essential component for reliable flow regulation in pneumatic systems. Explore more Pneumatic Actuated Valves from RS PRO and other industrial valve categories on EnvMart for comprehensive fluid control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic actuated valve is 40 bar.
It features BSP threaded female inlet and outlet connections with a port size of 1/4 inch.
The valve body and end caps are made from hot pressed brass, while the ball component is brass chrome plated for enhanced wear resistance.
The default valve position is normally closed (NC).
It operates with a double acting pneumatic actuator and includes a spring return mechanism.
The valve features a PTFE seat ring and body seal, along with an NBR 70 O-ring for reliable operation and minimal leakage.
This valve is manufactured in the United Kingdom.
It is designed for use in industrial, manufacturing, HVAC, and process control environments where reliable automated flow control is critical.
This model is a ball type valve.
The inlet connection type is threaded, adhering to the BSP standard.
The return type of this valve is spring, which assists in its normally closed operation.
The PTFE seat ring provides a tight seal and resists chemical corrosion, contributing to the valve's long service life.
