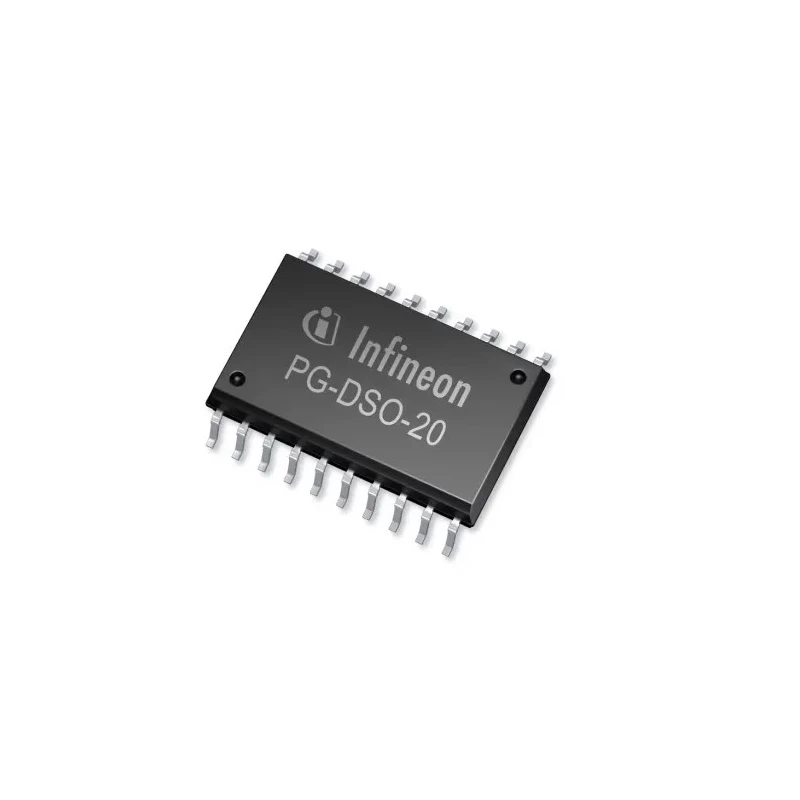

Infineon High Side 4 Channel Power Switch IC, 20-Pin DSO Package, 5.5-40V Supply, 3.3A Output Current BTS724GXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 3.25mm |
| Length | 15.9mm |
| Model | BTS724GXUMA1 |
| Width | 11mm |
| Mount Type | Surface |
| Number of inputs | 4 |
| Series | BTS724G |
| Maximum Operating Temperature | 150°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Operating Current | 3.3A |
| Number of outputs | 4 |
| Pin Count | 20 |
| Automotive Standard | AEC |
| Maximum Supply Voltage | 40V |
| Minimum Supply Voltage | 5.5V |
| Switch On Resistance RdsOn | 180mΩ |
Key Features
- The device integrates four high-side channels providing independent load control and segregation.
- Supports logic interfacing with four dedicated inputs for straightforward control.
- Operates over a wide supply voltage range from 5.5V to 40V suitable for vehicle systems.
- Features low switch on-resistance of 180 milliohms to reduce conduction losses.
- Designed for harsh environments with an operating temperature range from -40°C to 150°C.
- Compact DSO surface-mount package with 20 pins enables efficient PCB layout.
- Supports output current of up to 3.3A for moderate power actuators and loads.
- Automotive grade device compliant with AEC standards for reliable vehicle use.
Product Description
Infineon BTS724GXUMA1 is a high-side Power Switch IC designed to provide four independent channels for controlling loads in automotive electrical systems. Packaged in a compact 20-pin DSO surface-mount form factor, this device supports a supply voltage range from 5.5V to 40V, accommodating typical vehicle voltage levels.
The device features a high-side switching topology which places the switching element between the supply and the load, offering protected sourcing capabilities. It supports an output current of 3.3A per channel and maintains a low on-resistance of 180 milliohms, minimizing power loss and heat dissipation.
Designed for use in harsh automotive environments, the device operates reliably across a wide temperature range from -40°C up to 150°C. It includes four input pins for simple logic control of each channel, suitable for integration with automotive microcontrollers or control modules.
Applications include body control modules managing lighting and signaling loads, driver assistance peripheral power management, small actuator motor driving, and infotainment sub-system power distribution. Its robust performance and automotive AEC compliance ensure operational reliability in critical vehicle subsystems.
The BTS724GXUMA1's surface-mount 20-pin DSO package enables efficient printed circuit board footprint utilization and standard assembly processes. This makes it a practical choice for compact automotive electronics designs requiring multiple high-side controlled power outputs.
The device offers four independent high-side switches for flexible load management. Wide supply voltage range and automotive-grade thermal tolerance ensure durability. Low conduction losses with 180mΩ Rds(on) improve efficiency.
Surface mount DSO package with 20 pins for compact PCB integration. Supports up to 3.3A current per channel for moderate loads and actuators. Four inputs simplify logic interfacing and control. Suitable for a range of automotive power management applications.
Compliant with AEC automotive standards for quality and reliability. Explore the extensive range of power management ICs and semiconductor components at EnvMart for your industrial and automotive electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a supply voltage range from 5.5V to 40V, making it suitable for typical vehicle voltage levels.
The device supports an output current of up to 3.3A per channel, allowing it to drive moderate power actuators and loads.
It features a low switch on-resistance of 180 milliohms, which helps to reduce conduction losses.
This model operates reliably across a wide temperature range from -40°C to 150°C, suitable for harsh automotive environments.
The device integrates four independent high-side channels for controlling loads, allowing for flexible load management.
It is packaged in a compact 20-pin DSO surface-mount form factor, enabling efficient PCB layout and assembly.
The device includes four dedicated input pins for straightforward logic interfacing and control of each channel.
It is compliant with AEC automotive standards, ensuring reliability for use in vehicle systems.
The dimensions of this model are 15.9mm in length, 11mm in width, and 3.25mm in height.
It is suitable for applications such as body control modules, driver assistance power management, small actuator motor driving, and infotainment power distribution.
This model is designed for surface mounting, which facilitates efficient integration into printed circuit boards.
This power switch IC is part of the BTS724G series, which includes various high-side power switch devices.
