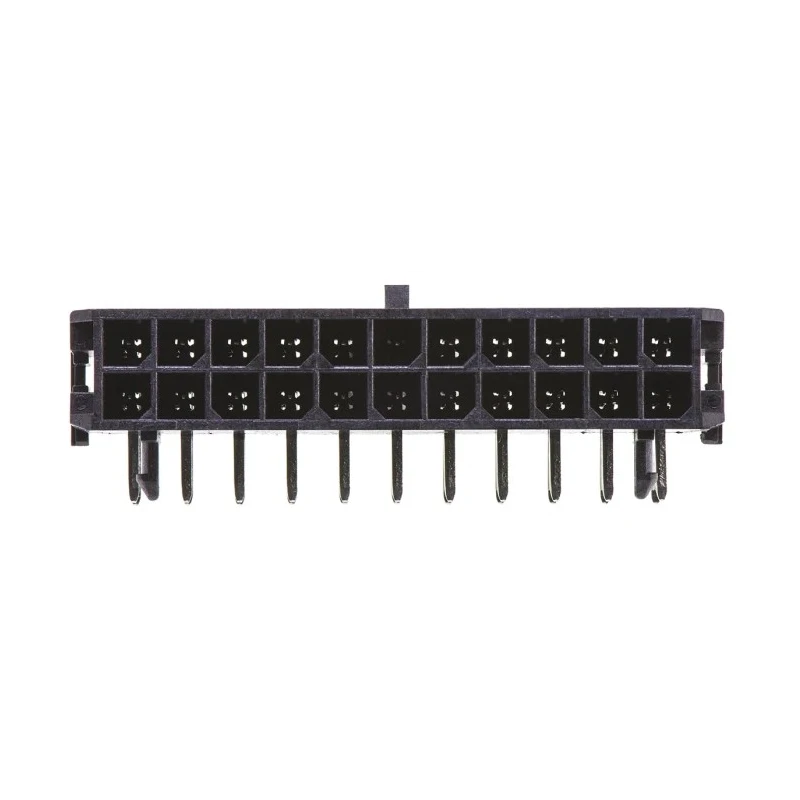

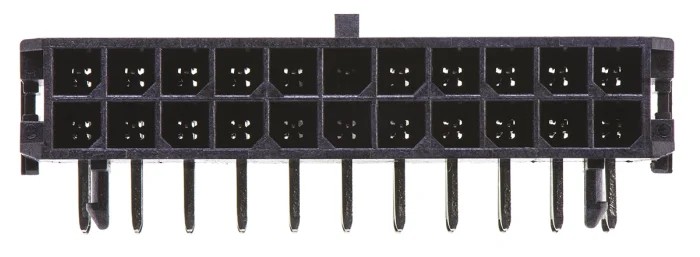

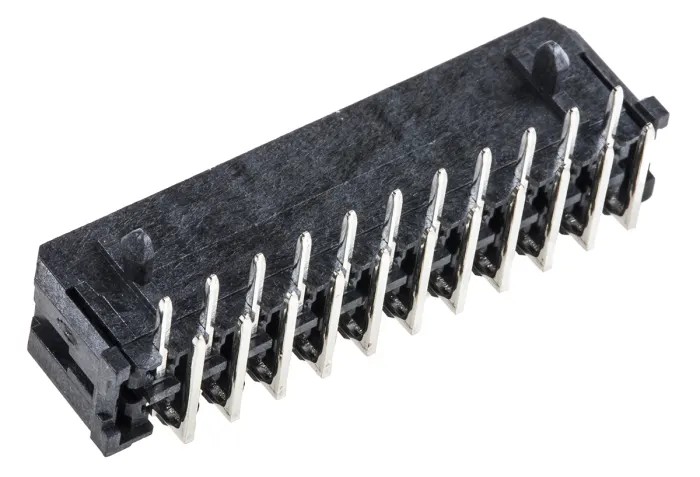

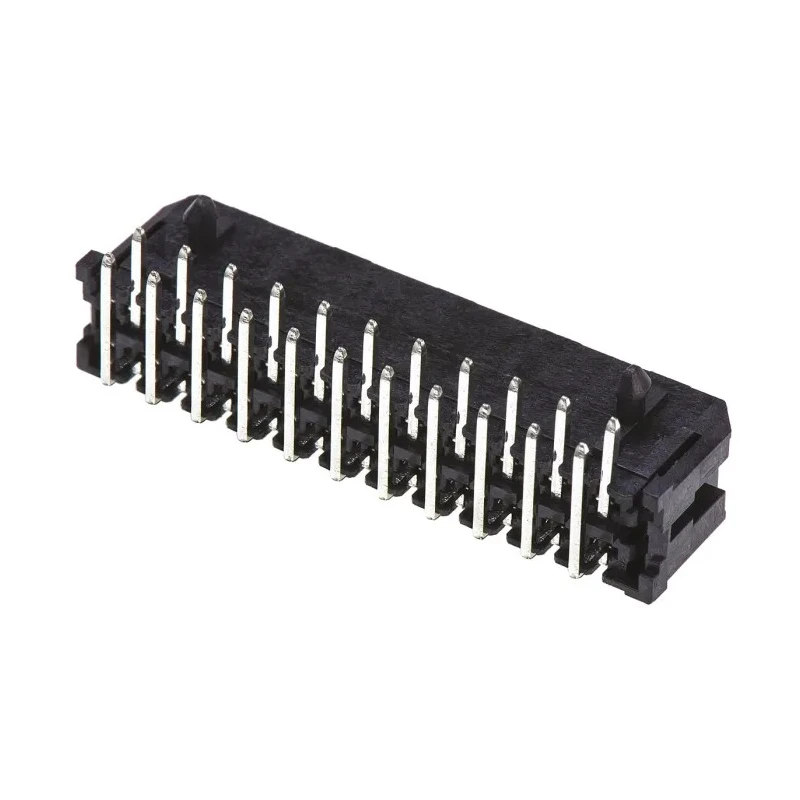

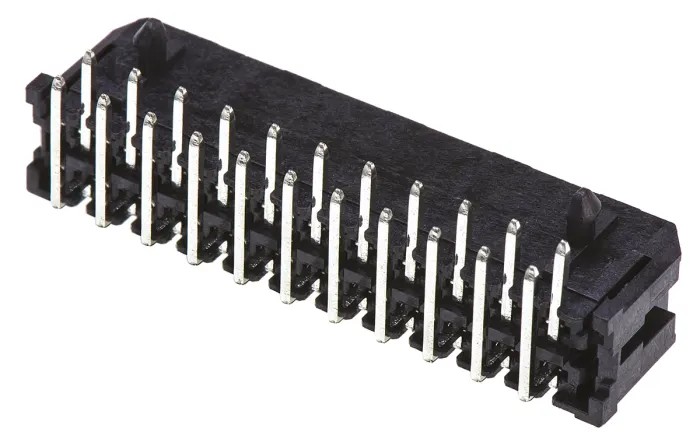

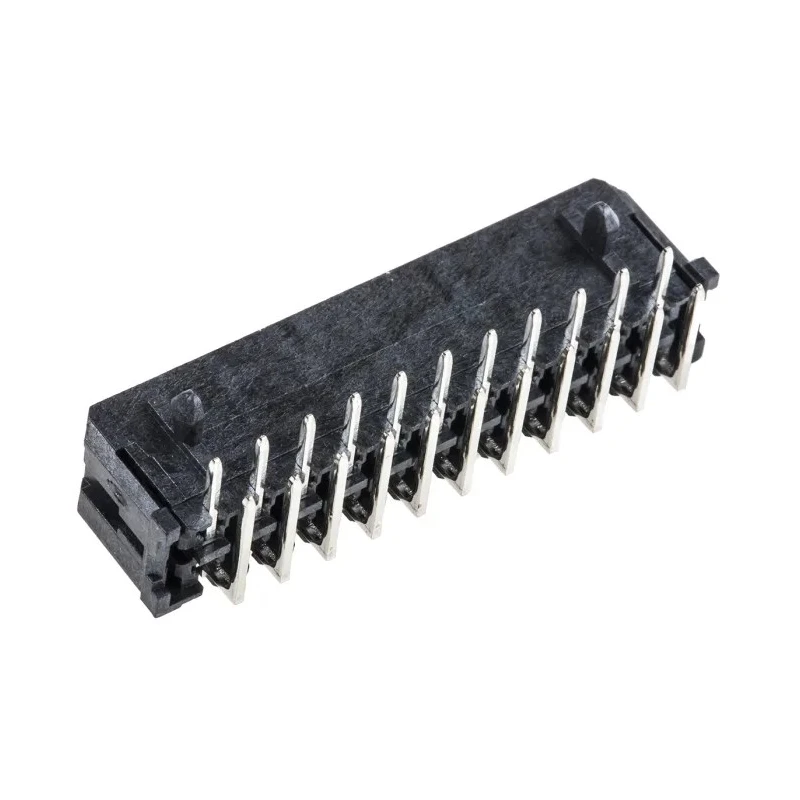

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header 22 Contacts 3 mm Pitch 2 Row Shrouded 43045-2200

Free Delivery in India | Lowest Global Shipping Charges

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header 22 Contacts 3 mm Pitch 2 Row Shrouded 43045-2200

Name: Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header 22 Contacts 3 mm Pitch 2 Row Shrouded 43045-2200
Brand: Molex
SKU: 206241
Price: 5.54 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	5A
Mount Type	Through Hole
Housing Material	High Temperature Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Tin
Number of Contacts	22
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

Designed for a compact power distribution with a 5A current rating.
Features a high temperature thermoplastic housing compliant with UL 94V-0.
Through hole mount type suitable for PCB with snap-in plastic peg locks.
Includes positive latching to prevent accidental disconnections.
Contact material is brass with tin plating for durability.
Operates reliably between -40°C to 125°C.
Suitable for various industrial and commercial electronic applications.
Dual row design with right angle orientation optimizes PCB layout.

Product Description

Molex 43045-2200 Micro-Fit 3.0 Series Right Angle Through Hole PCB Header features 22 male contacts arranged in a dual-row configuration with a 3 mm pitch. This shrouded connector provides secure wire-to-board connections with a current rating of 5A and a voltage rating of 250V, making it ideal for compact power distribution applications.

The connector housing is made from high-temperature thermoplastic material compliant with UL 94V-0 standards, withstanding up to 265°C during infrared reflow soldering. It is designed for through hole mounting on PCBs with snap-in plastic peg locks for secure attachment, combining the reliability of through hole and SMT compatibility to reduce manufacturing complexity and cost.

This Micro-Fit 3.0 connector incorporates positive latching features with locking ramps on the housing to ensure stable mating and prevent accidental disconnections. The contacts, made from brass and plated with tin, are fully isolated within the housing to minimize arcing and enhance electrical performance. The connector operates reliably in environments ranging from -40°C to 125°C, suitable for demanding industrial, military, consumer electronics, telecommunications, and medical applications.

Its right angle orientation and dual-row configuration allow for space-saving PCB designs while ensuring robust electrical connections. This PCB header is widely used in applications such as solar power systems, data communications equipment, gaming terminals, and household appliances.

Designed for compact power distribution with up to 5A current capacity. Housing is high-temperature thermoplastic compliant with UL 94V-0 for IR reflow. Snap-in plastic peg PCB locks secure connectors firmly to the PCB. Positive latching mechanism prevents accidental disconnection during use.

Brass contacts with tin plating provide reliable contact and corrosion resistance. Operates within a temperature range from -40°C to 125°C for versatile applications. Right angle dual row design optimizes PCB layout and wiring.

Suitable for industrial, military, consumer electronics, and medical purposes. Explore a comprehensive range of Molex connectors and PCB Headers with EnvMart’s industrial-grade selection to meet your power and signal distribution needs.
